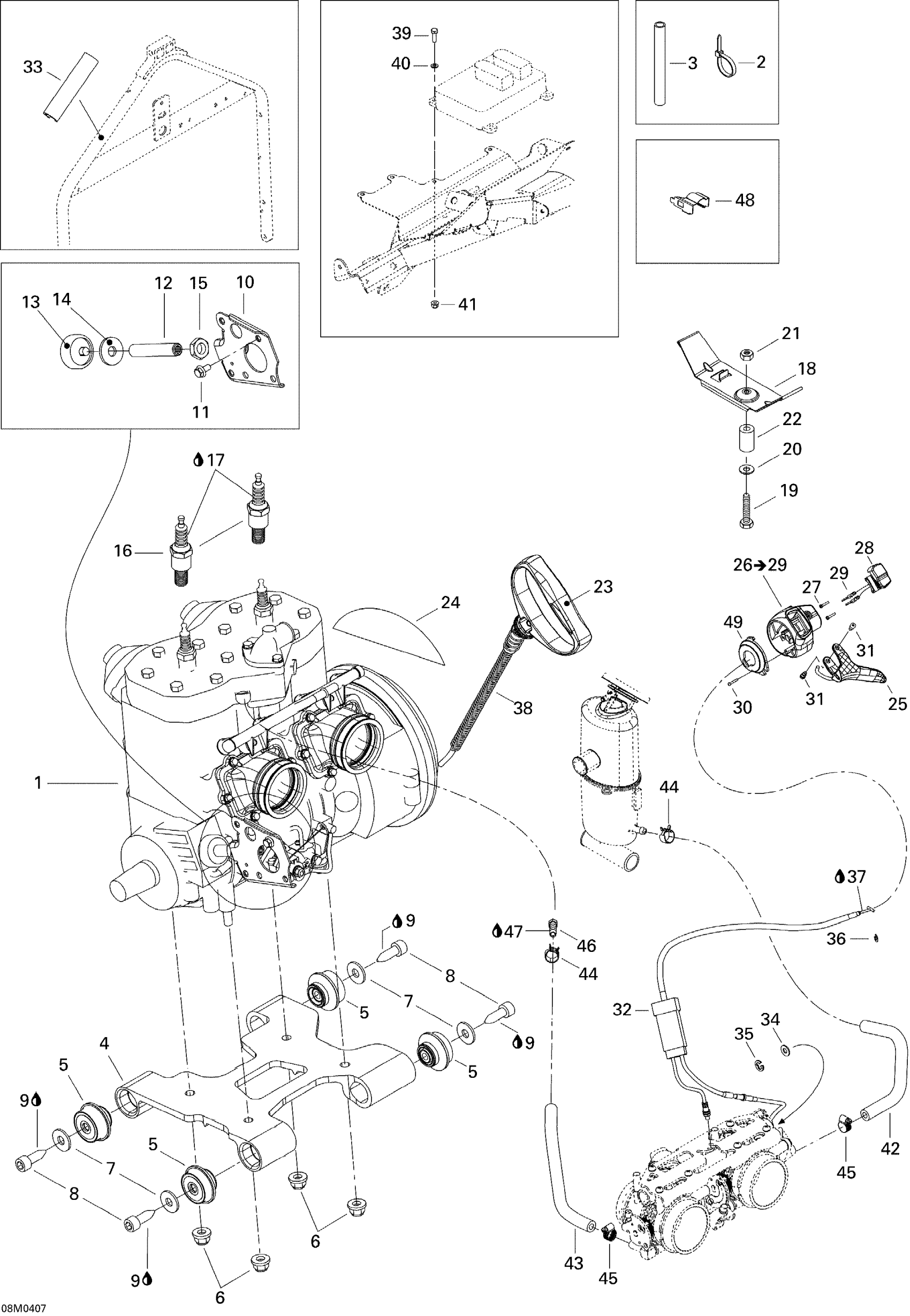

Ski-Doo GSX 600 HO SDI, 2004 Engine Assembly And Support Diagram

#

Description
Price

1

Engine 593 Ho SDI Rer

400509751

Unavailable

2

Tie Wrap 142 mm

293750002

Unavailable

3

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

4

Engine Support

512059754

Unavailable

5

Rubber Mount

512059691

$44.58

6

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Screw M10 X 30

250000094

$23.05

9

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

10

PLATE - Call your local BRP dealership

512059840

Unavailable

11

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

12

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

13

STOPPER - Call your local BRP dealership

512059610

Unavailable

14

WASHER - Call your local BRP dealership

512059057

Unavailable

15

Hex. Jam Nut M14

232170411

Unavailable

16

Spark Plug NGK BR9ECS

415128524

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

18

COIL SUPPORT - Call your local BRP dealership

512059865

Unavailable

19

Hex. Screw M6 X 45

207064544

Unavailable

20

Flat Washer 6 mm

234061410

Unavailable

21

Elastic Stop Nut M6

232561414

Unavailable

22

SPACER - Call your local BRP dealership

512059812

Unavailable

23

Starter Grip

572084400

Unavailable

24

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

25

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

26

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

27

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

28

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

29

Male Terminal

515175232

$1.49

30

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

31

Flange Screw

732601143

$4.02

32

Throttle Cable

512059765

Unavailable

33

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

34

Flat Washer 8 mm, Nylon

234081100

$1.00

35

Circlip

414753500

$0.59

36

Circlip

414274500

Unavailable

37

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

38

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

39

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

40

Flat Washer M5

234051410

Unavailable

41

Hex. Flange Elastic Nut M5

233251414

Unavailable

42

FORMED HOSE - Call your local BRP dealership

512059563

Unavailable

43

Formed Hose

512059892

Unavailable

44

Spring Clamp

414655700

Unavailable

45

Tridon Gear Clamp

293650170

$1.74

46

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

47

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

48

Heating Element Bracket

512059809

Unavailable

49

COVER - Call your local BRP dealership

512059698

Unavailable
