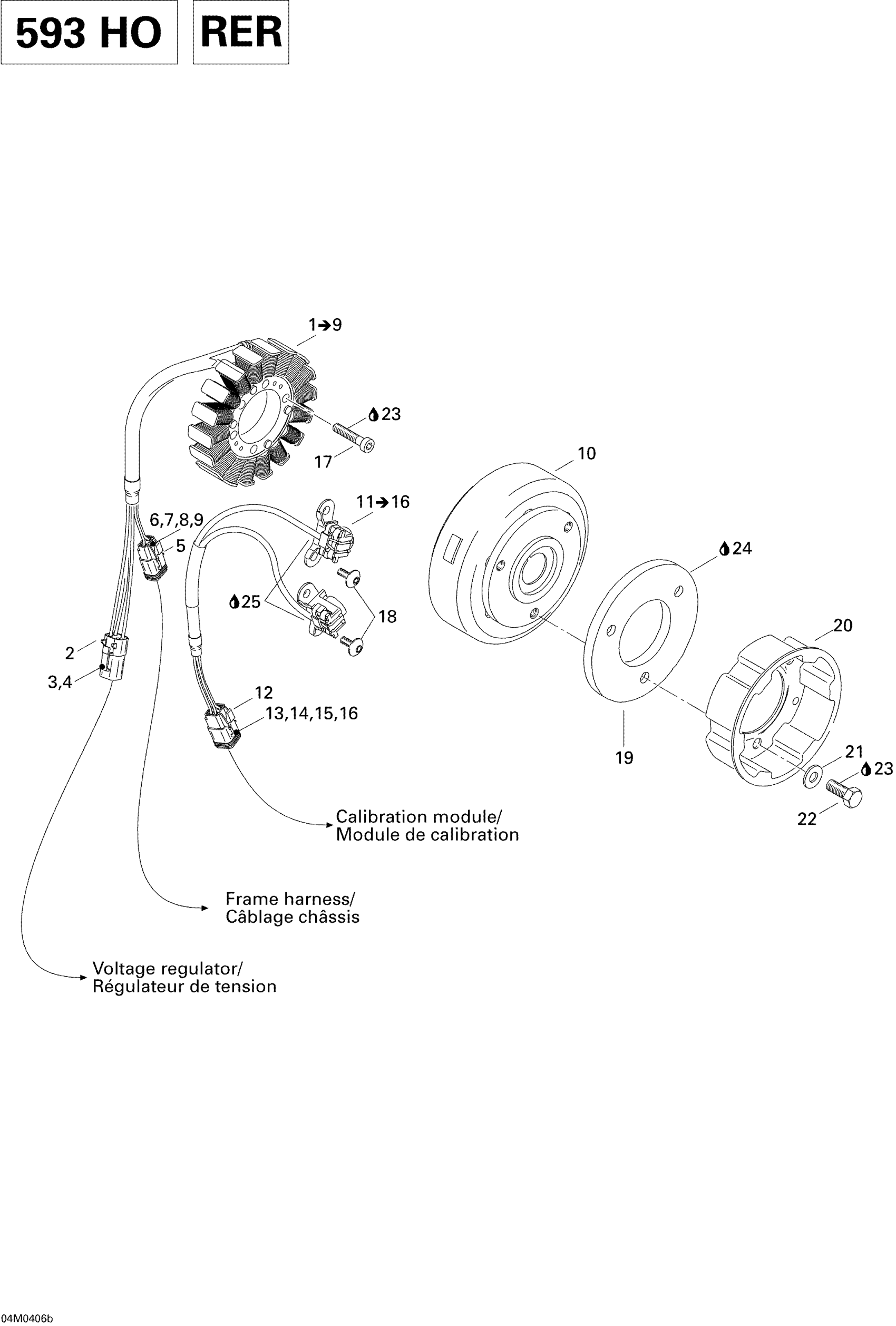

Ski-Doo GSX 600 HO, 2004 Magneto (12V, 360W) (593 HO) Diagram
#
Description
Price
1
Stator Plate A
420889905
Unavailable
2
Female Terminal Housing, 4 Circuits
278001473
Unavailable
4
Female Lock, 4 Circuits
278001474
Unavailable
5
Female Terminal Housing, 2 Circuits
515175670
Unavailable
6
Female Terminal
278000632
Unavailable
7
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
8
Female Lock, 2 Circuits
515175675
Unavailable
9
Sealing Cap
293000052
Unavailable
11
Pickup Ass'y
410922948
Unavailable
12
MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
515175672
Unavailable
13
Female Terminal
278000632
Unavailable
14
Female Terminal | Includes 2d,3a,3b,5a,10,11d
278000661
Unavailable
15
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
515175677
Unavailable
16
Sealing Cap
293000052
Unavailable
17
Socket Head Screw M6 X 30
205063044
Unavailable
19
Flywheel
420866756
Unavailable
20
Starting Pulley | Manual Start This part replaces 420852532.
420852533
Unavailable
24
Sealant Loctite 648
219703000
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
