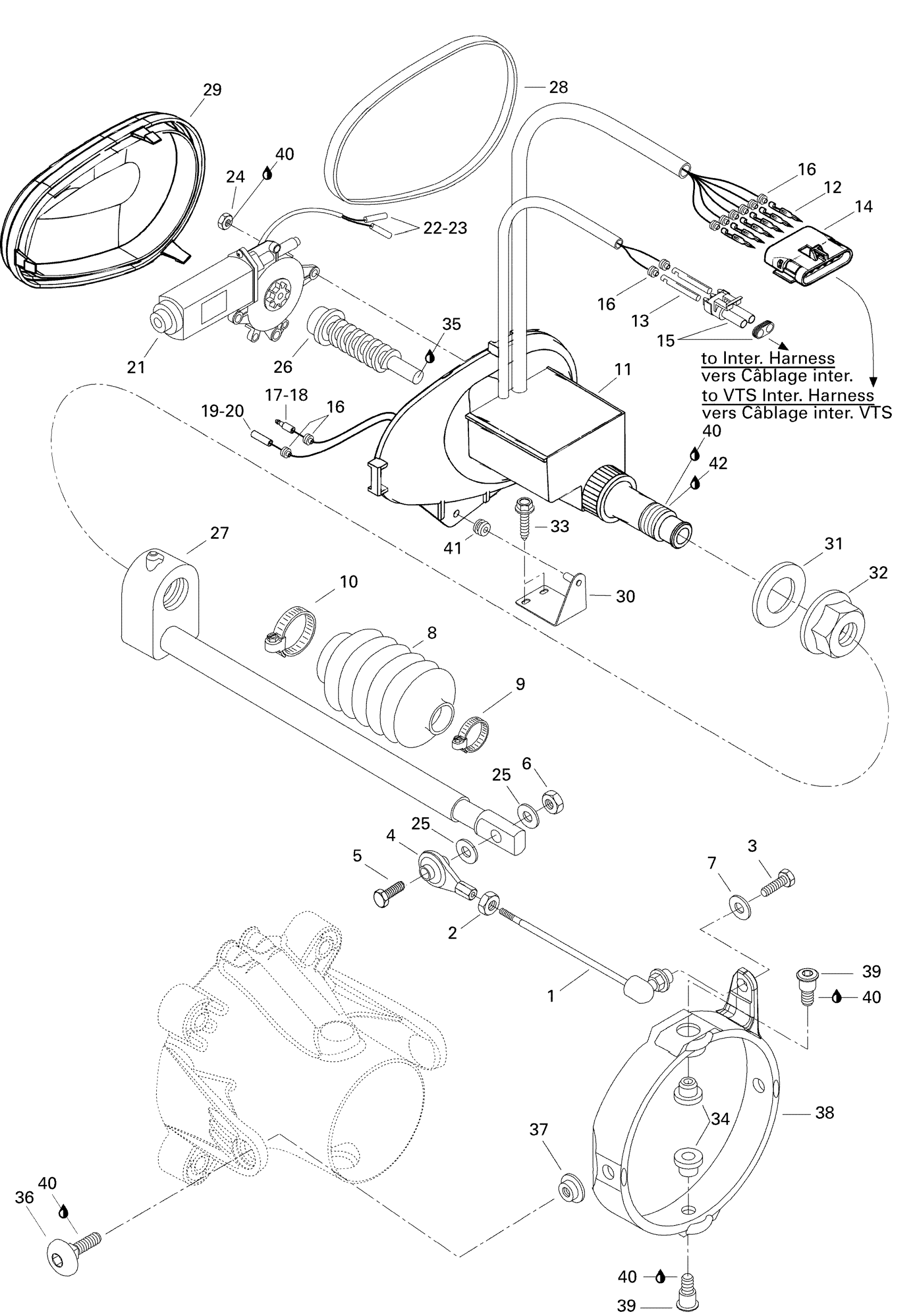

Sea-doo GSX, 5620, 1996 Trim, Electrical Diagram

#

Description
Price

1

Moulding Rod

271000580

Unavailable

2

Hex. Nut

212100005

$0.90

3

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

4

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

5

Hex. Screw M6 X 35

207063560

$1.85

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

Flat Washer 5 mm, Stainless

234052600

$0.64

8

Protector Hose

271000459

$12.23

9

Tridon Gear Clamp

293650171

$2.46

10

Tridon Gear Clamp

293650051

$3.61

11

V.T.S Box | Includes 11 to 20

278000455

Unavailable

12

Male Terminal | XT Models

278000222

$2.55

13

Female Terminal

278000223

$2.55

14

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

15

Male Connector, 2 Circuits

278000220

$11.02

16

Wire Seal

278000218

$3.48

17

Male Terminal

278000230

$3.48

18

Insulated Sheath

278001008

$3.10

19

Female Terminal | DS 650 X

278001009

$2.55

20

Insulated Sheath

278001007

$3.12

21

Windshield Motor

278002579

$184.57

22

Insulation Sheath

278000231

$4.13

23

Male Terminal

278000230

$3.48

24

Hex. Elastic Stop Nut M6

232561600

$0.92

25

Stainless Flat Washer M6

234061600

$0.25

26

Worm Screw

278000428

$11.53

27

Sliding Block Ass’y

278001698

$34.42

28

GASKET - Call your local BRP dealership

293200027

Unavailable

29

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

30

V.T.S. SUPPORT ASSY - Call your local BRP dealership

292000250

Unavailable

31

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

32

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

33

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

34

Venturi Bushing

293900007

$3.71

35

Synthetic Grease, 400 G

293550010

Unavailable

36

Screw

211000007

Unavailable

37

Venturi Bushing

271000321

$6.18

38

Trimming Ring

271000578

Unavailable

39

Socket Head Screw M8 x 10

211000089

Unavailable

40

Loctite 243, 10 ml

293800060

$20.77

41

GROMMET - Call your local BRP dealership

293720015

Unavailable

42

Was 293800041 Loctite Primer 7649

219704458

$41.99
