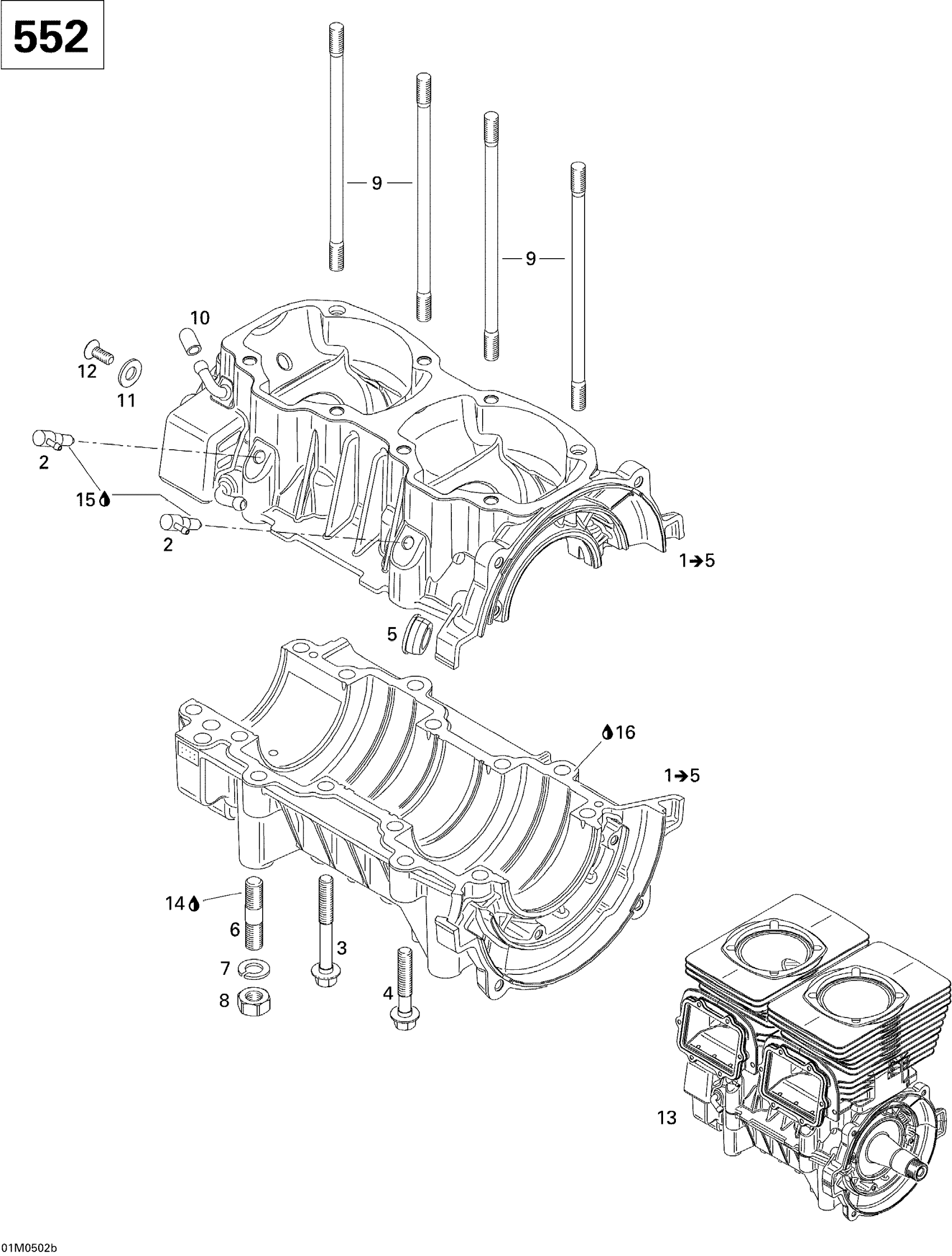

Ski-Doo GSX 550F, 2005 Crankcase (552) Diagram
#
Description
Price
1
Crankcase Ass'y | Includes 1 to 4
420890237
Unavailable
3
Hex. Collar Screw M8 X 68.5 This part replaces 420640951.
420640952
Unavailable
4
Hex. Collar Screw M8 x 45
420640432
Unavailable
6
STUD M10 X 29 - Call your local BRP dealership
420641834
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Stud M8 X 173.5
420840556
Unavailable
5
Cable Grommet
420860962
Unavailable
10
CAP - Call your local BRP dealership
420960772
Unavailable
11
Flat Washer 8.4 mm
420250315
Unavailable
12
Taptite Flat Head Screw M5 x 12 This part replaces 420640896.
420640897
Unavailable
13
Short Block 552
420055206
Unavailable
13
REBUILD-CYLINDER-SHORT BLOCK 552 - Call your local BRP dealership
421000638
Unavailable
15
Sealant Loctite 648
219703000
Unavailable
