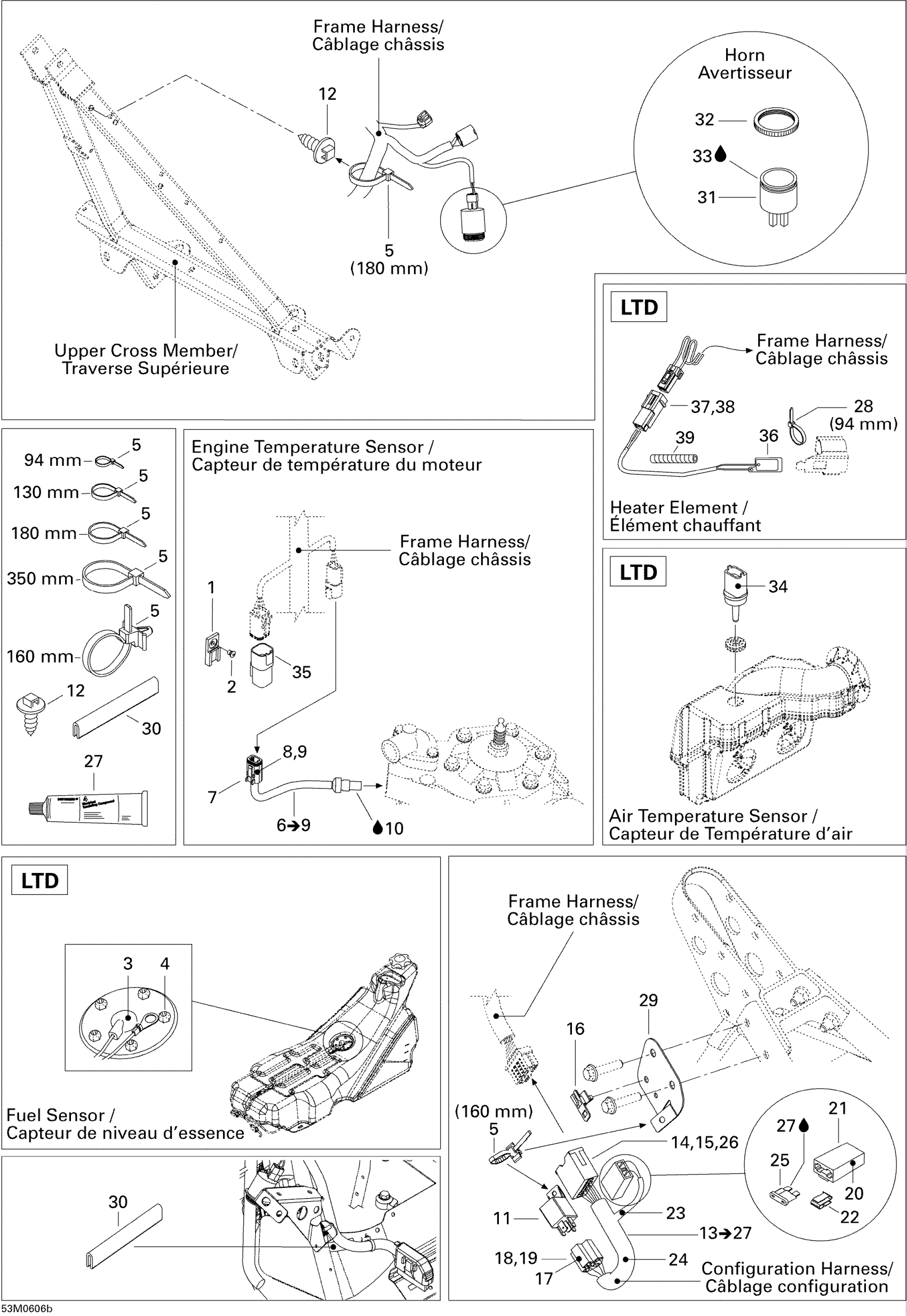

Ski-Doo GSX 500SS, 2006 Electrical Accessories 500, 2 Diagram
#
Description
Price
3
Not Available As Spare Parts
XXX
Unavailable
4
Not Available As Spare Parts
XXX
Unavailable
5
Tie Wrap 142 mm
293750002
Unavailable
5
Tie-Rap 173 mm
293750009
Unavailable
6
Temperature Sensor This part replaces 515176043.
515177835
Unavailable
8
Female Terminal
278000632
Unavailable
9
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
515175677
Unavailable
10
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
11
Relay | DS 650 X
710010053
Unavailable
13
Configuration Harness Ass'y | Includes 13 to 27
515175721
Unavailable
15
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
18
Female Terminal
561503100
Unavailable
19
Female Terminal
561503100
Unavailable
21
Fuse Holder
409004000
Unavailable
24
Was 409901800 Tubing (13 mm)
219704400
Unavailable
26
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
515175720
Unavailable
27
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
28
Not Available As Spare Parts
XXX
Unavailable
29
HARNESS SUPPORT - Call your local BRP dealership
515176020
Unavailable
30
Was 271000110 Protection Trim
219704353
Unavailable
31
HORN - Call your local BRP dealership
515176035
Unavailable
33
Silicone Sealant 51388, 300 ml
296000309
Unavailable
34
Not Available As Spare Parts
XXX
Unavailable
36
Not Available As Spare Parts
XXX
Unavailable
37
Not Available As Spare Parts
XXX
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
39
Not Available As Spare Parts
XXX
Unavailable
