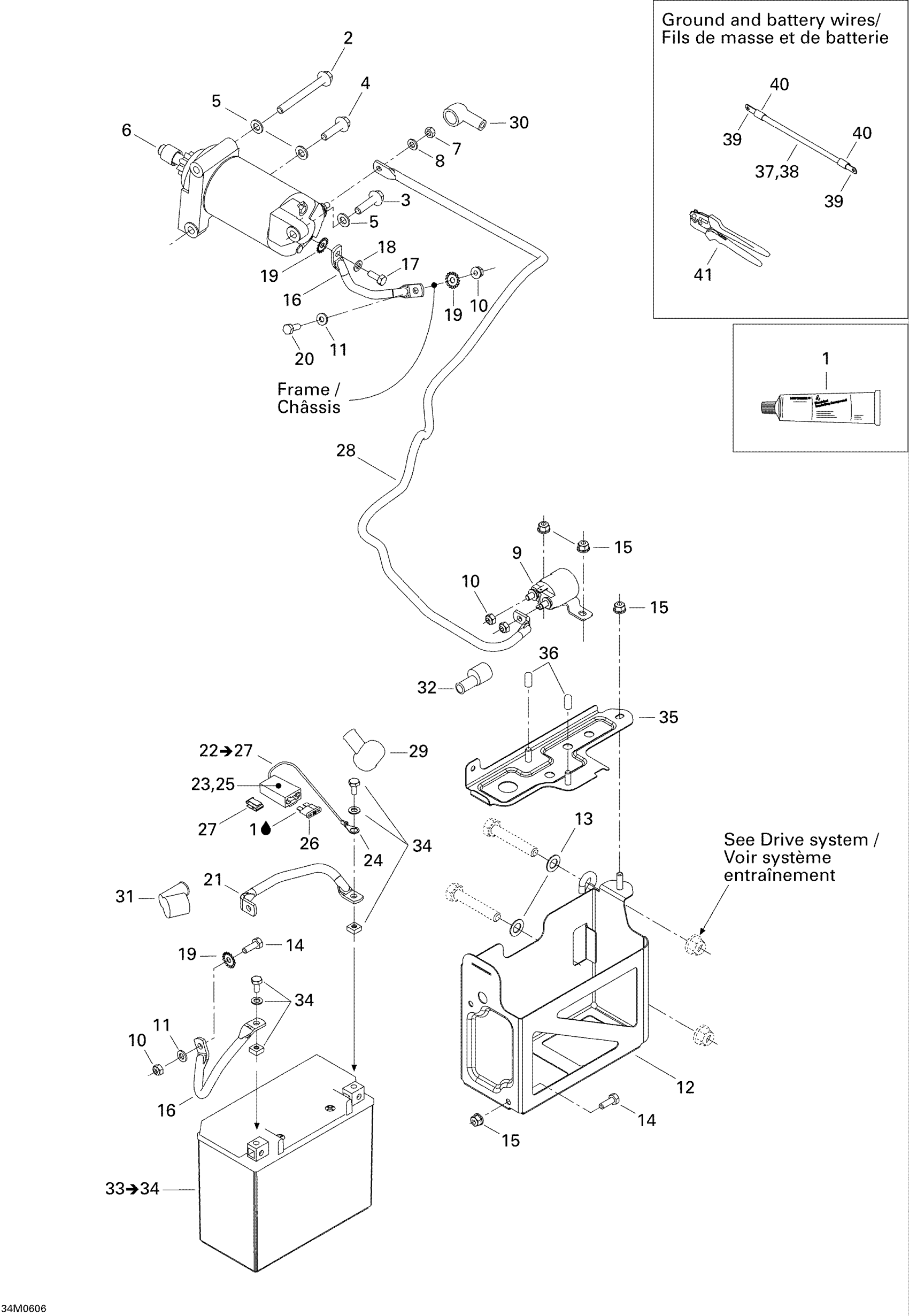

Ski-Doo GSX 500SS, 2006 Battery And Starter Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

2

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

Unavailable

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

5

Flat Washer With Teflon 8 mm

250200008

Unavailable

6

Electric Starter Ass'y

515176133

Unavailable

7

Elastic Stop Nut M6

232561414

Unavailable

8

Flat Washer 6 mm

234061410

Unavailable

9

Starter Relay

515176011

Unavailable

10

Elastic Stop Nut M6

232561414

Unavailable

11

Flat Washer 6 mm

234061410

Unavailable

12

Battery Support Black

515176230

Unavailable

13

Washer

503175800

$3.26

14

Hex. Screw M6 X 18

207161844

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

16

Ground Wire

515175749

$19.20

17

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

18

Flat Washer 6 mm

234061410

Unavailable

19

Lock Washer Serrated M6

250200041

Unavailable

20

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

21

Battery Wire

515175904

Unavailable

22

Battery Fuse Wire | Includes 21 to 22

515175489

Unavailable

23

Female Terminal

409004200

Unavailable

24

Open Barrel

278000992

$1.79

25

Fuse Holder

409004000

Unavailable

26

Fuse, 30 Amperes

410917200

$3.22

27

CLIP - Call your local BRP dealership

409014200

$4.23

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Protection Cap

570151000

$18.43

30

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

31

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

32

Protector Cap | XT

515175919

$16.89

33

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

34

Battery Bolt Kit

250000282

$2.95

35

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

36

Cap

515176141

Unavailable

37

Ground Cable Battery, no 6, meter)

278001680

Unavailable

38

Cable Battery, no 6, meter)

278001690

Unavailable

39

Terminal 45°, Small Hole

278001682

Unavailable

39

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

39

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

39

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

39

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

39

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

39

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

39

Terminal 30°, 2 Holes

278001776

Unavailable

40

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

41

Crimp Plier

529035730

Unavailable
