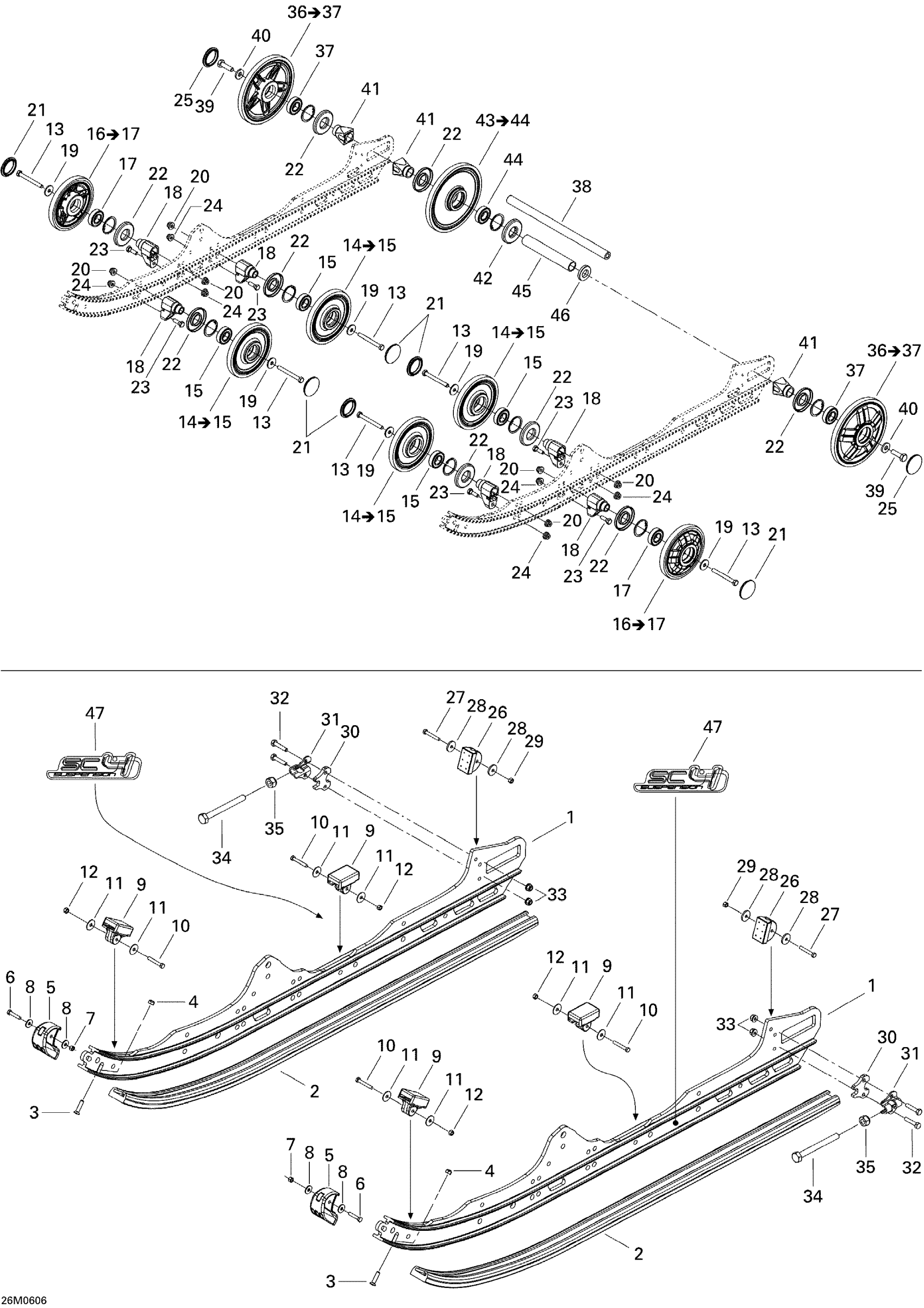

Ski-Doo GSX 500SS, 2006 Rear Suspension Diagram

#

Description
Price

1

RUNNER 121 - Call your local BRP dealership

503191224

Unavailable

2

Slider Shoe

503190573

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

Runner Protector

503191137

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

Unavailable

8

Washer | DS 650 X

391301600

Unavailable

9

Rubber Stopper

503190576

Unavailable

10

Hex. Screw M5 X 30

207053044

Unavailable

11

Washer

250200016

Unavailable

12

Elastic Stop Nut M5

232551414

Unavailable

13

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

14

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

Unavailable

15

Ball Bearing | Package-STD

503190396

Unavailable

16

Wheel 141 With Pattern Ass'y, Full Moon

503191313

Unavailable

17

Ball Bearing | Package-STD

503190396

Unavailable

18

Support

503190580

Unavailable

19

Washer

211200041

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

Unavailable

21

Wheel Cap

570063600

Unavailable

22

Labyrinth Seal

503190434

Unavailable

23

Hex. Screw M8 X 25

207182544

Unavailable

24

Hex. Flange Elastic Nut M8

233281414

Unavailable

25

Wheel Cap

570063600

Unavailable

26

Rubber Stopper

503191291

Unavailable

27

Hex. Screw M5 X 30

207053044

Unavailable

28

Washer

250200016

Unavailable

29

Elastic Stop Nut M5

232551414

Unavailable

30

Spacer

503193250

$13.95

31

Tensioner

503192583

$5.85

32

Hex. Screw M6 X 30

207063044

Unavailable

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

34

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

35

Elastic Locking Nut M10 X 1.5

233601416

$1.68

36

WHEEL 180, FULL MOON - Call your local BRP dealership | Includes 34 to 35

503190752

Unavailable

37

Ball Bearing | Package-STD

503190396

Unavailable

38

Rear Axle

503190429

$59.97

39

Hex. Screw With Nylon

250000019

Unavailable

40

Washer

503190439

$5.82

41

Rear Wheel Spacer

503190428

$6.06

42

Labyrinth Seal

503190682

Unavailable

43

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

Unavailable

44

Ball Bearing | Package-STD

503190396

Unavailable

45

Spacer

503196317

Unavailable

46

Washer

503190432

Unavailable

47

SC4 Decal

516002615

Unavailable
