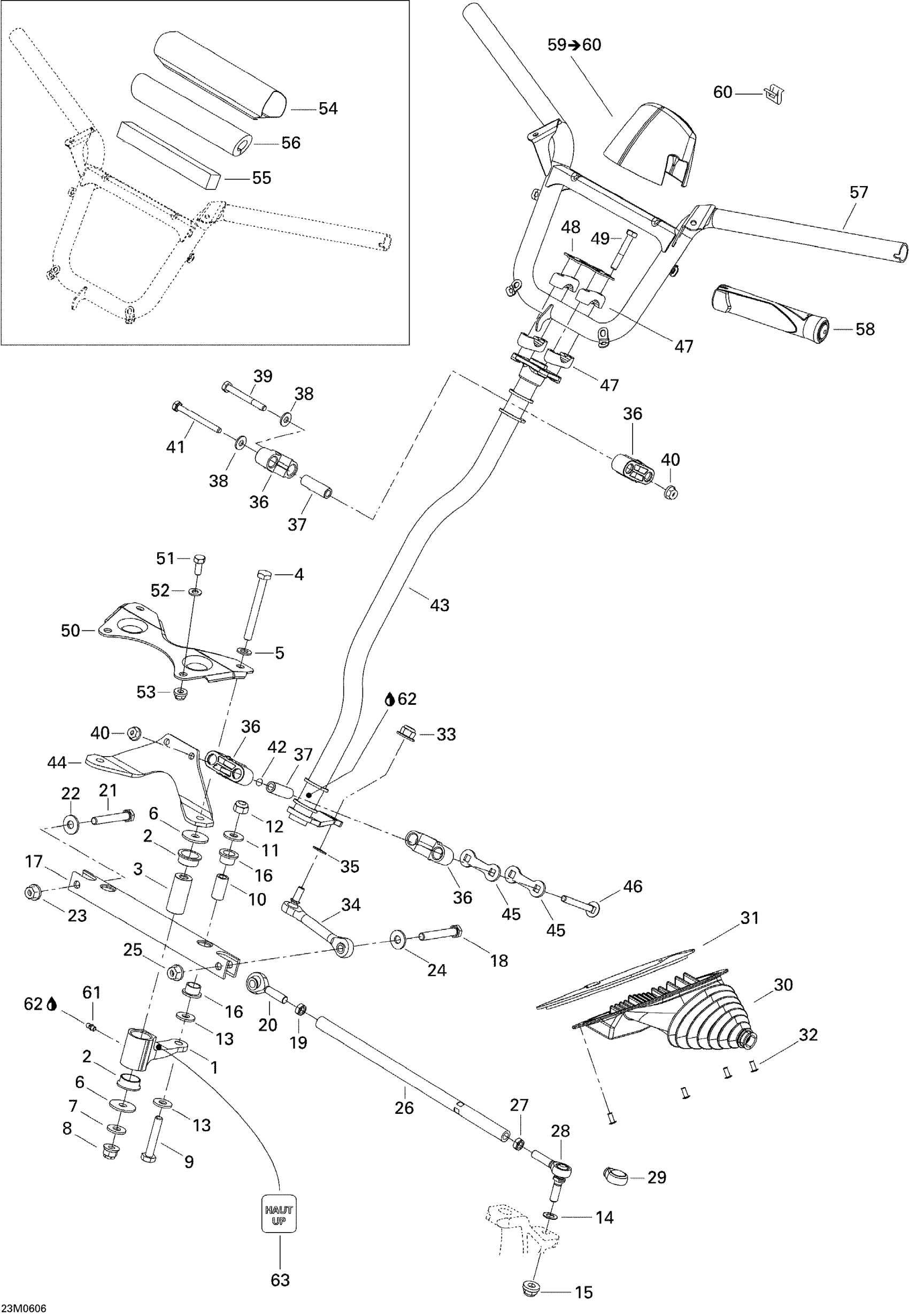

Ski-Doo GSX 500SS, 2006 Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151627

Unavailable

1

LH Swivel Arm

506151628

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

$5.52

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.20

6

Washer 10 mm

506150000

Unavailable

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

Unavailable

9

Hex. Screw M10 X 55

207005544

$1.85

10

Pivot Bar

506151273

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

250200032

Unavailable

14

Washer

503175800

$3.26

15

Hex. Flange Elastic Nut M10

250100165

Unavailable

16

Swivel Bushing

503191555

Unavailable

17

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

18

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

19

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

20

LH THREAD BALL JOINT - Call your local BRP dealership

506152018

Unavailable

21

Hex. Screw M10 X 45

207004544

Unavailable

22

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

23

Hex. Flange Elastic Nut M10

233201414

$1.26

24

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

25

Hex. Flange Elastic Nut M10

233201414

$1.26

26

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

27

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

28

BALL JOINT - Call your local BRP dealership

506152212

Unavailable

29

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

30

RH Tie-Rod Cap

506151725

Unavailable

30

LH Tie-Rod Cap

506151726

Unavailable

31

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

31

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

32

Avex Rivet

390909100

$0.29

33

Hex. Flange Elastic Nut M10

250100165

Unavailable

34

BALL JOINT, DOUBLE - Call your local BRP dealership

506151621

Unavailable

35

Washer

503175800

$3.26

36

Housing Half

506150400

Unavailable

37

Housing Bushing

506150500

Unavailable

38

Washer

503189157

$3.20

39

Hex. Screw M8 X 70

207087044

Unavailable

40

Hex. Flange Elastic Nut M8

233281414

Unavailable

41

Hex. Screw M8 X 80

207088044

Unavailable

42

O-RING - Call your local BRP dealership

506151140

Unavailable

43

Main Tube

506151334

Unavailable

44

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

45

Stopper Plate

506150600

Unavailable

46

Carriage Bolt M8 X 70

207787044

Unavailable

47

Steering Support

709400919

Unavailable

48

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

49

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

50

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

51

Hex. Screw M8 X 25

207182544

Unavailable

52

Flat Washer 8 mm

234081410

Unavailable

53

Hex. Flange Elastic Nut M8

233281414

Unavailable

54

Steering Cover

506152051

Unavailable

55

Steering Cover Foam Insert

506151861

Unavailable

56

Steering Cover Foam

506152053

Unavailable

57

HANDLE BAR - Call your local BRP dealership

506152071

Unavailable

58

Handle Grip

506152057

Unavailable

59

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

Unavailable

60

Edge Clip

517302785

Unavailable

61

Grease Fitting

408200700

Unavailable

62

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

63

Upper Decal

516001750

Unavailable
