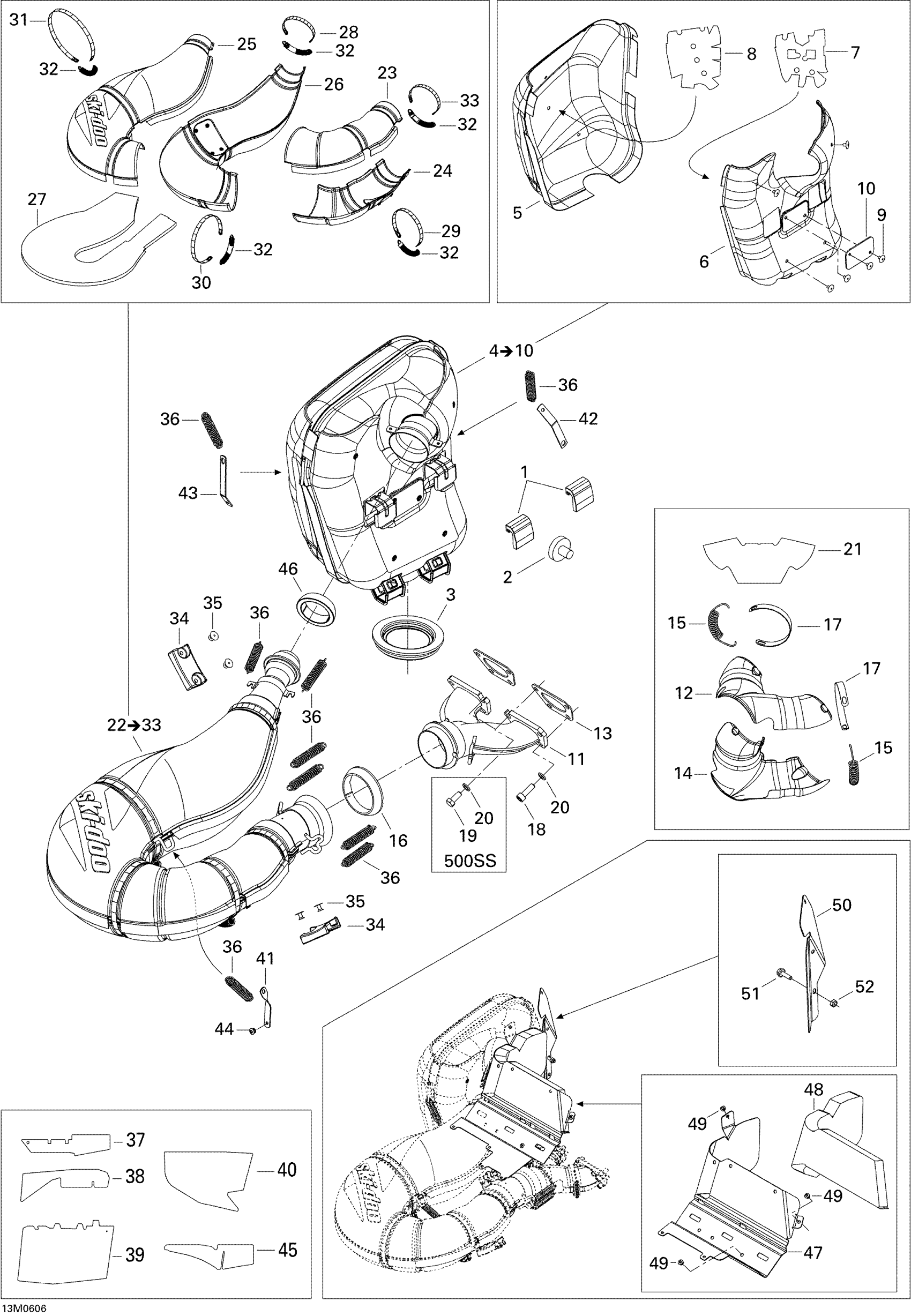

Ski-Doo GSX 500SS, 2006 Exhaust System 500 Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

$13.95

2

Rubber Bumper

514053654

$49.20

3

Exhaust Grommet

514053394

Unavailable

4

MUFFLER ASS'Y - Call your local BRP dealership | Includes 4 to 11

514054121

$599.97

5

RH HEAT SHIELD - Call your local BRP dealership

514054122

$36.89

6

LH Heat Shield

514053585

Unavailable

7

LH INSULATING WOOL - Call your local BRP dealership

514053590

$12.28

8

RH INSULATING WOOL - Call your local BRP dealership

514053589

$13.82

9

Pop Rivet 3/16”

390910000

$0.48

10

Reinforcement

514053429

Unavailable

11

Exhaust Manifold

420673131

$271.51

12

UPPER ENVELOPPE, EXHAUST MANIFOLD - Call your local BRP dealership

514053831

$12.28

13

Gasket

420931610

$11.38

14

LOWER ENVELOPPE, EXHAUST MANIFOLD - Call your local BRP dealership

514053830

$11.51

15

Spring

514053643

$6.20

16

Exhaust Gasket

514053487

Unavailable

17

RETAINING STRAP - Call your local BRP dealership

514053603

$7.66

18

Socket Head Screw M8 X 25

205082544

Unavailable

19

Hex. Screw M8 X 20

207182044

$0.61

20

Washer

514053837

$4.28

21

Insulating Wool

514053284

Unavailable

22

Tuned Pipe Ass'y | Includes 23 to 34

514053732

Unavailable

23

Upper Front Half Envelope

514053609

Unavailable

24

Lower Front Half Envelope

514053610

Unavailable

25

UPPER REAR HALF ENVELOPE - Call your local BRP dealership

514053612

Unavailable

26

LOWER REAR HALF ENVELOPE - Call your local BRP dealership

514053613

$36.89

27

INSULATING WOOL - Call your local BRP dealership

514053584

$14.88

28

RETAINING STRAP - Call your local BRP dealership

514053437

$7.66

29

RETAINING STRAP - Call your local BRP dealership

514053500

$7.66

30

RETAINING STRAP - Call your local BRP dealership

514053534

$9.20

31

RETAINING STRAP - Call your local BRP dealership

514053535

$9.20

32

Spring

514053643

$6.20

33

Retaining Strap

514053536

$12.58

34

BUMPER - Call your local BRP dealership

514053352

$14.58

35

Pop Rivet 3/16"

293150103

Unavailable

36

Spring

415107100

$6.20

37

REFLECTIVE SHEET - Call your local BRP dealership

514053560

$9.20

38

Reflective Sheet

514053622

Unavailable

39

REFLECTIVE SHEET - Call your local BRP dealership

514053954

$12.28

40

REFLECTIVE SHEET - Call your local BRP dealership

514053562

$9.20

41

SPRING BRACKET - Call your local BRP dealership

514053955

$6.89

42

SPRING BRACKET - Call your local BRP dealership

514053725

$6.18

43

Spring Bracket

514053393

$11.58

44

Pop Rivet 3/16"

293150103

Unavailable

45

REFLECTIVE SHEET - Call your local BRP dealership

514053673

$7.66

46

Exhaust Gasket

514053812

$25.35

47

ACOUSTIC PLATE - Call your local BRP dealership

514053956

Unavailable

48

ACOUSTIC FOAM - Call your local BRP dealership

514053967

Unavailable

49

Pop Rivet 3/16"

390402200

$0.26

50

Not Available As Spare Parts

XXX

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable
