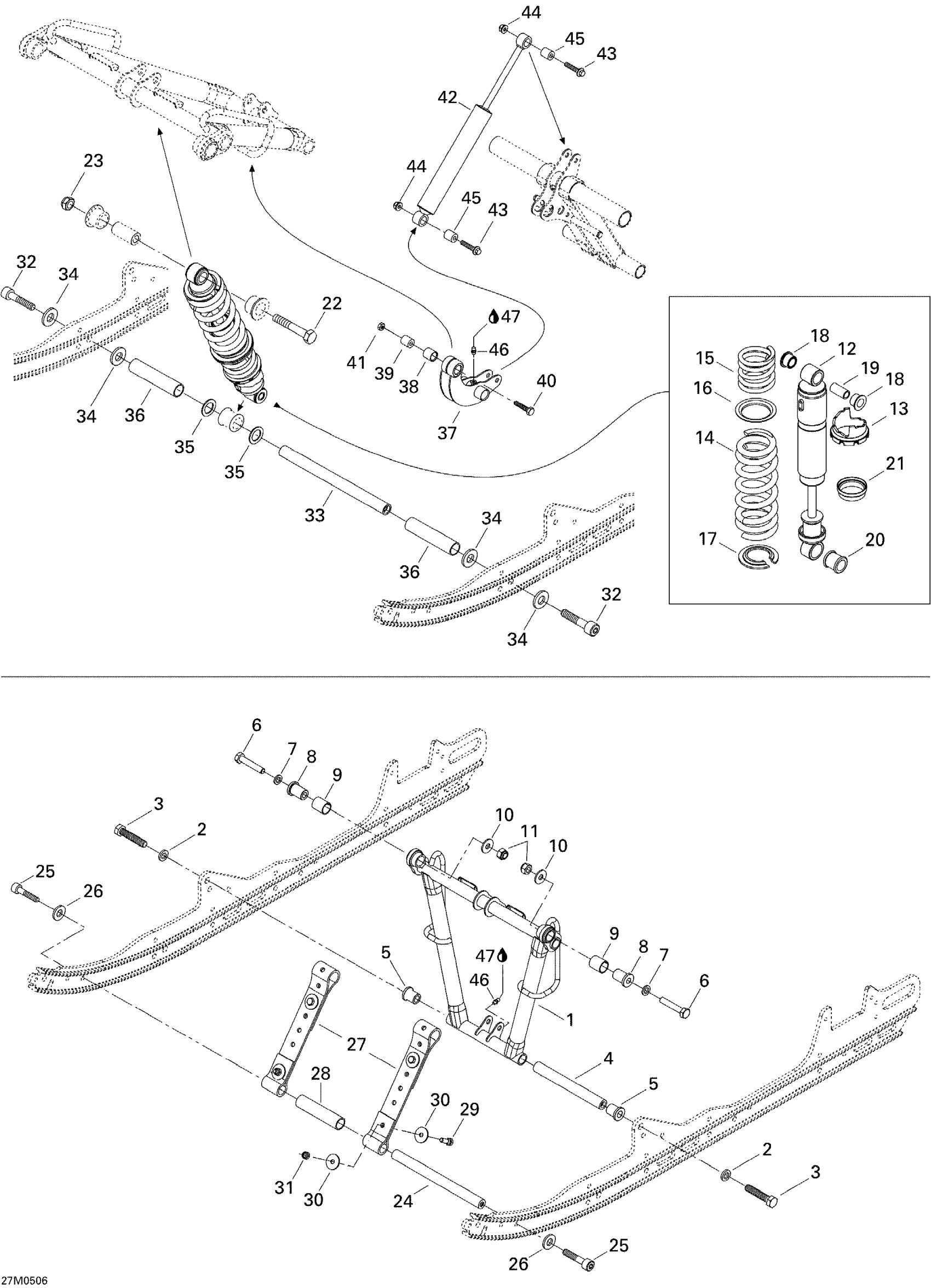

Ski-Doo GSX 500SS, 2005 Front Arm 500SS Diagram

#

Description
Price

1

Front Arm

503191071

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$1.85

7

Washer

732900049

Unavailable

8

EXTENSION - Call your local BRP dealership

503190373

Unavailable

9

EXTENDED BUSHING - Call your local BRP dealership

503190474

Unavailable

10

Flat Washer M10 | 4X4

250200014

$1.17

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Center Shock | Europe

503190663

Unavailable

13

Adjustment Cam

505073625

Unavailable

14

SPRING - Call your local BRP dealership

503190478

Unavailable

15

SPRING - Call your local BRP dealership

503190476

Unavailable

16

Spring Guide

503191872

Unavailable

17

Spring Stopper

503189912

$16.89

18

Urethane Bushing

503189117

Unavailable

19

Bushing | Includes 240d to 240d1

503189282

Unavailable

20

Bushing

503189271

Unavailable

21

Spring Spacer

503190297

Unavailable

22

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

23

Elastic Locking Nut M10 X 1.5

233601416

$1.68

24

AXLE - Call your local BRP dealership

503189562

Unavailable

25

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

26

Washer

503189564

Unavailable

27

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

28

Spacer

503189265

$4.66

29

Hex. Flange Screw M8 X 25

207682544

$0.90

30

Flat Washer

224081301

$0.86

31

Hex. Flange Elastic Nut M8

233281414

Unavailable

32

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

33

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

34

Washer

503189276

Unavailable

35

Washer

503189273

Unavailable

36

SPACER - Call your local BRP dealership

503189274

Unavailable

37

Rocker

503189845

Unavailable

38

Rocker Axle

503189388

Unavailable

39

CUSHION - Call your local BRP dealership

503189626

Unavailable

40

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

41

Elastic Locking Nut M10 X 1.5

233601416

$1.68

42

Rear Shock | Sport This part replaces 503190303.

503191021

Unavailable

43

Hex. Flange Screw M8 X 40

207684044

Unavailable

44

Hex. Flange Elastic Nut M8

233281414

Unavailable

45

Bushing

414936000

Unavailable

46

Grease Fitting

408200700

Unavailable

47

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
