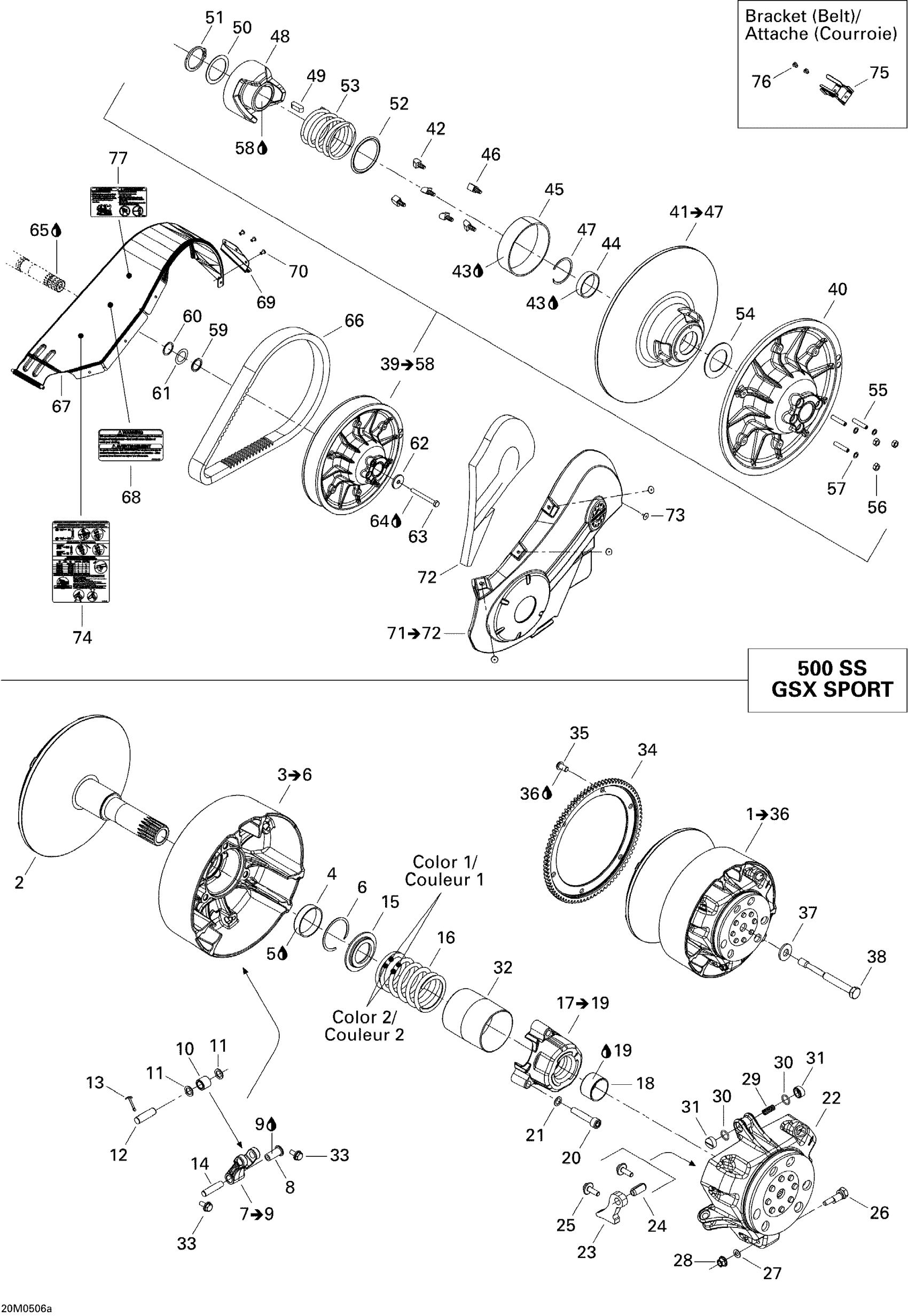

Ski-Doo GSX 500SS, 2005 Driven Pulley GSX 500 SS Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$214.90

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$188.03

4

Bushing

417222758

$20.12

5

Loctite 609, 10 ml

413703100

$23.85

6

Circlip

293370037

$2.93

7

Lever | Includes 10f to 10g

417222671

$46.24

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$23.85

10

Roller

417222947

$19.37

11

Stopper Washer

417004302

$15.64

12

Pin

417004308

$12.79

13

Cotter Pin

250400060

$1.84

14

Lever Axle

417223164

$4.12

15

Spring Seat

417222312

$8.03

16

Spring, Violet/pink

414949500

$38.78

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$44.75

18

Bushing

417009204

$15.64

19

Loctite 609, 10 ml

413703100

$23.85

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

21

Lock Washer 8 mm

250200009

$2.00

22

Governor Cup

417222213

Unavailable

23

Ramp 412

417222515

$35.79

24

Spring Pin M10 X 22

250400050

$2.73

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.75

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$3.75

28

Hex. Flange Nut M6

233061414

$1.54

29

Spring

417005700

$4.51

30

O-Ring

732401030

$0.93

31

Slider Shoe This part replaces 420460045.

417223021

$5.99

32

Guard

417009205

$16.39

33

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.75

34

Ens This part replaces 861790500.

861791800

$191.01

35

Hex. Screw M8 X 16

236281684

$3.88

36

Loctite 271, 10 ml

293800005

$23.85

37

Spring Washer 14 mm

250200006

$6.66

38

Drive Pulley Bolt

417120000

$61.91

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Fixed Flange

417126499

Unavailable

41

Sliding Flange Ass'y | Includes 41 to 47

417126763

Unavailable

42

Slider Shoe, Front

417126538

Unavailable

43

Loctite 609, 10 ml

413703100

$23.85

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Bushing

417126562

Unavailable

46

SLIDER SHOE, REAR - Call your local BRP dealership

417126539

Unavailable

47

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

48

Cam

417126747

Unavailable

49

Key

414820800

Unavailable

50

Washer

417126555

Unavailable

51

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

52

Abutment Swivel

417126771

Unavailable

53

SPRING, GREEN/GREEN - Call your local BRP dealership

417126801

Unavailable

54

Thrust Washer

504141900

Unavailable

55

Socket Set Screw M6 X 30

206263044

Unavailable

56

Hex. Nut M6

232061414

$0.51

57

WASHER - Call your local BRP dealership

420245370

Unavailable

58

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

59

Spacer

417300252

$5.01

60

Spacer

417300265

$2.06

60

Spacer

504149100

$10.87

61

Shim

504112000

$5.87

62

Strength Washer

517302322

$10.76

63

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

64

Loctite 243, 10 ml

293800060

$21.49

65

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

66

Drive Belt

417300586

$138.03

67

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

68

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

69

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

70

Avex Rivet

390909200

$0.28

71

Side Protector Ass'y | Includes 49 to 50

417300248

Unavailable

72

Foam

417300246

Unavailable

73

Pop Rivet 3/16"

293150103

$0.52

74

Decal, Suspension Adjustment

516001639

Unavailable

75

Bracket

517281905

$14.90

76

Pop Rivet 3/16"

390402200

$0.30

77

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable
