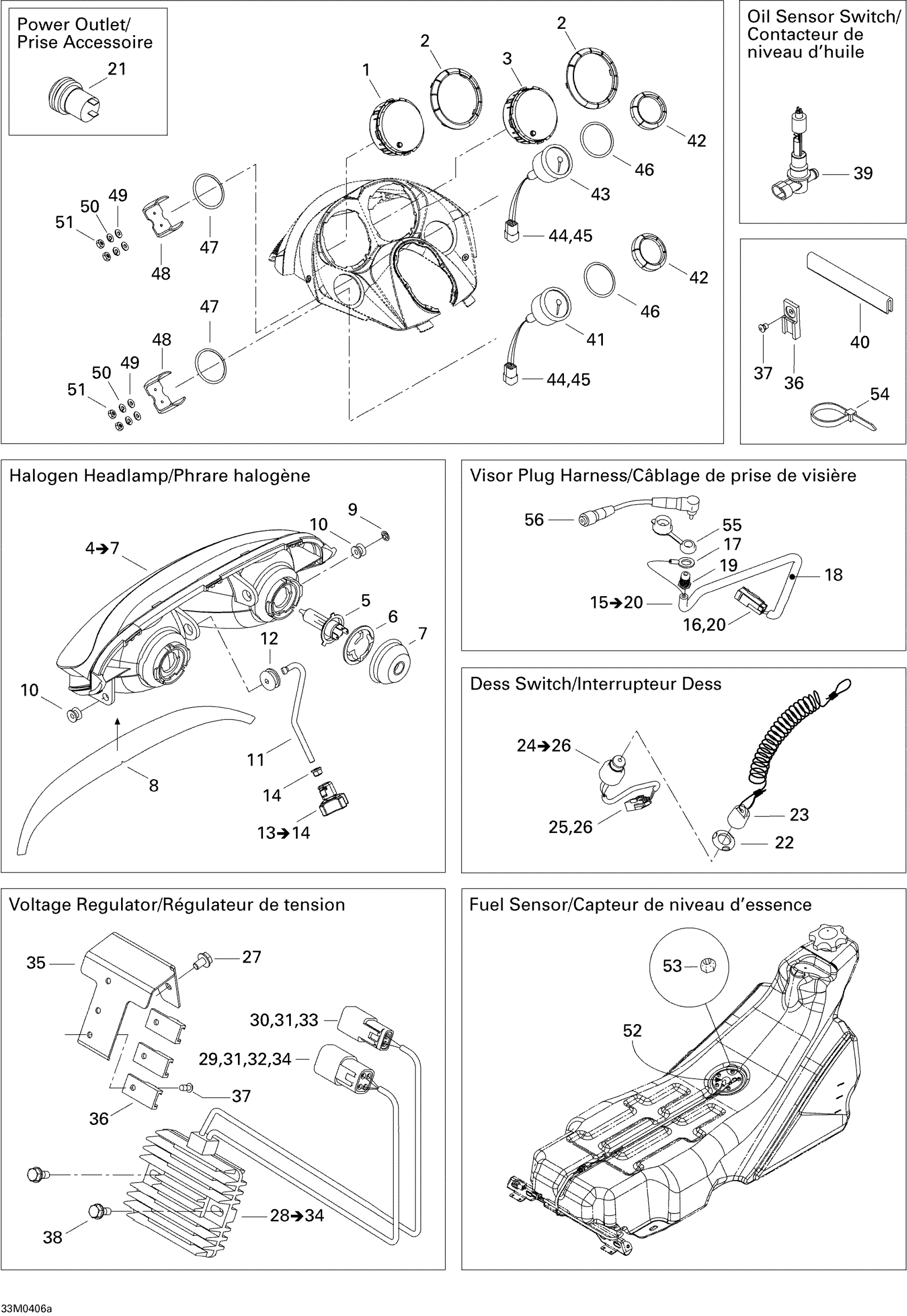

Ski-Doo GSX 500SS, 2004 Electrical System 1 Diagram

#

Description
Price

1

Speedometer

515176001

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

Unavailable

3

Tachometer

515176072

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

9

Push Nut

732610072

Unavailable

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

15

Visor Harness

515177837

$32.28

16

Male Terminal

515175232

$1.49

17

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

18

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

19

Visor Plug

415096100

Unavailable

20

Male Terminal Housing, 2 Circuits

515175654

$7.48

21

Outlet Power Kit, 12 Volts

861507200

Unavailable

22

Safety Nut (DESS Switch)

278002963

$2.72

23

DESS

515178284

Unavailable

24

DESS Switch

515177249

Unavailable

25

Male Terminal

515175232

$1.49

26

Male Housing, 3 Circuits

515175494

$15.35

27

Hex. Forming Screw M6 X 10

210261050

$1.42

28

Voltage Regulator

515175968

Unavailable

29

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

30

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

31

Male Terminal

515175568

$7.48

32

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

33

Male Lock, 2 Circuits

278001672

$3.02

34

Sealing Cap

293000052

Unavailable

35

Housing Support

515175916

Unavailable

36

Clip

270000141

$8.33

37

Avdel Rivet 3/16"

293150037

$0.47

38

Hexagonal Head Screw

210262050

$1.74

39

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

40

TRIM - Call your local BRP dealership

509000263

Unavailable

41

Temperature Gauge

515175601

Unavailable

42

RING GAUGE - Call your local BRP dealership

515175711

Unavailable

43

FUEL GAUGE - Call your local BRP dealership

515175529

Unavailable

44

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

45

FEMALE HOUSING - Call your local BRP dealership

409204200

$3.82

46

O-RING - Call your local BRP dealership

414807200

Unavailable

47

WASHER - Call your local BRP dealership

517258600

Unavailable

48

Case Holder | SE Models

414806600

Unavailable

49

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

50

Lock Washer | SE Models

414833700

Unavailable

51

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

52

Fuel Sensor

515175522

Unavailable

53

Elastic Stop Nut M5

232551414

Unavailable

54

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 173 mm

293750009

Unavailable

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

55

Cap

572103300

$9.65

56

Extension

515175851

Unavailable
