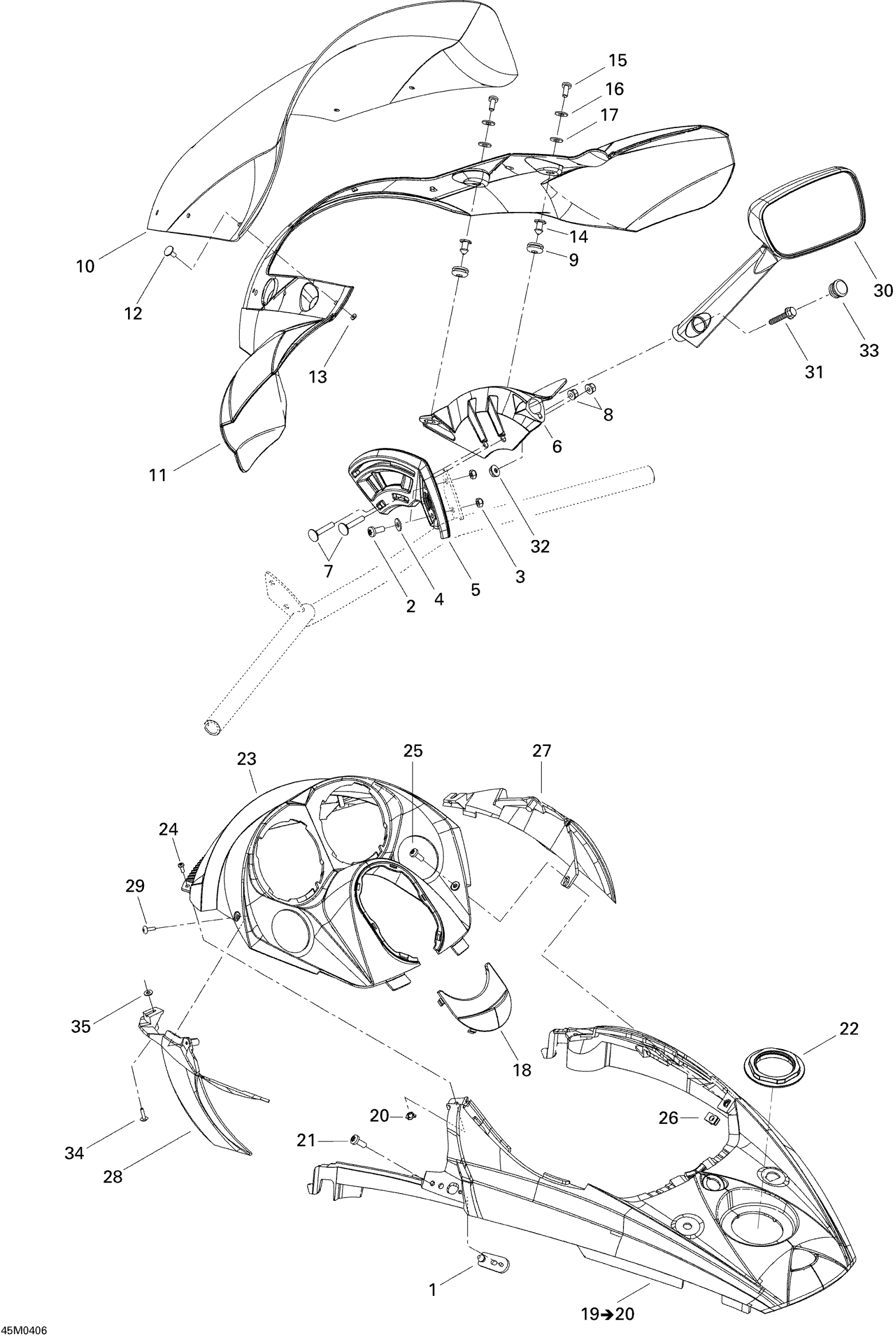

Ski-Doo GSX 500SS, 2004 Windshield And Console Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Torx Truss Screw M6 X 16

250000721

Unavailable

3

Hex. Nut M6

250000135

$0.51

4

Flat Washer 6 mm

234062100

Unavailable

5

RH Fixing Plate

517303076

Unavailable

LH Fixing Plate

517303078

Unavailable

6

RH WINDSHIELD SUPPORT - Call your local BRP dealership

517303077

Unavailable

LH WINDSHIELD SUPPORT - Call your local BRP dealership

517303079

Unavailable

7

Carriage Bolt M6 X 35

207763554

Unavailable

8

Hex. Flange Elastic Nut M6

233261494

$1.26

9

Grommet

517302841

Unavailable

10

WINDSHIELD - Call your local BRP dealership

517303094

Unavailable

11

Air Deflector

517302816

Unavailable

12

Windshield Dart

517303070

Unavailable

13

Push Nut

250100034

$1.11

14

Knob

517303439

$3.73

15

Torx Screw M5 X 14

250000742

$1.20

16

Washer M5

250200025

Unavailable

17

Rubber Washer 5 mm

250200024

$1.77

18

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

19

CENTER CONSOLE, BLACK, B-160 - Call your local BRP dealership | Includes 11 to 12, LTD

517303099

Unavailable

CENTER CONSOLE, SILVER, B-243 - Call your local BRP dealership | Includes 13 to 14, Silver-Blue Model

517303103

Unavailable

CENTER CONSOLE, BLACK, B-160 - Call your local BRP dealership | Black/Black

517303104

Unavailable

Center Console, Silver, B-243 | Includes 11 to 12, LTD

517303145

Unavailable

20

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

21

Torx Screw M6 X 20

250000722

Unavailable

22

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

23

Support

517302796

Unavailable

Support | GSX 800 HO

517302973

Unavailable

24

Torx Screw M4 X 8

250000127

$1.09

25

Torx Screw M5 X 20

250000724

Unavailable

26

Panel Nut M5 X 0.8

250000958

Unavailable

27

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

Unavailable

28

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

Unavailable

29

Phillips Screw K40 X 16

250000723

Unavailable

30

RH MIRROR - Call your local BRP dealership

517302449

Unavailable

LH MIRROR - Call your local BRP dealership

517302450

Unavailable

31

Hex. Flange Screw M6 X 40

207664044

$2.18

32

Hex. Flange Elastic Nut M6

233261494

$1.26

33

Cap

517302716

$3.73

34

Screw M4 X 16

250000725

Unavailable

35

Flat Washer 4 mm, Stainless

234042600

Unavailable
