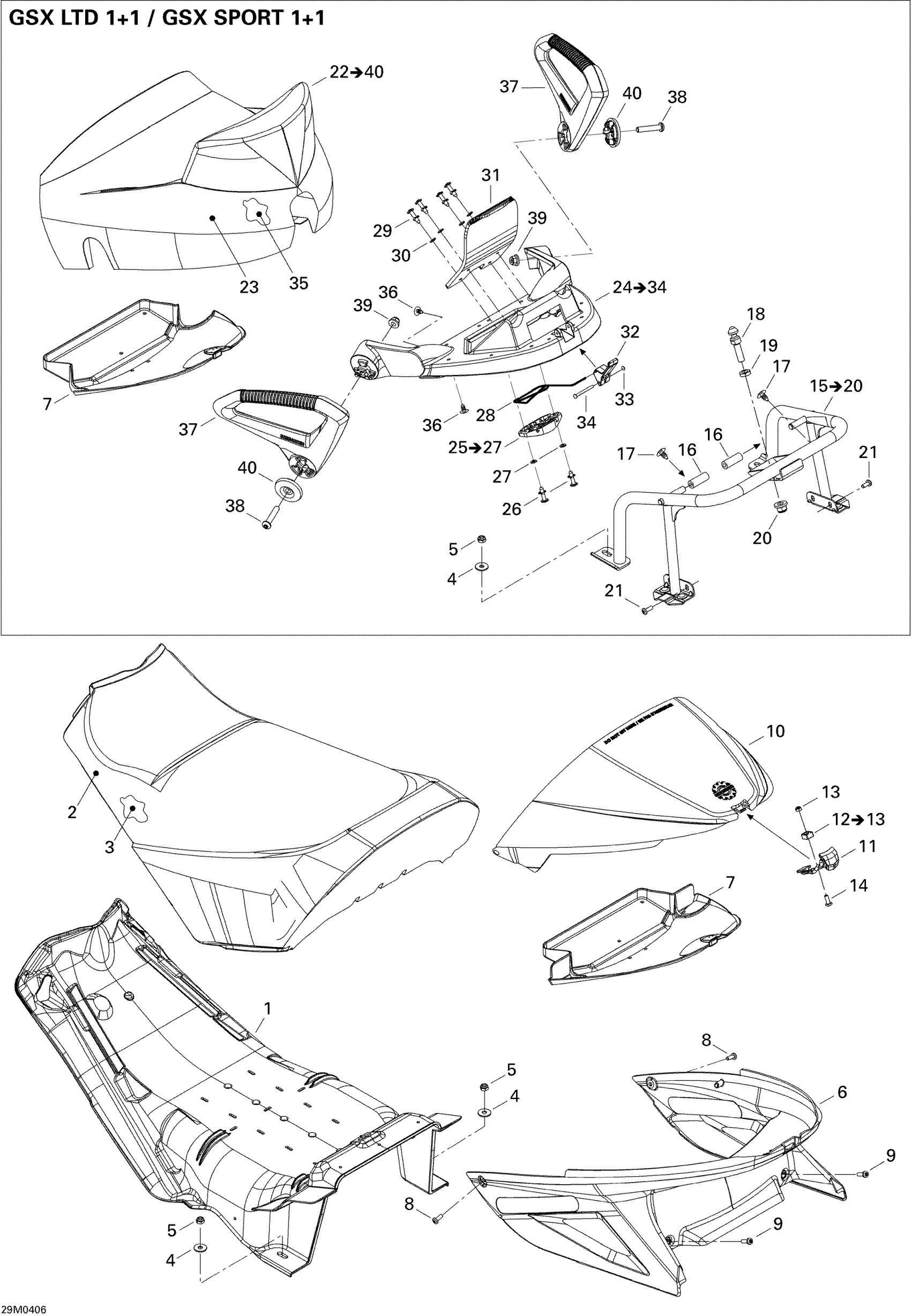

Ski-Doo GSX 500SS, 2004 Seat Diagram

#

Description
Price

1

Seat Base

510004308

Unavailable

2

Seat Cover | GSX SPORT / GSX SPORT 1+1 (BLACK)

510004289

Unavailable

Seat Cover | GSX SPORT / GSX SPORT 1+1 (SILVER)

510004291

Unavailable

Seat Cover | GSX LTD / GSX LTD 1+1 (BLACK)

510004285

Unavailable

Seat Cover | GSX LTD / GSX LTD 1+1 (SILVER)

510004287

Unavailable

3

SEAT FOAM - Call your local BRP dealership

510004275

Unavailable

4

Flat Washer 8 mm

234082410

$1.11

5

Hex. Elastic Stop Nut M8

232581414

Unavailable

6

Deep Black, Trunk

510004230

Unavailable

Deep Black, Trunk

510004230

Unavailable

Deep Black, Trunk

510004230

Unavailable

Labrador Blue, Trunk | Labrador Blue B-226

510004238

Unavailable

7

Box Liner

510004231

Unavailable

Box Liner | GSX SPORT 1+1

510004236

Unavailable

Box Liner

510004231

Unavailable

Box Liner | GSX SPORT 1+1

510004236

Unavailable

8

Torx Truss Screw M6 X 16

250000721

Unavailable

9

Torx Screw M6 X 20

250000722

Unavailable

10

Deep Black, Cover

510004311

Unavailable

Deep Black, Cover

510004311

Unavailable

Deep Black, Cover

510004311

Unavailable

Labrador Blue, Cover | Labrador Blue B-226

510004237

Unavailable

11

Bracket

510003917

Unavailable

12

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

13

Hex. Nut M6

232061600

Unavailable

14

Torx Truss Screw M6 X 16

250000721

Unavailable

15

LOWER SUPPORT - Call your local BRP dealership | INCLUDES ITEMS 15 TO 20 / GSX SPORT 1+1

510004220

Unavailable

LOWER SUPPORT - Call your local BRP dealership | INCLUDES ITEMS 15 TO 20 / GSX SPORT 1+1

510004220

Unavailable

16

Hose

219704549

Unavailable

17

Black, Dart

414644300

$0.78

18

Seat Stud

291001929

Unavailable

19

Hex. Jam Nut M10

232100600

Unavailable

20

Hex. Flange Elastic Nut M10

233201414

$1.26

21

Hex. Flange Screw M6 X 16

207661644

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

23

Seat Cover | GSX SPORT 1+1 (BLACK)

510004299

Unavailable

Seat Cover | GSX SPORT 1+1 (SILVER)

510004294

Unavailable

Seat Cover | GSX SPORT 1+1 (BLACK)

510004299

Unavailable

Seat Cover | GSX SPORT 1+1 (SILVER)

510004294

Unavailable

24

Upper Support Ass'y | INCLUDES ITEMS 24 TO 34

510004296

Unavailable

25

Latch Seat Kit | INCLUDES ITEMS 25 TO 27

861001800

Unavailable

26

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

27

Stainless Flat Washer M6

234061600

$0.25

28

Spring

510004075

Unavailable

29

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

30

Stainless Flat Washer M6

234061600

$0.25

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Push Nut

389804300

$0.43

34

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

Unavailable

35

Foam

510004295

Unavailable

36

Black, Dart

414644300

$0.78

37

Passenger Handle

510004074

Unavailable

38

Socket Head Screw M10 X 50

205405086

Unavailable

39

Hex. Flange Elastic Nut M10

233201414

$1.26

40

Moulding

510004109

Unavailable
