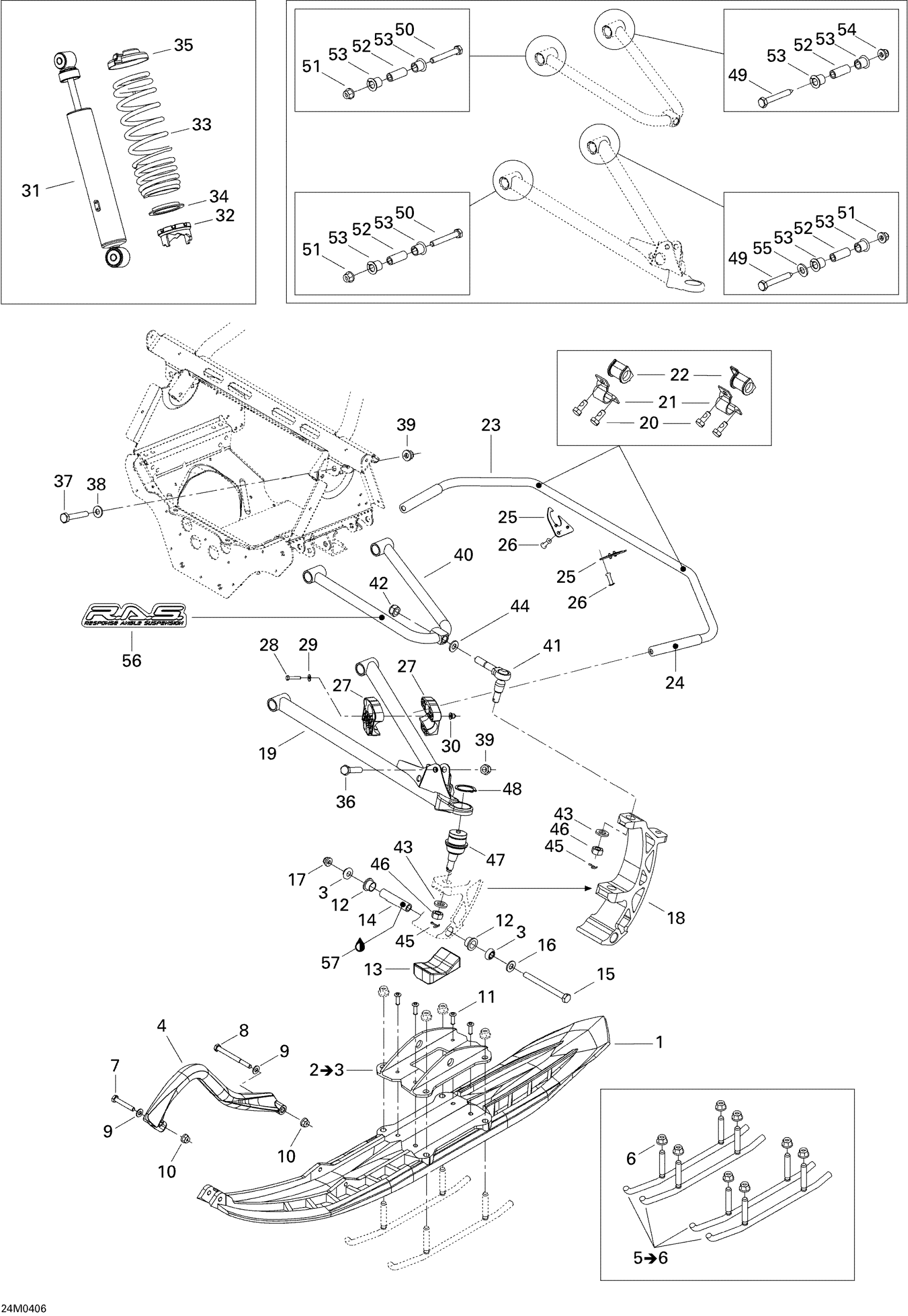

Ski-Doo GSX 500SS, 2004 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

Unavailable

Labrador Blue, Precision Ski | GSX Ltd (Silver/Blue)

505071031

Unavailable

Labrador Blue, Precision Ski | GSX Ltd (Silver/Blue)

505071031

Unavailable

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

Unavailable

Labrador Blue, Ski Handle Kit

860507600

Unavailable

Labrador Blue, Ski Handle Kit

860507600

Unavailable

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

Unavailable

6

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Hex. Screw M8 X 50

207085044

Unavailable

8

Hex. Screw M8 X 90

207089044

$2.82

9

Flat Washer 8 mm

234081410

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

Leg Bushing

505072690

Unavailable

13

Ski Stopper

505070671

Unavailable

14

Spacer

506133300

Unavailable

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

Unavailable

17

Flange Nut M10

732610084

Unavailable

18

SKI LEG - Call your local BRP dealership

505071232

Unavailable

19

RH Lower Arm

860509700

Unavailable

RH Lower Arm

505071290

Unavailable

19

LH Lower Arm

860509600

Unavailable

LH Lower Arm

505071293

Unavailable

20

Hex. Screw With Nylon

250000118

Unavailable

21

CLAMP - Call your local BRP dealership

506095800

Unavailable

22

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

23

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

24

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

25

PLUG - Call your local BRP dealership

505071253

Unavailable

26

Pop Rivet 3/16"

293150103

Unavailable

27

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

28

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

29

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

30

Hex. Flange Elastic Nut M5

233251414

Unavailable

31

Front Shock | Sport

505071202

Unavailable

32

Adjustment Cam

505073625

Unavailable

33

Spring

505071264

Unavailable

34

Spring Guide

503187500

Unavailable

35

Spring Stopper

706200881

$10.30

36

Hex. Screw M10 X 55

207005544

$1.85

37

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

38

Washer

732900049

Unavailable

39

Hex. Flange Elastic Nut M10

233201414

$1.26

40

Upper Arm

505071276

Unavailable

41

Upper Ball Joint

505072257

$16.89

42

Hex. Flange Elastic Nut M12

250000047

Unavailable

43

Flat Washer 12 mm

234021410

$0.68

44

Washer

503189276

Unavailable

45

Cotter Pin

211400017

Unavailable

46

Hex. Castellated Nut M12

232221414

Unavailable

47

Ball Joint

505073636

$49.97

48

Circlip

293370035

$2.55

49

Cone Screw M10 X 75

250000114

Unavailable

50

Hex. Screw M10 X 70

207007044

Unavailable

51

Hex. Flange Elastic Nut M10

233201414

$1.26

52

Bushing

505070567

Unavailable

53

Arm Bushing

505070566

Unavailable

54

Elastic Locking Nut M10 X 1.5

233601416

$1.68

55

Washer

503189564

Unavailable

56

R.A.S. Suspension Decal

516001704

Unavailable

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
