Description

Price

1

Flange Connector

420810868

$86.12

2

Socket Head Screw M6 x 16

420241237

$1.85

3

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$166.12

4

Starter Housing

420910256

$89.20

5

Rewind Spring

420939115

$25.32

6

Rope Sheave

420852288

$39.97

7

Was 412500100 Rope-Starter

219704403

$10.15

8

Pawl

420852633

$32.28

9

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

10

Stage Sleeve

420847926

$14.54

11

O-Ring

420250400

$5.22

12

Lock Ring

420852520

$8.34

13

Locking Element

420845560

$2.03

14

Torx Flange Screw M6 X 20

420441386

$2.06

15

Molykote PG 54, 10 g

420899763

$18.82

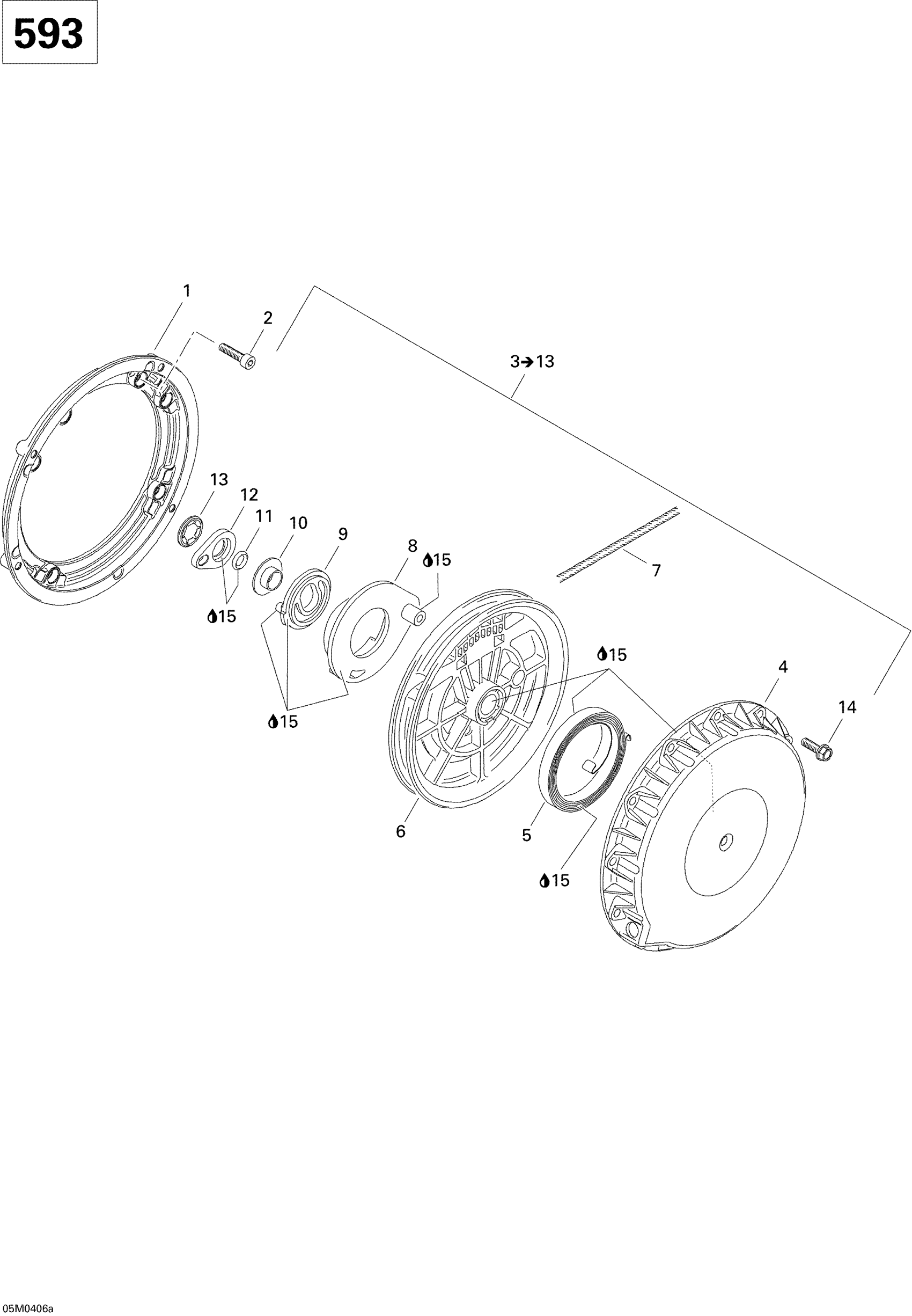

Ski-Doo GSX 500SS, 2004 Rewind Starter (593) Diagram
