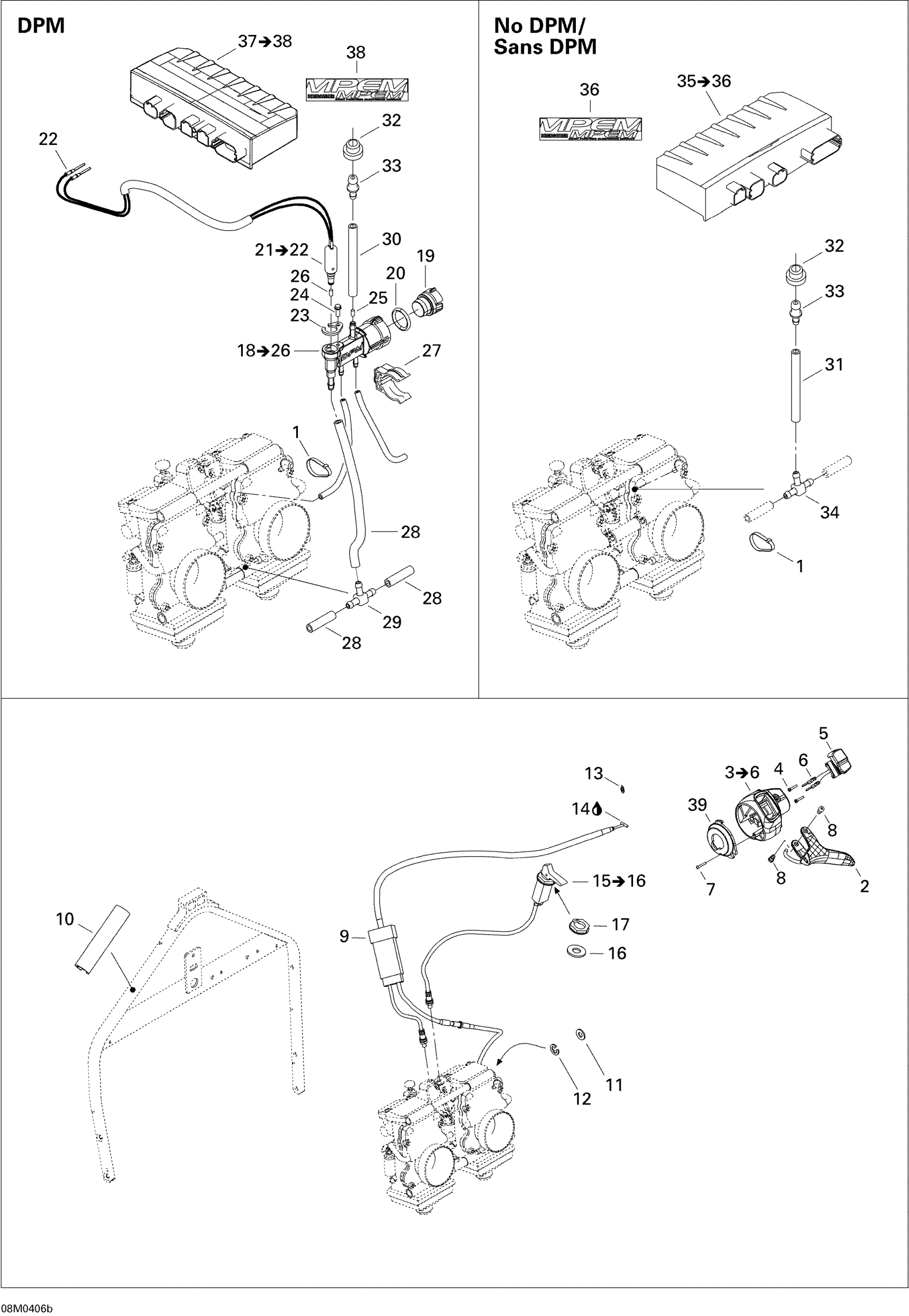

Ski-Doo GSX 500SS, 2004 Mem, Dpm And Throttle Diagram

#

Description
Price

1

Tie Wrap 94 mm | 4X4

293750001

$0.83

2

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

3

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

4

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

5

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

6

Male Terminal

515175232

$1.49

7

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

8

Flange Screw

732601143

$4.02

9

Throttle Cable

512060085

Unavailable

10

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

11

Flat Washer 8 mm, Nylon

234081100

$1.00

12

Circlip

414753500

$0.59

13

Circlip

414274500

Unavailable

14

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

15

CHOKE CABLE - Call your local BRP dealership | Includes 47 to 48

512059266

Unavailable

16

Lock Washer, Interior Teeth

394103300

Unavailable

17

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

18

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

$221.51

19

CAP - Call your local BRP dealership

270600009

$5.63

20

O-RING - Call your local BRP dealership

293300042

$7.69

21

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

$73.82

22

Female Terminal

278001665

Unavailable

23

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

24

Screw K40 X 10

241140060

$1.25

25

Not Available As Spare Part - Friction Washer

Unavailable

26

STARTER JET - Call your local BRP dealership

404161825

Unavailable

27

SUPPORT - Call your local BRP dealership

512058919

Unavailable

28

Polyurethane Hose 10000Mm Long

219704410

Unavailable

29

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

30

Polyurethane Hose 10000Mm Long

219704410

Unavailable

31

Polyurethane Hose 10000Mm Long

219704410

Unavailable

32

GROMMET - Call your local BRP dealership

512059931

Unavailable

GROMMET - Call your local BRP dealership

512059931

Unavailable

33

Straight Fitting

293710035

$8.63

Straight Fitting

293710035

$8.63

34

T-Fitting

572045500

Unavailable

35

Calibrated Module | Includes 40 to 41 / 500 SS

512059850

Unavailable

CALIBRATED MODULE - Call your local BRP dealership | Includes 40 to 41 / 600 H.O.

512059852

Unavailable

36

Electrical Box Decal

516000245

Unavailable

37

Calibrated Module | INCLUDES ITEMS 37 TO 38 / GSX 800 HO

512059853

Unavailable

38

Electrical Box Decal

516000245

Unavailable

39

COVER - Call your local BRP dealership

512059698

Unavailable
