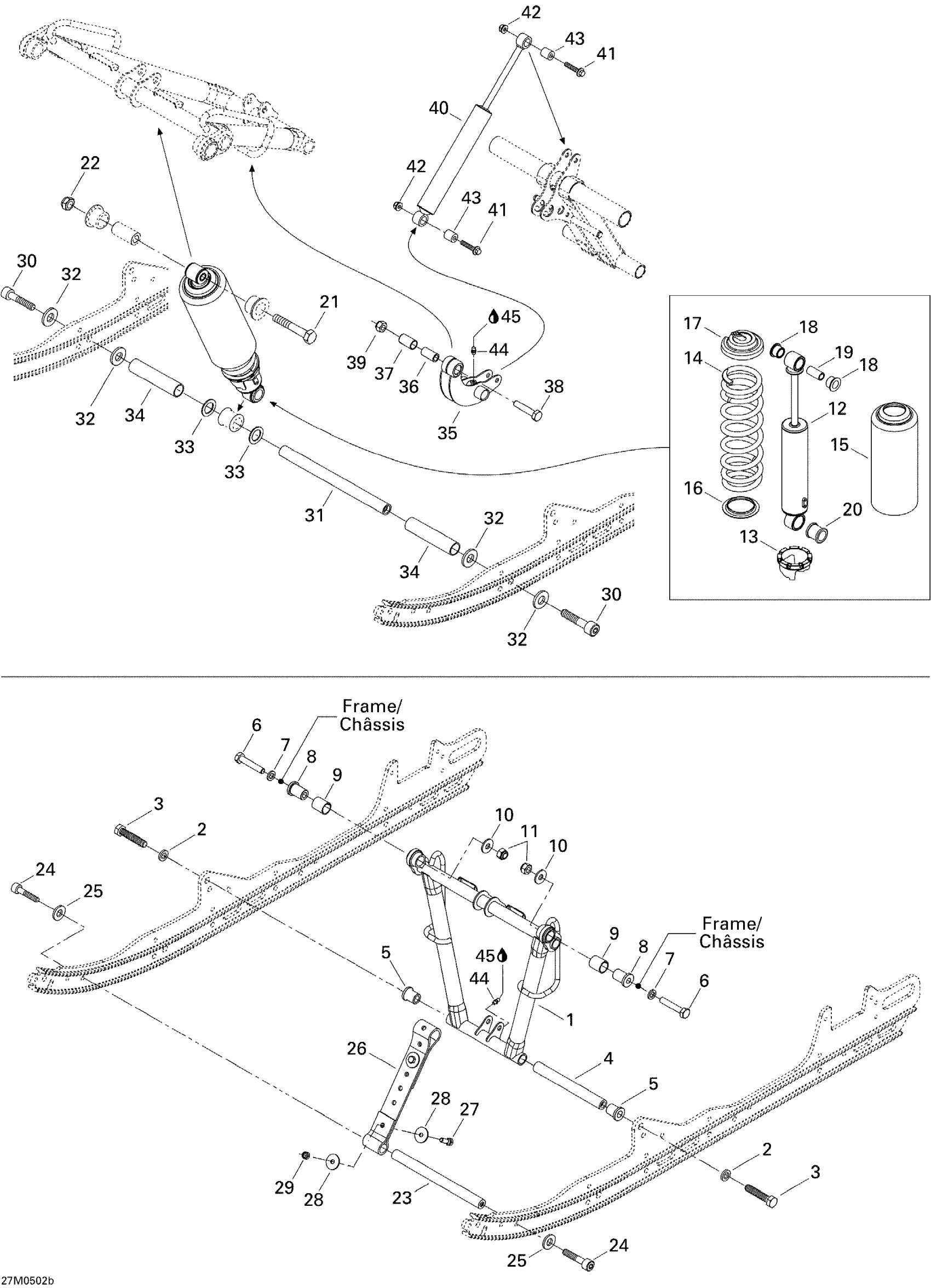

Ski-Doo GSX 380F, 2005 Front Arm GSX Diagram

#

Description
Price

1

Front Arm

503191071

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$1.85

7

Washer

732900049

Unavailable

8

EXTENSION - Call your local BRP dealership

503190373

Unavailable

9

EXTENDED BUSHING - Call your local BRP dealership

503190474

Unavailable

10

Flat Washer M10 | 4X4

250200014

$1.17

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Center Shock

503190317

Unavailable

13

Adjustment Cam

505073625

Unavailable

14

Black, Spring

503189686

$66.89

15

Protector

503193663

Unavailable

16

Spring Guide

503187500

Unavailable

17

Spring Stopper

706200881

$10.30

18

Urethane Bushing

503189117

Unavailable

19

Bushing | Includes 240d to 240d1

503189282

Unavailable

20

Bushing

503189271

Unavailable

21

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

22

Elastic Locking Nut M10 X 1.5

233601416

$1.68

23

AXLE - Call your local BRP dealership

503189562

Unavailable

24

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

25

Washer

503189564

Unavailable

26

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

27

Hex. Flange Screw M8 X 25

207682544

$0.90

28

Flat Washer

224081301

$0.86

29

Hex. Flange Elastic Nut M8

233281414

Unavailable

30

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

31

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

32

Washer

503189276

Unavailable

33

Washer

503189273

Unavailable

34

SPACER - Call your local BRP dealership

503189274

Unavailable

35

Rocker

503189845

Unavailable

36

Rocker Axle

503189388

Unavailable

37

CUSHION - Call your local BRP dealership

503189626

Unavailable

38

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

39

Elastic Locking Nut M10 X 1.5

233601416

$1.68

40

Rear Shock

503191582

$157.66

41

Hex. Flange Screw M8 X 40

207684044

Unavailable

42

Hex. Flange Elastic Nut M8

233281414

Unavailable

43

Bushing

414936000

Unavailable

44

Grease Fitting

408200700

Unavailable

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
