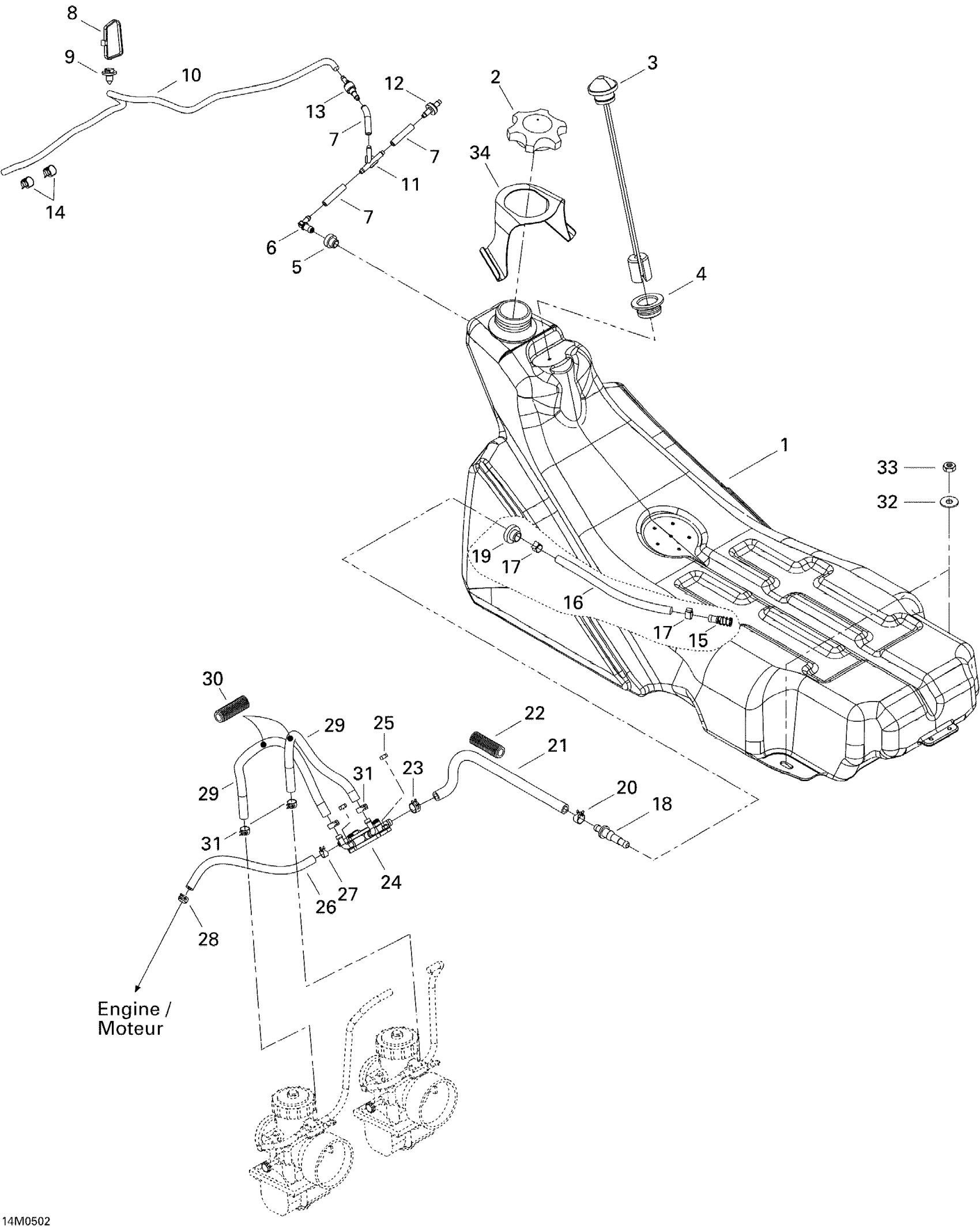

Ski-Doo GSX 380F, 2005 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033080

Unavailable

2

Fuel Tank Cap

513033025

$22.36

3

FUEL GAUGE - Call your local BRP dealership

513033358

Unavailable

4

Grommet

293720058

$10.67

5

Grommet

513032908

$8.48

6

Male Connector

414580700

$3.88

7

Polyurethane Hose 10000Mm Long

219704410

$52.96

8

Tie-Rap 180 mm

414115200

$0.10

9

Mount Dart

293730040

$0.99

10

Polyurethane Hose 10000Mm Long

219704410

$52.96

11

Y-Fitting

293710059

$9.40

12

Check Valve

275500398

$9.84

13

Check Valve

275500505

$29.07

14

Spring Clamp

414554800

$0.81

15

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

16

Hose

513033070

$12.24

17

Norma Spring Clamp

513033010

$8.42

18

Male Connector

414872700

Unavailable

19

Grommet | Europe

707800347

$8.70

20

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

21

Formed Hose

513033374

$28.33

22

Tubing 16 Mm 1000Mm Long

219704408

$7.15

23

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

24

Fuel Pump

403901813

$84.99

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

26

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

27

Spring Clamp

414415200

$0.81

28

Universal Spring Clamp

513033029

$4.96

29

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

30

Tubing 16 Mm 1000Mm Long

219704408

$7.15

31

Universal Spring Clamp

513033029

$4.96

32

Flat Washer 8 mm

234082410

$1.27

33

Hex. Elastic Stop Nut M8

232581414

$0.54

34

SUPPORT - Call your local BRP dealership

513033066

Unavailable
