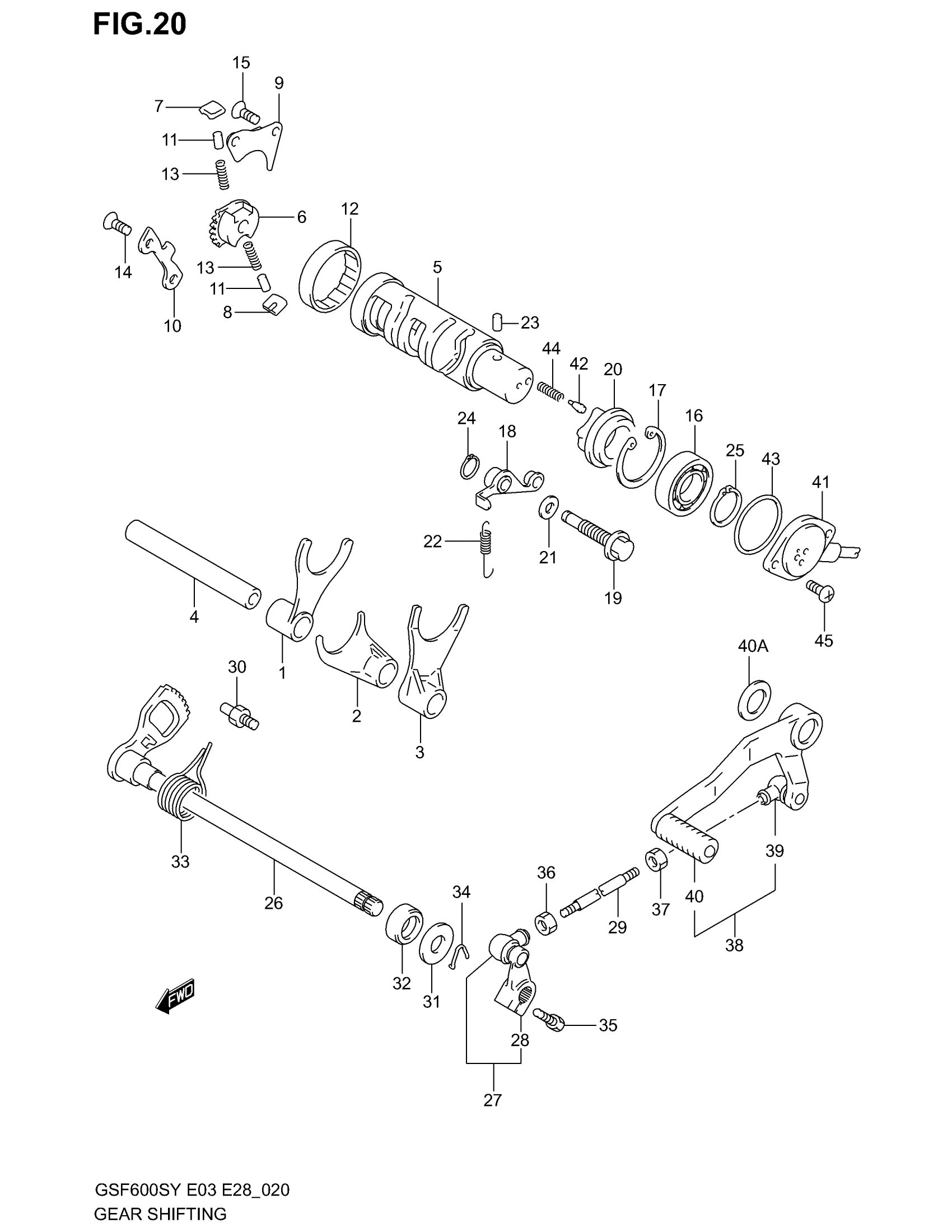

Suzuki GSF600S (2003) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-27A12

Unavailable

2

FORK, GEAR SHIFT NO.2

25221-27A01

Unavailable

3

FORK, GEAR SHIFT NO.3

25231-27A00

Unavailable

4

SHAFT, GEAR SHIFT FORK

25411-27A00

$33.02

5

CAM, GEAR SHIFT

25310-27A03

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$30.40

7

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

8

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

9

LIFTER,GEAR SHI This part replaces 25331-31301.

25331-31310

Unavailable

10

GUIDE, CAM

25341-27A00

Unavailable

11

PIN, GEAR

09261-05003

$1.69

12

BEARING, GEAR RH (43X49X12)

09263-43001

$36.05

13

SPRING, GEAR RETURN

09440-04003

$1.48

14

SCREW | MODEL Y This part replaces 02122-06123.

02122-0612A

$1.43

14

SCREW, CAM GUIDE | MODEL K1/K2/K3

09126-06011

$2.01

15

SCREW | MODEL Y This part replaces 02122-06123.

02122-0612A

$1.43

15

SCREW, POLE | MODEL K1/K2/K3

09126-06011

$2.01

16

BEARING

08113-69050

$32.64

17

CIRCLIP This part replaces 08331-41426.

08331-41429

$2.51

18

STOPPER, GEAR SHIFT CAM

25350-27A00

$19.03

19

SHAFT, GEAR SHIFT STOPPER

25353-27A00

Unavailable

20

PLATE, GEAR SHIFT STOPPER

25381-38400

Unavailable

21

GASKET, GEAR SHIFT STOPPER

09168-10002

$1.96

22

SPRING, GEAR SHIFT STOPPER

09443-09033

$7.67

23

PIN, TEAR SHIFT STOPPER

04221-04069

$2.30

24

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.77

25

CIRCLIP, SHIFT CAM STOPPER

08331-31256

$1.09

26

SHAFT, GEAR SHIFT

25510-19C01

Unavailable

27

ARM,GEAR SHIFT | Includes Item(s) 28 This part replaces 25520-22A00.

25520-22A01

$47.47

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

29

ROD, GEAR SHIFT LINK

25525-26E01

$16.30

30

STOPPER, ARM | MODEL Y This part replaces 25671-01000.

25671-01011

$4.09

30

STOPPER, GEAR SHIFT ARM | MODEL K1/K2/K3

25671-01011

$4.09

31

WASHER (12.5X26X1.6) This part replaces 09160-12090.

09160-12089

$1.99

32

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

33

SPRING, GEAR SHIFT RETURN

09444-26017

$5.00

34

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

35

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

36

.NUT

08310-00067

$1.83

37

NUT, GEAR SHIFT LH | MODEL Y/K1/K2

09140-06011

$1.37

37

NUT, GEAR SHIFT LH | MODEL K3

09140-06025

$1.84

38

LEVER ASSY,GEAR | Includes Item(s) 39 - 40 This part replaces 25600-10D10.

25600-10D11

$96.72

39

RUBBER, GEAR SHIFT

25652-20C00

$4.98

40

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

40A

WASHER | 18.2X27X1 This part replaces 09161-18003.

09160-18022

$2.80

41

TERMINAL BASE ASSY, NEUTRAL

37720-20C10

$121.48

42

CONTACT, NEUTRAL SW

09209-05011

$2.02

43

O RING (D:2.40,ID:35.5)

09280-35006

$2.80

44

SPRING, NEUTRAL SW

09440-04010

$1.52

45

SCREW This part replaces 02112-75163.

02112-7516A

$2.42
