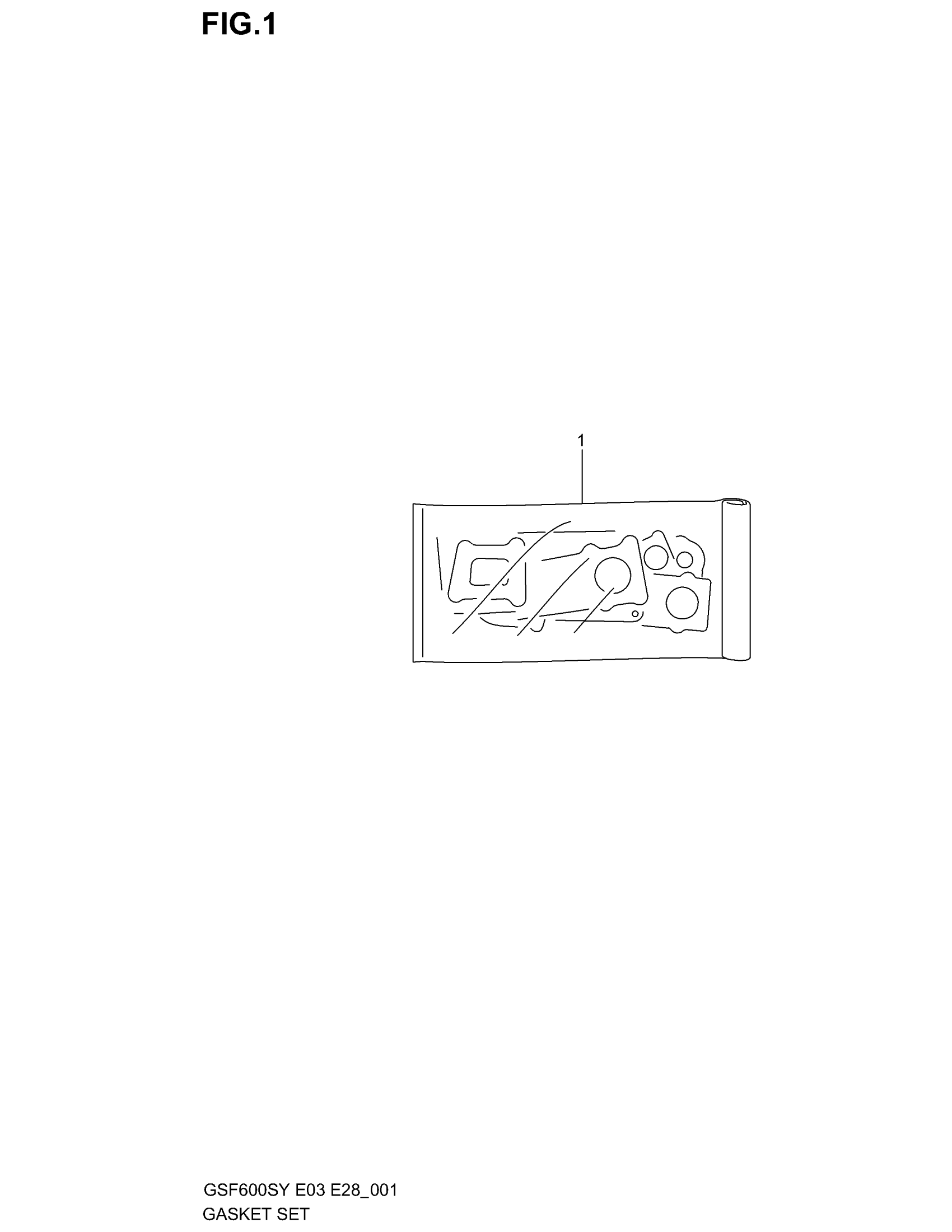

Suzuki GSF600S (2003) GASKET SET Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | OPT; Includes Item(s) 2 - 36 This part replaces 11400-26883.

11400-26886

Unavailable

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-19C03

$71.70

3

GASKET, CYLINDER HEAD COVER | NOT SHOWN

11173-27A02

$41.29

4

GASKET, BREATHER COVER | NOT SHOWN

11177-17E00

$10.09

5

GASKET,HEAD COV | NOT SHOWN This part replaces 11178-27A01.

11178-27A02

$6.50

6

GASKET,HEAD COV | NOT SHOWN This part replaces 11179-27A02.

11179-27A03

$6.91

7

GASKET, CYLINDER | NOT SHOWN

11241-27A04

$17.08

8

GASKET, CLUTCH COVER | NOT SHOWN

11482-27A20

$13.59

9

GASKET, STARTER GEAR COVER | NOT SHOWN

11483-27A20

$10.70

10

GASKET, OIL PAN | NOT SHOWN

11489-27A21

$15.62

11

GASKET, SIGNAL GEN COVER | NOT SHOWN

11491-27A30

$8.04

12

GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-27A10

$3.79

13

.GASKET,EXHAUST | NOT SHOWN

14181-18C00

$6.91

14

O RING, OIL PUMP | NOT SHOWN

16491-27A01

$10.51

15

GASKET, OIL STR PROTECTOR | NOT SHOWN This part replaces 16528-27A20.

16528-27A21

$6.45

16

GASKET, OIL OUTLET | NOT SHOWN

16529-27A01

$2.15

17

GASKET, 2ND AIR PIPE | NOT SHOWN

18441-17C11

$9.62

18

WASHER | NOT SHOWN

09161-11008

$4.17

19

GASKET | NOT SHOWN

09168-06024

$2.19

20

GASKET (8.2X14X1) | NOT SHOWN This part replaces 09168-08008.

09168-08016

$1.70

21

GASKET, (8.5X17X2.3) | NOT SHOWN

09168-08021

$2.66

22

.GASKET (10.2X20X2.3) | NOT SHOWN

09168-10031

$2.09

23

GASKET, (12.1X16.2X3.7) | NOT SHOWN

09168-12002

$1.63

24

GASKET, (13.8X18.8X0.4) | NOT SHOWN

09168-14002

$2.83

25

GASKET, (16X22X2) | NOT SHOWN

09168-16002

$1.97

26

O RING, (D:1.2,ID:4.0) | NOT SHOWN

09280-04004

$1.76

27

O RING, (D:2.4,ID:12.3) | NOT SHOWN

09280-12008

$2.80

28

O RING, (D:2.6,ID:12.1) | NOT SHOWN

09280-12013

$5.27

29

O RING, (D:2.5,ID:13.8) | NOT SHOWN

09280-14011

$4.44

30

O-RING (D:2.4,ID:15.8) | NOT SHOWN

09280-15007

$1.76

31

O RING, (D:3.1,ID:16.8) | NOT SHOWN

09280-17002

$4.75

32

O RING, (D:3.1,ID:16.8) | NOT SHOWN

09280-17003

$1.70

33

O RING | NOT SHOWN

09280-18009

$5.42

34

O RING (D:2.5,ID:21) | NOT SHOWN

09280-21008

$1.97

35

O RING | NOT SHOWN

09280-22016

$5.18

36

O-RING (D:2.4,ID:39.7) | NOT SHOWN This part replaces 09280-40010.

09280-40020

$2.80
