Description

Price

CALIPER ASSY, FRONT RH This part replaces 59100-33D90.

59100-33D81-999

$643.45

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 12

59300-33D90

Unavailable

1

PISTON SET This part replaces 59300-33830.

59301-20820

$35.39

2

SEAL SET, PISTON This part replaces 59300-33840.

59300-33841

$14.15

3

PAD SET, RH

59102-33810

$79.32

3

PAD & SHIM SET This part replaces 59302-33810.

59302-33880

Unavailable

4

.SHIM, PAD

59171-33D00

$16.77

5

.SPRING, PAD RH

59115-33D00

$19.78

5

.SPRING, PAD LH

59315-33D00

$14.03

6

BOOT

59112-44B00

$8.15

7

.INSULATOR, AXLE

59313-36500

$5.48

8

.GUIDE, PAD

59116-33D00

$7.51

9

BLEEDER

59121-18410

$7.99

10

CAP

55156-66310

$4.73

11

.PIN, PAD

59141-44B01

$8.56

12

.CLIP, PAD PIN

69142-45000

$3.97

13

BOLT (10X20) This part replaces 01550-10253.

01550-1025A

$2.80

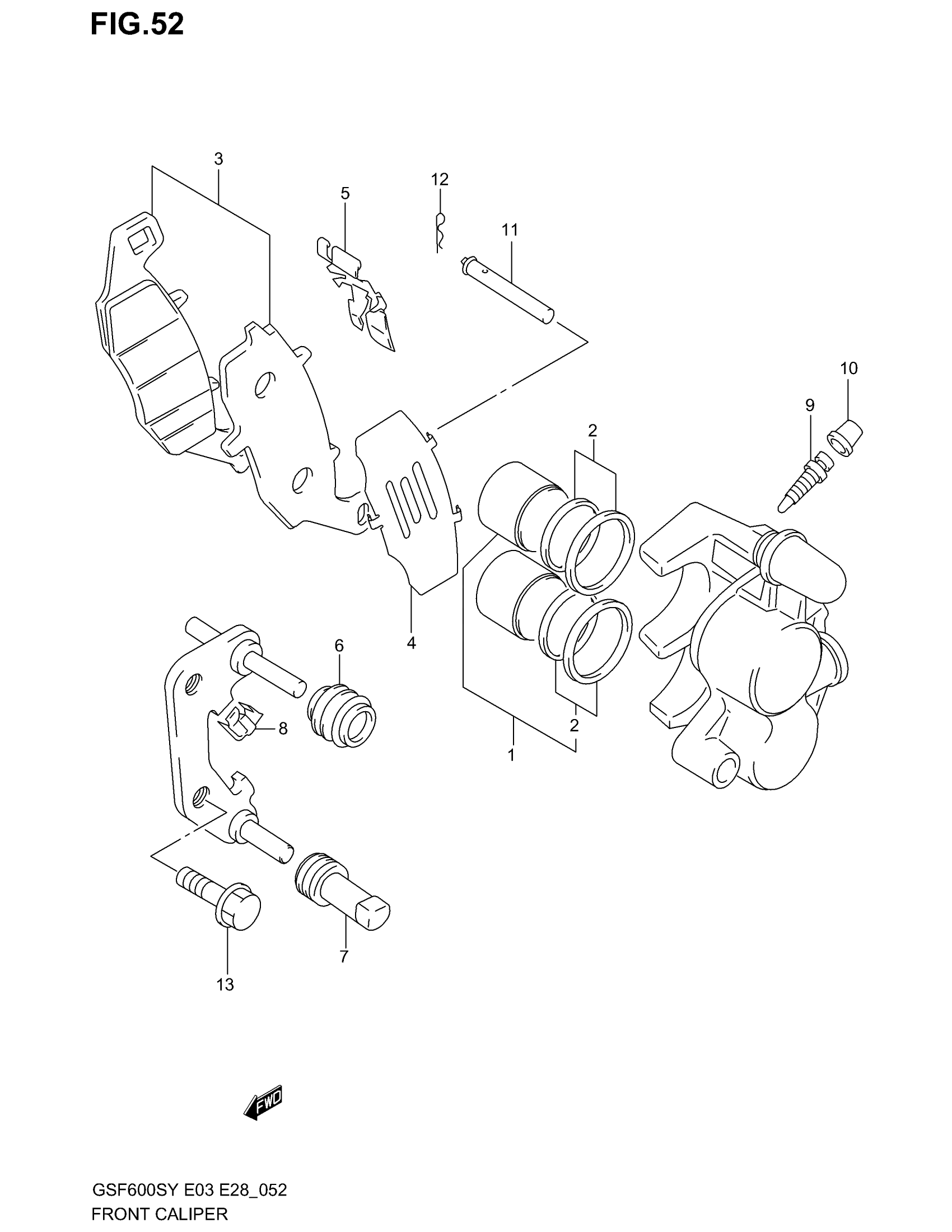

Suzuki GSF600S (2003) FRONT CALIPER Diagram
