1993 Suzuki GSF400P Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1993 Suzuki GSF400P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

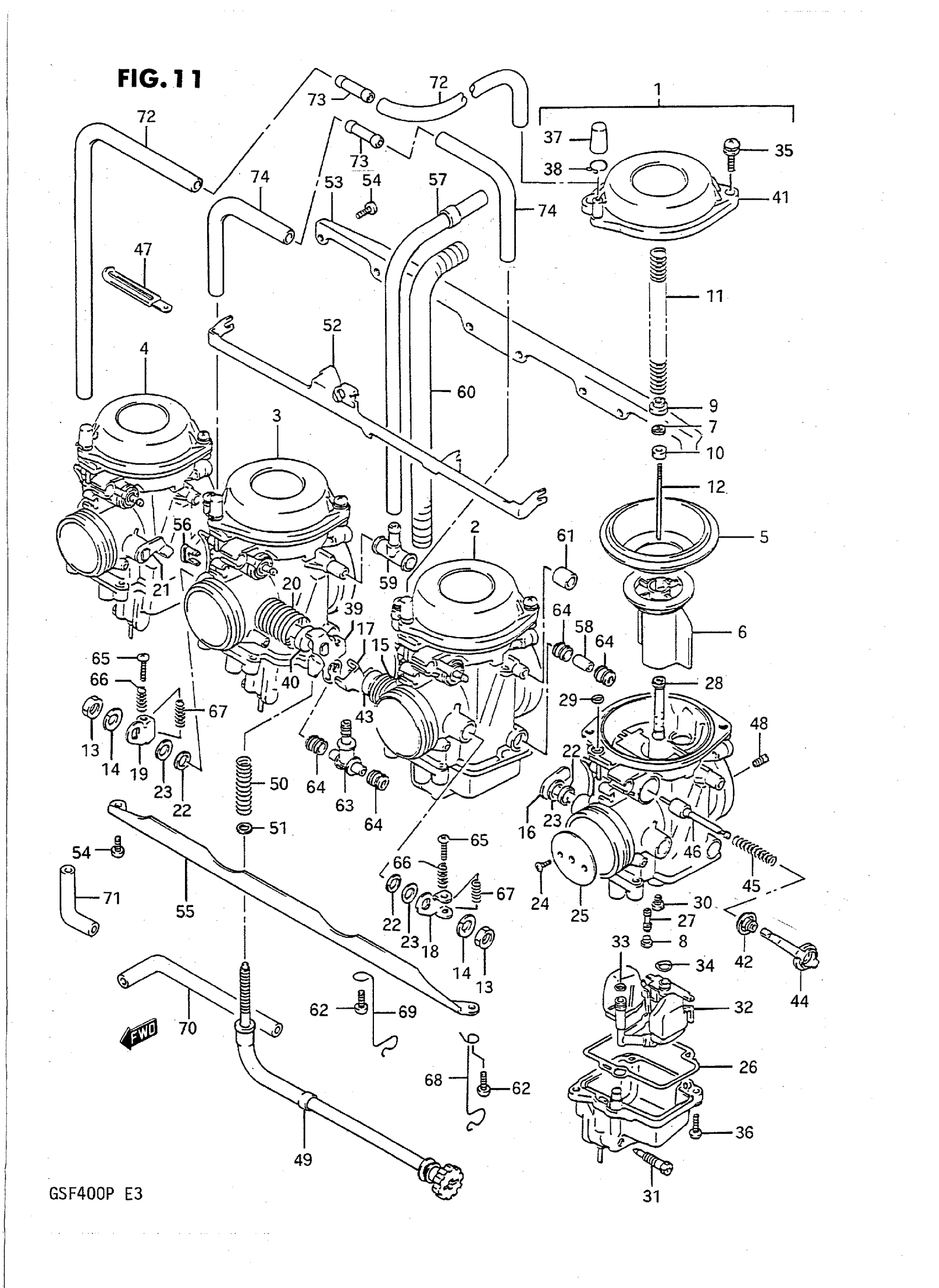

1993 Suzuki GSF400P Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, LH | MODEL M/N

13201-10D20

1
Out of stock

1

CARBURETOR ASSY, LH | MODEL P

13201-10D90

1
Out of stock

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY,MODEL M/N

13201-10D40

1
Out of stock

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY,MODEL P

13201-10DA0

1
Out of stock

2

CARBURETOR ASSY, ML | MODEL M/N

13202-10D20

1
Out of stock

2

CARBURETOR ASSY, ML | MODEL P

13202-10D90

1
Out of stock

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY,MODEL M/N

13202-10D40

1
Out of stock

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY,MODEL P

13202-10DA0

1
Out of stock

3

CARBURETOR ASSY, MR | MODEL M/N

13203-10D20

1
Out of stock

3

CARBURETOR ASSY, MR | MODEL P

13203-10D90

1
Out of stock

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY,MODEL M/N

13203-10D40

1
Out of stock

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY,MODEL P

13203-10DA0

1
Out of stock

4

CARBURETOR ASSY, RH | MODEL M/N

13204-10D20

1
Out of stock

4

CARBURETOR ASSY, RH | MODEL P

13204-10D90

1
Out of stock

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY,MODEL M/N

13204-10D40

1
Out of stock

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY,MODEL P; Includes Item(s) 5 - 48

13204-10DA0

1
Out of stock

5

DIAPHRAGM This part replaces 13507-32C00.

13507-32C02

4
Out of stock

6

VALVE, PISTON

13501-32C00

4
Out of stock

7

CLIP, NEEDLE

13394-10010

4

$4.76

In stock

8

PLUG

13357-34C00

4
Out of stock

9

RING

13382-42A00

4

$4.46

In stock

10

RING

13387-47010

4

$7.41

In stock

11

SPRING

13417-42A00

4
Out of stock

12

NEEDLE, JET (5EZ74-1)

13383-10D10

4
Out of stock

13

NUT | ML,MR This part replaces 08310-22086.

08310-0008A

2
Out of stock

14

2

$1.99

In stock

15

SPRING | ML,MODEL M/N

13573-17C00

1
Out of stock

15

SPRING | ML,MODEL P

13573-10D00

1
Out of stock

16

SHAFT ASSY | LH

13550-32C00

1
Out of stock

17

SHAFT ASSY | ML

13550-32C10

1
Out of stock

18

LEVER | ML

13553-17C00

1
Out of stock

19

LEVER, THROTTLE | MR

13553-44B00

1
Out of stock

20

SPRING | MR,MODEL M/N

13573-32C10

1
Out of stock

20

SPRING | MR,MODEL P

13573-10D10

1
Out of stock

21

SHAFT ASSY | RH

13550-32C30

1
Out of stock

22

SEAL | LH,RH:1,ML:MR:2

13556-44B00

6
Out of stock

23

GASKET

13557-47070

4
Out of stock

24

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

8
Out of stock

25

VALVE, THROTTLE (130) | MODEL M/N

13551-10D10

4
Out of stock

25

VALVE, THROTTLE (130) | MODEL P

13551-46D00

4
Out of stock

26

GASKET, FLOAT CHAMBER

13258-44B00

4
Out of stock

27

JET, PILOT (32.5)

09492-32006

4

$12.30

In stock

28

JET, NEEDLE (O-9) | MODEL M/N

09494-00710

4
Out of stock

28

JET, NEEDLE (O-9) | MODEL P

09494-00792

4
Out of stock

28

JET, NEEDLE (O-9) | CALIFORNIA ONLY,MODEL M/N

09494-00715

4
Out of stock

29

O RING

13509-17C00

4
Out of stock

30

.JET (#102.5) | MODEL M/N

09491-20012

4
Out of stock

30

JET, MAIN (105) | MODEL P

09491-21016

4
Out of stock

31

SCREW, DRAIN

13247-28A00

4
Out of stock

32

FLOAT/NEEDLE VALVE ASSY

13250-10D00

4
Out of stock

32

FLOAT/NEEDLE VALVE ASSY | CALIFORNIA ONLY,MODEL P

13250-32C10

4
Out of stock

33

.O RING

13374-46710

4
Out of stock

34

4

$5.97

In stock

35

SCREW This part replaces 13602-34390.

02112-7516A

8
Out of stock

36

SCREW This part replaces 13602-05128.

02112-05127

8
Out of stock

37

CAP | OTHER THAN CALIFORNIA

13508-17C00

4
Out of stock

39

SHAFT ASSY | MR

13550-32C20

1
Out of stock

40

RING | MR

13574-32C10

1
Out of stock

41

COVER, DIAPHRAGM

13502-32C00

4
Out of stock

42

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

4
Out of stock

43

RING | ML

13574-32C00

1
Out of stock

44

HOLDER, GUIDE

13418-17C10

4
Out of stock

45

SPRING

13417-09110

4
Out of stock

46

PLUNGER ASSY

13411-10D00

4
Out of stock

47

CLAMP(L:80) | ML This part replaces 09404-06405.

09404-06036

1
Out of stock

48

JET, PILOT AIR (1.45)

09493-29002

4
Out of stock

48

JET, PILOT AIR (1.55) | CALIFORNIA ONLY,MODEL M/N

09493-31001

4
Out of stock

48

JET, PILOT AIR (1.50) | CALIFORNIA ONLY,MODEL P

09493-30004

4
Out of stock

49

ADJUSTER SET This part replaces 13267-10D00.

13260-10DV0

1
Out of stock

50

SPRING This part replaces 13268-43410.

13375-14D10

1
Out of stock

51

WASHER

13427-38300

1

$2.17

In stock

52

LEVER

13413-32C00

1
Out of stock

53

PLATE

13628-32C10

1
Out of stock

54

SCREW This part replaces 13602-05128.

02112-05127

14
Out of stock

55

PLATE

13628-32C00

1
Out of stock

56

HOLDER

13439-17C00

2
Out of stock

57

HOSE(9X13X600) This part replaces 13683-34C10.

09352-90134-600

1
Out of stock

58

PIPE

13685-32C00

2
Out of stock

59

HOSE, 3 WAY

13683-34C00

1
Out of stock

60

PROTECTOR, HOSE

13684-34C00

1
Out of stock

61

HOSE(7X11X600) This part replaces 13683-32C00.

09352-70119-600

2
Out of stock

62

SCREW This part replaces 13602-05148.

13601-05148-XC0

2
Out of stock

63

NIPPLE

13685-44B00

1
Out of stock

64

SEAL

13673-44B00

6
Out of stock

65

SCREW

13267-44B00

3
Out of stock

66

SPRING

13271-44B00

3
Out of stock

67

SPRING

13268-17C10

3
Out of stock

68

CLIP

13692-32C20

1
Out of stock

69

CLIP

13692-32C30

1
Out of stock

70

HOSE ASSY | CALIFORNIA ONLY

13683-10D00

1
Out of stock

71

HOSE ASSY | CALIFORNIA ONLY

13683-10D10

2
Out of stock

72

HOSE | CALIFORNIA ONLY This part replaces 13684-17D10.

09352-50901-600

2
Out of stock

73

NIPPLE | CALIFORNIA ONLY

13685-24D00

2
Out of stock

74

HOSE | CALIFORNIA ONLYL:125->60 This part replaces 13684-17D10.

09352-50901-600

2
Out of stock
