1993 Suzuki GSF400 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1993 Suzuki GSF400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

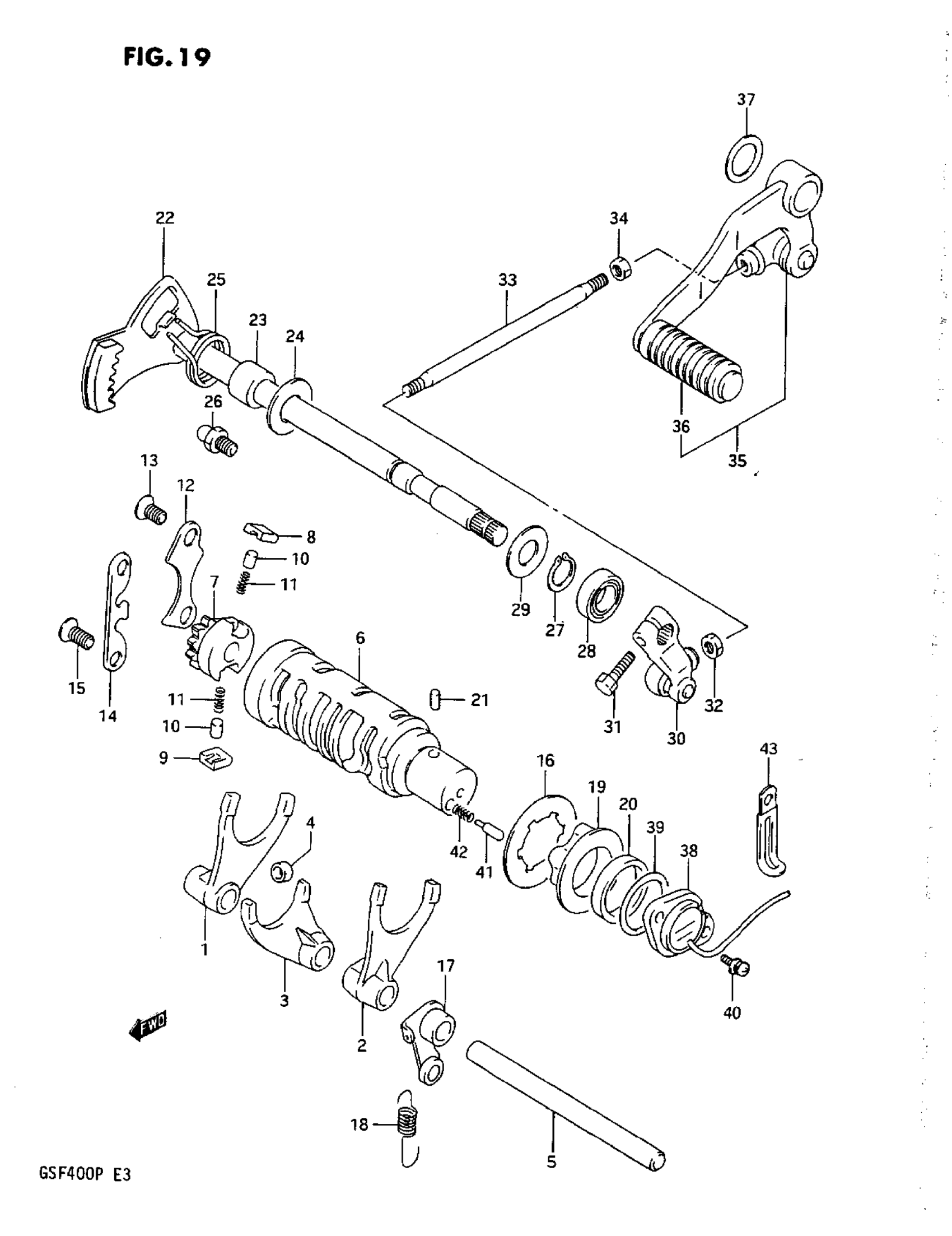

1993 Suzuki GSF400 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1

25211-30B00

1
Out of stock

2

FORK, GEAR SHIFT NO.2

25221-34C00

1
Out of stock

3

FORK, GEAR SHIFT NO.3

25231-30B01

1
Out of stock

4

SPACER (6X9.8X6)

09180-06086

1
Out of stock

5

SHAFT, GEAR SHIFT FORK | L:144

25411-30B00

1
Out of stock

6

CAM, GEAR SHIFT

25310-34C01

1
Out of stock

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

8

PAWL, GEAR SHIFT NO.1

25323-34201

1
Out of stock

9

PAWL, GEAR SHIFT NO.2

25324-34201

1
Out of stock

10

ROLLER

09261-05003

2
Out of stock

11

SPRING

09440-04003

2
Out of stock

12

LIFTER, GEAR SHIFT PAWL

25331-32C00

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

1
Out of stock

14

GUIDE, GEAR SHIFT CAM

25341-38401

1
Out of stock

15

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

16

WASHER

09167-30007

1
Out of stock

17

NO DESCRIPTION AVAILABLE This part replaces 25350-38400.

25350-38401

1
Out of stock

18

SPRING

09443-09033

1
Out of stock

19

PLATE,GEAR SHIFT CAM STOPPER This part replaces 25381-37400.

25381-37401

1
Out of stock

20

SPACER (25X3 0.1X6)

09180-25095

1
Out of stock

21

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

22

SHAFT, GEAR SHIFT

25510-10D00

1
Out of stock

23

SPACER (12X20X13.8)

09180-12126

1
Out of stock

24

THRUST WASHER

08211-12262

1

$2.77

In stock

25

SPRING

09444-26015

1
Out of stock

26

STOPPER, GEAR SHIFT ARM

25671-36A00

1
Out of stock

27

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

29

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

1
Out of stock

30

ARM,GEAR SHIFT This part replaces 25520-32C00.

25520-32C01

1
Out of stock

31

BOLT This part replaces 01107-06207.

01500-06207

1
Out of stock

32

.NUT This part replaces 08310-11067.

08310-00067

1
Out of stock

33

ROD, GEAR SHIFT LINK This part replaces 25525-07A01.

25525-07A10

1
Out of stock

34

NUT

09140-06011

1
Out of stock

35

LEVER ASSY,GEAR | MODEL M/N This part replaces 25600-10D00.

25600-10D11

1
Out of stock

35

LEVER ASSY,GEAR | MODEL P This part replaces 25600-10D01.

25600-10D11

1
Out of stock

36

RUBBER, GEAR SHIFT PEDAL

25652-20C00

1
Out of stock

37

WASHER This part replaces 09161-18003.

09160-18022

1
Out of stock

38

BASE ASSY, GEAR SHIFT TERMINAL

37720-32C00

1
Out of stock

39

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

1
Out of stock

40

SCREW This part replaces 09138-05003.

09138-05011

2
Out of stock

41

CONTACT

09209-05011

1
Out of stock

42

SPRING

09440-04010

1
Out of stock

43

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

2
Out of stock
