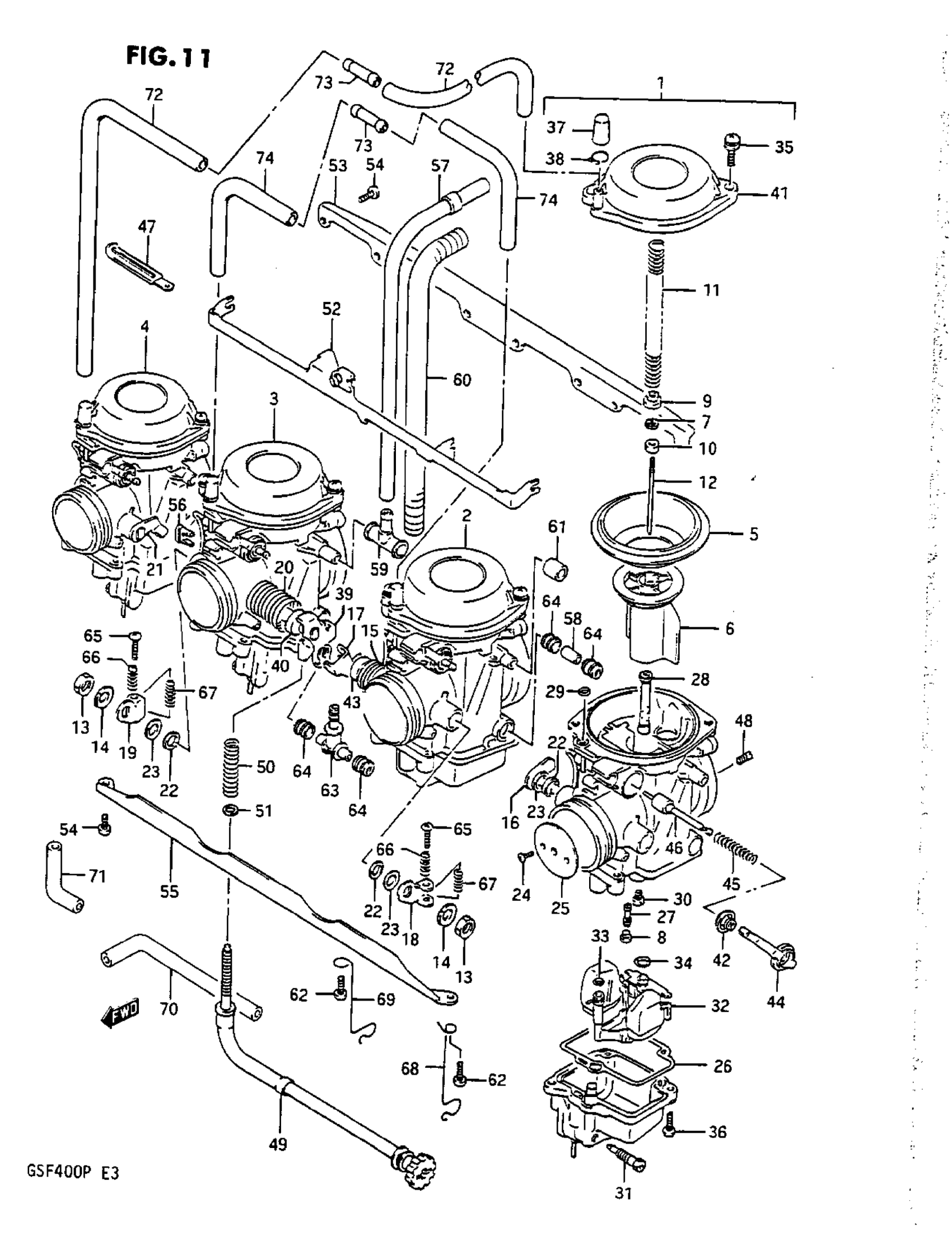

Suzuki GSF400 (1993) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | MODEL M/N

13201-10D20

Unavailable

1

CARBURETOR ASSY, LH | MODEL P

13201-10D90

Unavailable

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY, MODEL M/N

13201-10D40

Unavailable

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY, MODEL P

13201-10DA0

Unavailable

2

CARBURETOR ASSY, ML | MODEL M/N

13202-10D20

Unavailable

2

CARBURETOR ASSY, ML | MODEL P

13202-10D90

Unavailable

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY, MODEL M/N

13202-10D40

Unavailable

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY, MODEL P

13202-10DA0

Unavailable

3

CARBURETOR ASSY, MR | MODEL M/N

13203-10D20

Unavailable

3

CARBURETOR ASSY, MR | MODEL P

13203-10D90

Unavailable

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY, MODEL M/N

13203-10D40

Unavailable

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY, MODEL P

13203-10DA0

Unavailable

4

CARBURETOR ASSY, RH | MODEL M/N

13204-10D20

Unavailable

4

CARBURETOR ASSY, RH | MODEL P

13204-10D90

Unavailable

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY, MODEL M/N

13204-10D40

Unavailable

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY, MODEL P

13204-10DA0

Unavailable

5

DIAPHRAGM This part replaces 13507-32C00.

13507-32C02

$37.78

6

VALVE, PISTON

13501-32C00

Unavailable

7

CLIP, NEEDLE

13394-10010

$6.15

8

PLUG

13357-34C00

$4.33

9

RING

13382-42A00

$4.09

10

RING

13387-47010

$6.80

11

SPRING

13417-42A00

$6.39

12

NEEDLE, JET (5EZ74-1)

13383-10D10

Unavailable

13

NUT | ML, MR This part replaces 08310-22086.

08310-0008A

$1.86

14

LOCK WASHER | ML, MR This part replaces 08321-31086.

08321-0108A

$1.83

15

SPRING | ML, MODEL M/N

13573-17C00

Unavailable

15

SPRING | ML, MODEL P

13573-10D00

Unavailable

16

SHAFT ASSY | LH

13550-32C00

Unavailable

17

SHAFT ASSY | ML

13550-32C10

Unavailable

18

LEVER | ML

13553-17C00

Unavailable

19

LEVER, THROTTLE | MR

13553-44B00

Unavailable

20

SPRING | MR, MODEL M/N

13573-32C10

Unavailable

20

SPRING | MR, MODEL P

13573-10D10

Unavailable

21

SHAFT ASSY | RH

13550-32C30

Unavailable

22

SEAL | LH, RH:L, ML:MR:2

13556-44B00

$5.00

23

GASKET

13557-47070

$3.38

24

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.80

25

VALVE, THROTTLE (130) | MODEL M/N

13551-10D10

Unavailable

25

VALVE, THROTTLE (130) | MODEL P

13551-46D00

Unavailable

26

GASKET, FLOAT CHAMBER

13258-44B00

$8.95

27

JET, PILOT (32.5)

09492-32006

$12.30

28

JET, NEEDLE (0-9) | MODEL M/N

09494-00710

Unavailable

28

JET, NEEDLE (0-9) | MODEL P

09494-00792

Unavailable

28

JET, NEEDLE (0-9) | CALIFORNIA ONLY

09494-00715

Unavailable

29

O-RING

13509-17C00

$4.09

30

.JET (#102.5) | MODEL M/N

09491-20012

$12.38

30

JET, MAIN (105) | MODEL P

09491-21016

$13.18

31

SCREW, DRAIN

13247-28A00

$6.89

32

FLOAT/NEEDLE VALVE ASSY

13250-10D00

Unavailable

33

.O RING

13374-46710

$4.09

34

O RING This part replaces 13374-44080.

13374-35C00

$5.48

35

SCREW This part replaces 13602-34390.

02112-7516A

$2.42

36

SCREW This part replaces 13602-05128.

02112-05127

$1.97

37

CAP

13508-17C00

$4.47

38

CLIP This part replaces 13671-33600.

13671-05A40

$3.50

39

SHAFT ASSY | MR

13550-32C20

Unavailable

40

RING | MR

13574-32C10

Unavailable

41

COVER, DIAPHRAGM

13502-32C00

Unavailable

42

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$3.95

43

RING | ML

13574-32C00

Unavailable

44

HOLDER, GUIDE

13418-17C10

$15.68

45

SPRING

13417-09110

$7.12

46

PLUNGER ASSY

13411-10D00

Unavailable

47

CLAMP(L:80) | ML This part replaces 09404-06405.

09404-06036

$1.76

48

JET, PILOT AIR (1.45)

09493-29002

Unavailable

48

JET, PILOT AIR (1.55) | CALIFORNIA ONLY

09493-31001

$18.33

49

ADJUSTER SET This part replaces 13267-10D00.

13260-10DV0

Unavailable

50

SPRING This part replaces 13268-43410.

13375-14D10

$5.64

51

WASHER

13427-38300

$2.17

52

LEVER

13413-32C00

Unavailable

53

PLATE

13628-32C10

Unavailable

54

SCREW This part replaces 13602-05128.

02112-05127

$1.97

55

PLATE

13628-32C00

Unavailable

56

HOLDER

13439-17C00

$9.99

57

HOSE(9X13X600) This part replaces 13683-34C10.

09352-90134-600

$14.43

58

PIPE

13685-32C00

Unavailable

59

HOSE, 3 WAY

13683-34C00

$8.27

60

PROTECTOR, HOSE

13684-34C00

Unavailable

61

HOSE(7X11X600) This part replaces 13683-32C00.

09352-70119-600

$9.52

62

SCREW This part replaces 13602-05148.

13601-05148-XC0

$2.85

63

NIPPLE

13685-44B00

$10.71

64

SEAL

13673-44B00

$4.21

65

SCREW

13267-44B00

$4.62

66

SPRING

13271-44B00

$3.66

67

SPRING

13268-17C10

$5.82

68

CLIP

13692-32C20

Unavailable

69

CLIP

13692-32C30

Unavailable

70

HOSE ASSY | CALIFORNIA ONLY

13683-10D00

Unavailable

71

HOSE ASSY | CALIFORNIA ONLY

13683-10D10

Unavailable

72

HOSE | CALIFORNIA ONLY This part replaces 13684-17D10.

09352-50901-600

$7.37

73

NIPPLE | CALIFORNIA ONLY

13685-24D00

Unavailable

74

HOSE | CALIFORNIA ONLY L:125-60 This part replaces 13684-17D10.

09352-50901-600

$7.37
