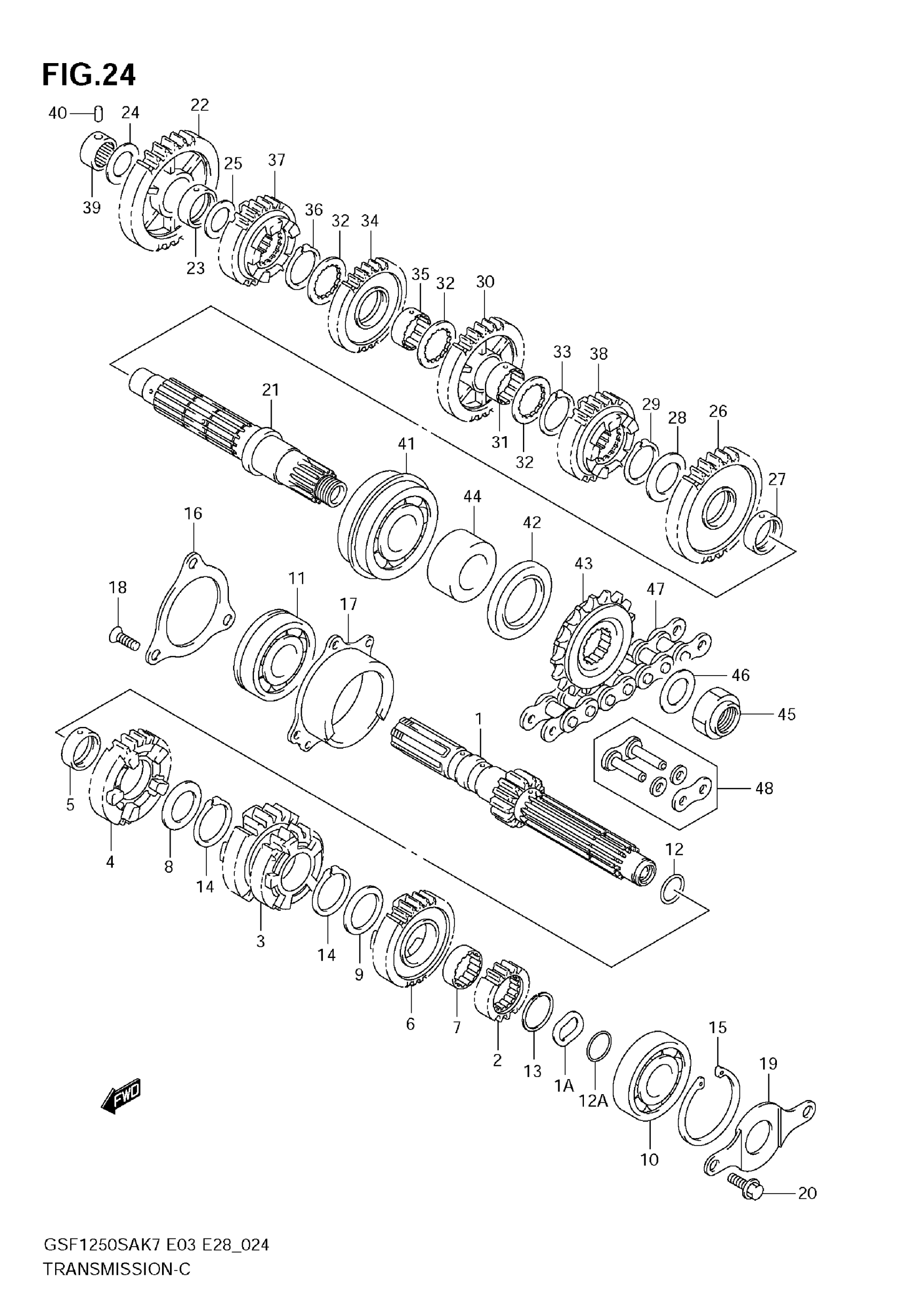

Suzuki GSF1250S (2009) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:13)

24120-18H00

Unavailable

1A

WASHER, CNTR

24127-18H00

Unavailable

2

GEAR, 2ND DRIVE This part replaces 24221-18H00.

24221-18H10

Unavailable

3

GEAR, 3RD & 4TH DRIVE | NT:20/23

24231-18H00

Unavailable

4

GEAR, 5TH DRIVE (NT:25)

24251-18H00

Unavailable

5

BUSH, 5TH DRIVE GEAR

24252-35F00

$27.88

6

GEAR, 6TH DRIVE (NT:28)

24261-18H00

Unavailable

7

BUSH, 6TH DRIVE

24262-35F00

$32.30

8

WASHER, 5TH DRIVE | 27X36X1.0

09160-27008

$4.00

9

WASHER, 6TH DRIVE

09167-27001

$2.56

10

BEARING, CNTR, L | 20X52X15

09262-20080

$42.13

11

BEARING, CNTR, R | 25X62X17

09262-25073

$23.39

12

O RING, CNTR SHAFT | D:1.9,ID:16.6

09280-17004

$3.98

12A

O RING, CNTR SHAFT | D:1.0,ID:19.5

09280-20001

$1.52

13

CIRCLIP, 2ND DRIVE

09380-27004

$3.33

14

CIRCLIP, 5TH/6TH

09380-27006

$2.73

15

CIRCLIP This part replaces 08331-4152A.

08331-41529

$4.83

16

RETAINER, CNTR SHAFT BRG, R

24751-18H00

Unavailable

17

HOUSING, CNTR SHAFT, R

24771-18H00

Unavailable

18

SCREW, HOUSING (6X20)

09139-06159

$4.45

19

RETAINER, CL PUSH ROD

24741-18H00

Unavailable

20

SCREW, PUSH (6X12)

09103-06236

$2.71

21

SHAFT, DRIVE

24131-18H10

Unavailable

22

GEAR, 1ST DRIVEN (NT:40)

24311-18H00

Unavailable

23

BUSH, 1ST DRIVEN

24312-02F00

$31.78

24

WASHER, 1ST, R | 20X34X1.0

09181-20251

$2.77

25

WASHER, 1ST, L | 22X34X1.0

09181-22223

$2.85

26

GEAR, 2ND DRIVEN (NT:35)

24321-18H00

Unavailable

27

BUSH, 2ND DRIVEN

24322-02F01

$24.28

28

WASHER, 2ND DRIVEN | 27X36X1.0

09160-27008

$4.00

29

CIRCLIP, 2ND DRIVEN

09380-27006

$2.73

30

GEAR, 3RD DRIVEN (NT:31)

24331-18H00

Unavailable

31

BUSH, 3RD DRIVEN GEAR

24262-17E01

$43.58

32

WASHER, 3RD & 4TH DRIVEN

24333-02F00

$6.62

33

CIRCLIP, 3RD DRIVEN

09380-27006

$2.73

34

GEAR, 4TH DRIVEN (NT:30)

24341-18H00

Unavailable

35

BUSH, 4TH DRIVEN GEAR

24262-17E01

$43.58

36

CIRCLIP, 4TH DRIVEN

09380-27006

$2.73

37

GEAR, 5TH DRIVEN (NT:29)

24351-18H00

Unavailable

38

GEAR, 6TH DRIVEN (NT:30)

24361-18H00

Unavailable

39

BEARING, DRIVE SHAFT, R | 20X34X3.5

09263-20087

$54.53

40

PIN, DRIVE SHADFT, R

09261-06003

$1.49

41

BEARING, DRIVE SHAFT, L | 30X62X23.8

09267-30011

$181.72

42

SEAL, DRIVE SHAFT OIL

09283-42018

$32.83

43

SPROCKET, ENGINE (NT:18)

27510-21A40

$173.42

44

SPACER, SPROCKET

27531-18H00

Unavailable

45

NUT

09159-20004

$14.15

46

WASHER (25X40X1.4)

09160-25035

$5.30

47

CHAIN ASSY (RK50GSVZ3M,120LE) | L:120!118

27600-24F20-120

$384.08

48

JOINT SET, CHAIN | OPT

27620-24F20

$24.73
