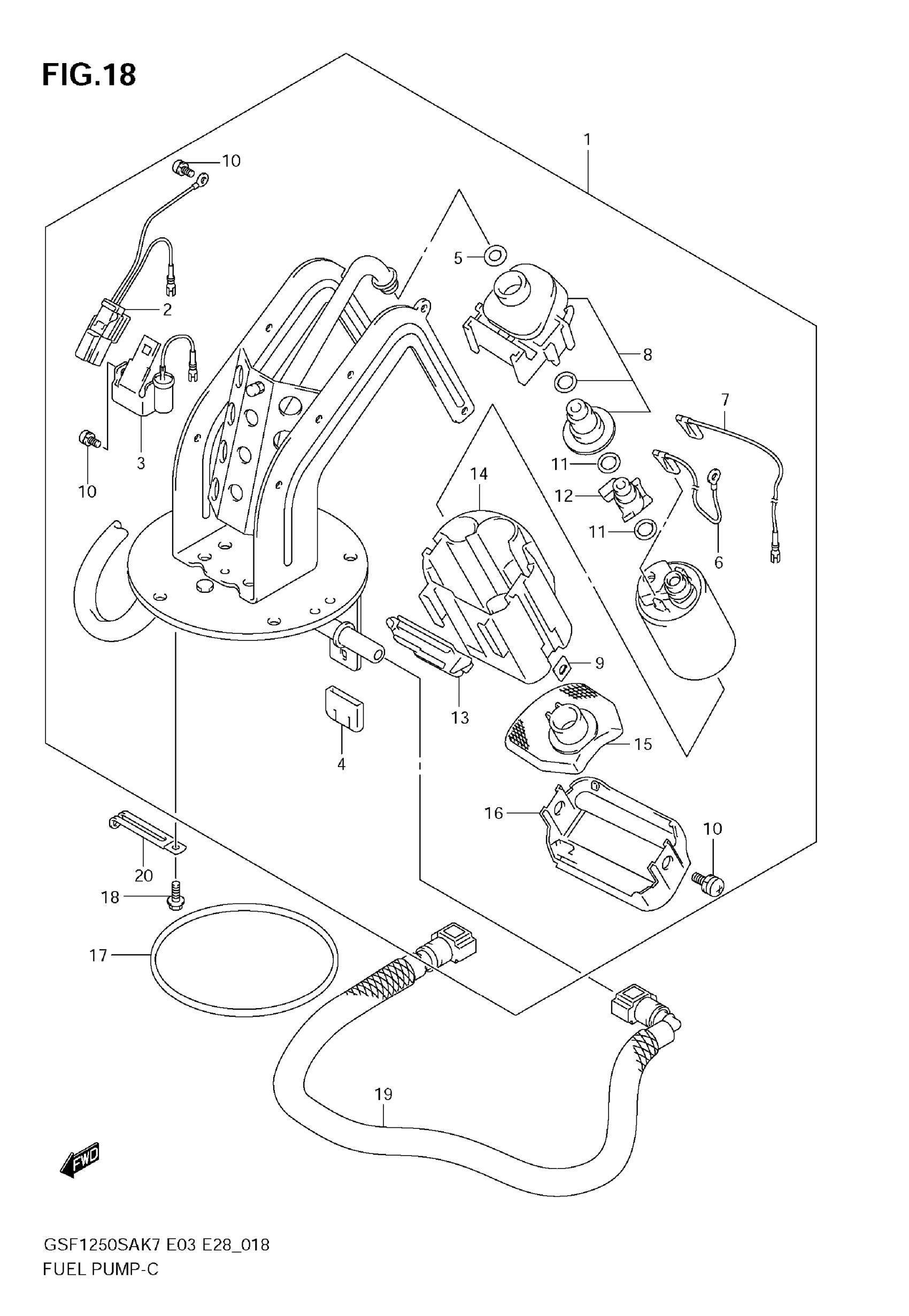

Suzuki GSF1250S (2009) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL | Includes Item(s) 2 - 16 This part replaces 15100-18H00.

15100-18H11

$485.59

2

HARNESS, GAUGE

15246-18H00

$98.52

3

THERMISTOR

15240-18H00

$226.37

4

CAP

15583-18H00

Unavailable

5

O RING

15113-35F00

$8.15

6

WIRE, EARTH

15114-05H00

Unavailable

7

WIRE, LEAD

15115-05H00

Unavailable

8

REGULATOR

15610-18H00

$224.25

9

STOPPER

15117-05H00

$8.52

10

SCREW

15116-10F00

$6.30

11

O RING

15113-05H00

$18.81

12

JOINT

15112-05H00

$31.73

13

COVER

15118-18H00

$34.65

14

CUP

15111-18H00

$47.88

15

STRAINER

15420-05H00

$37.68

16

CAP This part replaces 15425-18H00.

15426-05H00

$20.78

17

O-RING

15201-35F00

$25.27

18

BOLT

07120-0612A

$2.50

19

HOSE,FUEL | Includes Item(s) 20 This part replaces 15810-18H00.

15810-18H10

$133.88

20

CLAMP, HARNESS

09404-06429

$1.82
