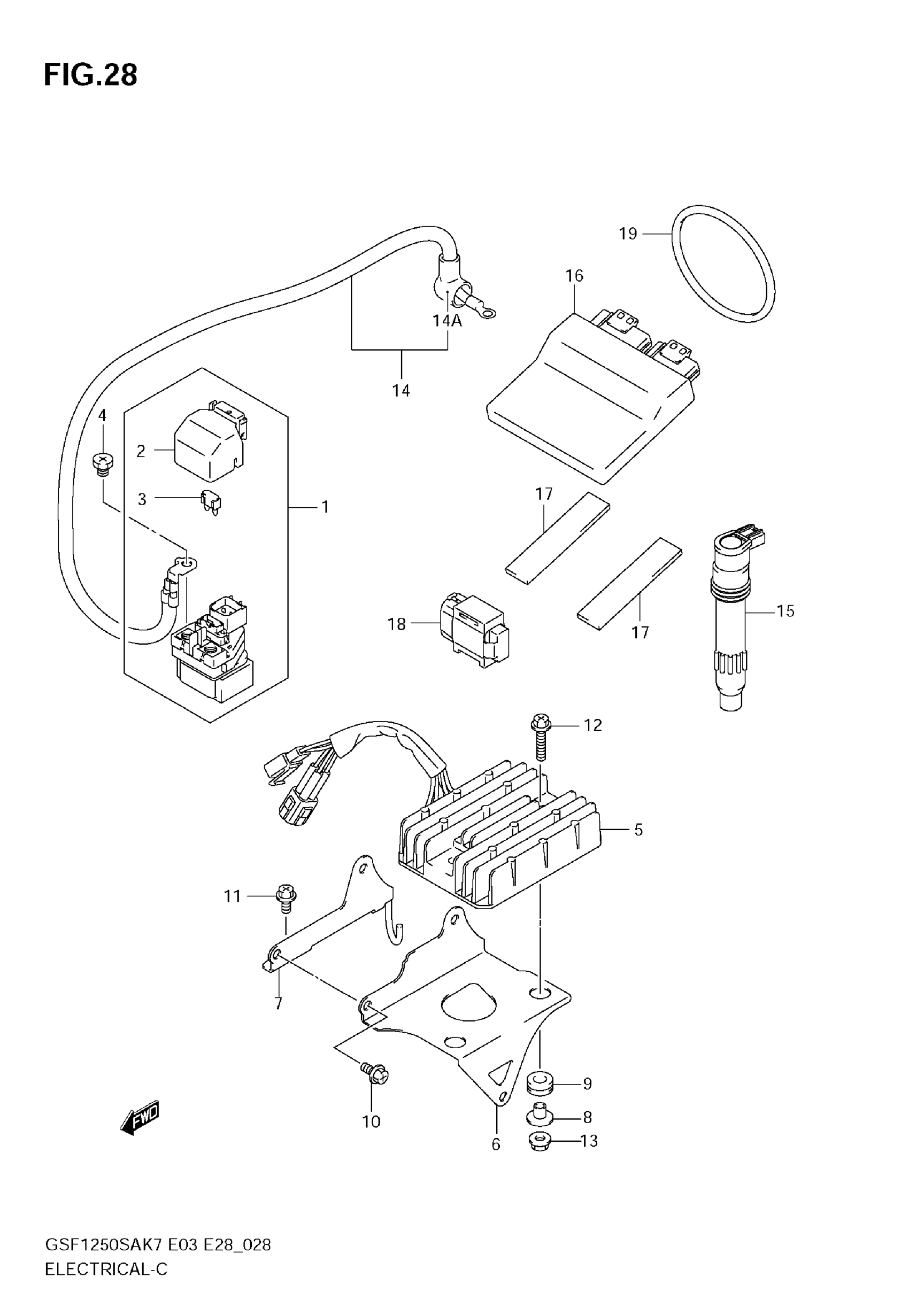

Suzuki GSF1250S (2009) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR | MODEL K7 This part replaces 31800-38G00.

31800-38G10

$89.07

1

RELAY ASSY,STARTING MOTOR | MODEL K8/K9; Includes Item(s) 2 - 3

31800-38G10

$89.07

2

COVER

31861-38G00

$5.52

3

FUSE (30A)

09481-30501

$2.34

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY This part replaces 32800-18H00.

32800-47H00

$240.89

6

BRACKET, RECT NO.1

32830-18H10

Unavailable

7

BRACKET, RECT NO.2

32830-18H20

Unavailable

8

SPACER, RECT | 6.2X8.4X6.9

09180-06325

$3.47

9

CUSHION (8.4X18X6)

09320-08066

$7.44

10

BOLT, RECT BRKT

01547-0612A

$2.01

11

BOLT, RECT BRKT

01547-0612A

$2.01

12

BOLT RECT

01547-0625A

$2.01

13

NUT, RECT BRKT

08316-1006B

$2.50

14

WIRE, STARTER MOTOR LEAD | Includes Item(s) 14A

33810-18H00

Unavailable

14A

CAP, STARTER MOTOR

33624-18H10

$11.18

15

COIL ASSY,IGNITION This part replaces 33410-35F10.

33410-35F11

$130.57

16

CONTROL UNIT,FI This part replaces 32920-18H10.

32920-18H11

Unavailable

16

CONTROL UNIT,FI | E33 This part replaces 32920-18H20.

32920-18H21

Unavailable

17

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.17

18

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

19

BAND, FI CONTROL UNIT | D:3.53,ID:69.44

09280-70004

$3.52
