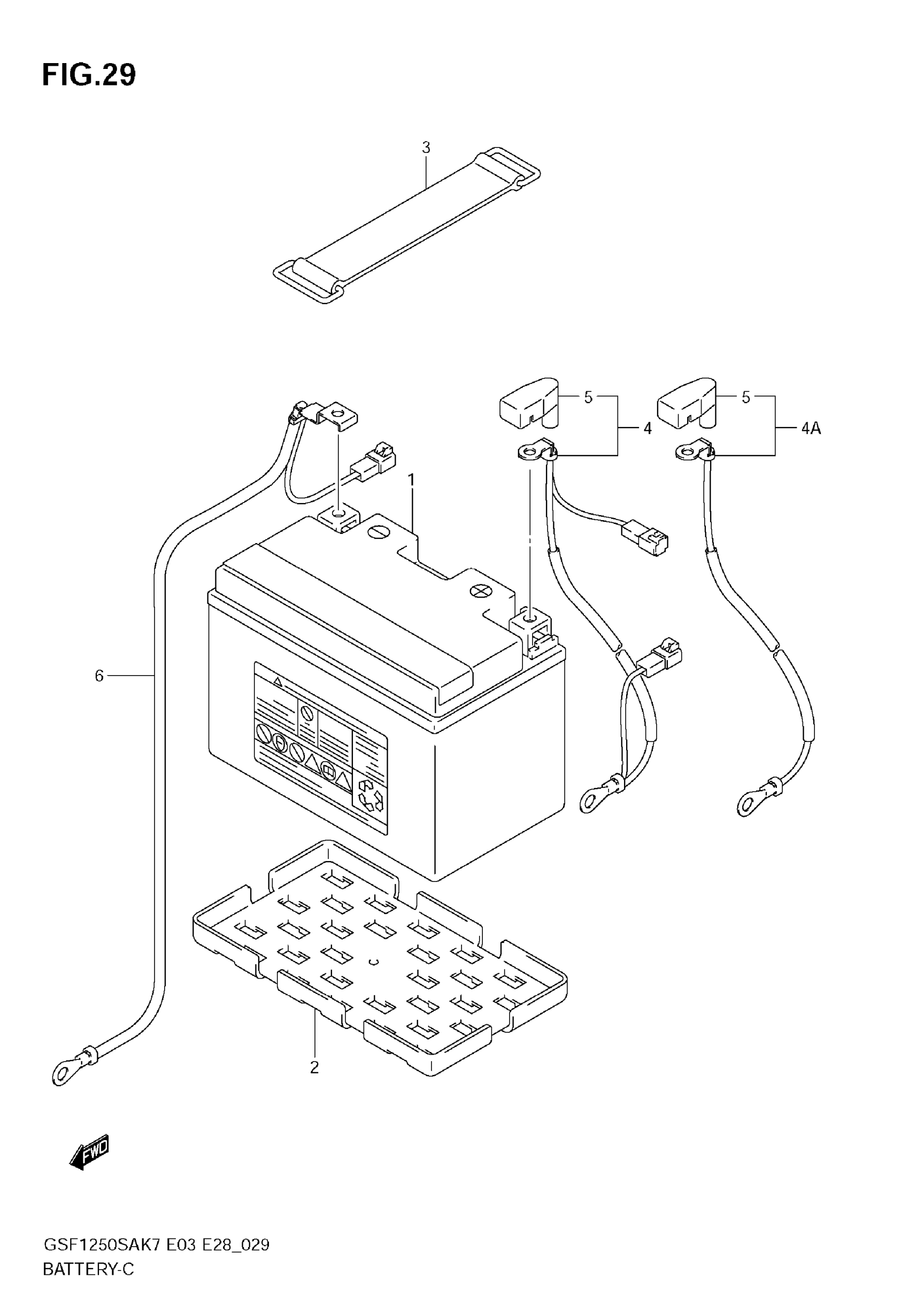

Suzuki GSF1250S (2009) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) | FT12ABS,12V10AH This part replaces 33610-14G10.

33610-14G11

$142.85

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

BAND, BATTERY

09462-00046

$3.33

4

WIRE, BATTERY (+)LEAD | GSF1200SA

33820-18H10

Unavailable

4A

WIRE, BATTERY (+)LEAD | GSF1200S; Includes Item(s) 5

33820-18H00

Unavailable

5

.CAP, BATTERY PLUS LEAD (+)

33624-27G00

$11.18

6

WIRE, BATTERY MINUS (-)

33860-18H10

Unavailable
