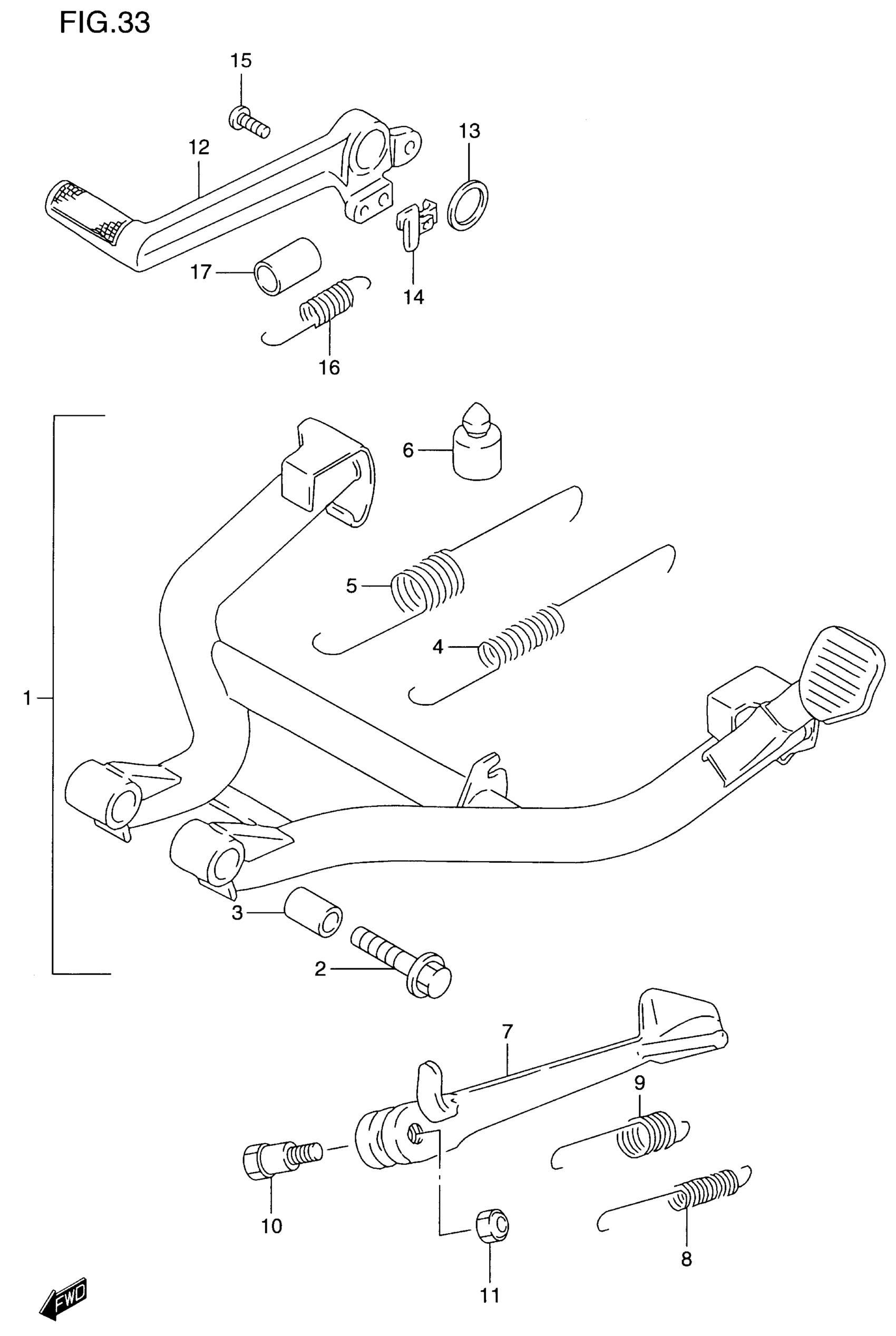

Suzuki GSF1200S (2000) STAND Diagram

#

Description
Price

1

STAND SET, CENTER | Includes Item(s) 2 - 6

42100-26822

Unavailable

2

BOLT

09103-10126

$4.07

3

SPACER

09180-10113

$15.70

4

SPRING, INNER

09443-14059

$10.57

5

SPRING, OUTER

09443-22013

$9.95

6

CUSHION

09321-10017

$6.95

7

STAND, PROP

42310-27E10

Unavailable

8

SPRING, INNER

09443-12036

$7.08

9

SPRING, OUTER

09443-19010

$5.97

10

BOLT

09111-10027

$3.08

11

NUT | MODEL V

09159-10027

$2.84

11

NUT, REAR | MODEL W/X/Y This part replaces 08319-21103.

08319-2110A

$2.29

12

PEDAL, BRAKE

43111-31E01

$181.08

13

WASHER (18X24X1)

09160-18022

$2.80

14

BRACKET, STOP SWITCH SPRING

43560-32C00

$6.40

15

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45

16

SPRING

09443-13029

$4.84

17

TUBE, SPRING GUIDE

43261-17C00

$6.92
