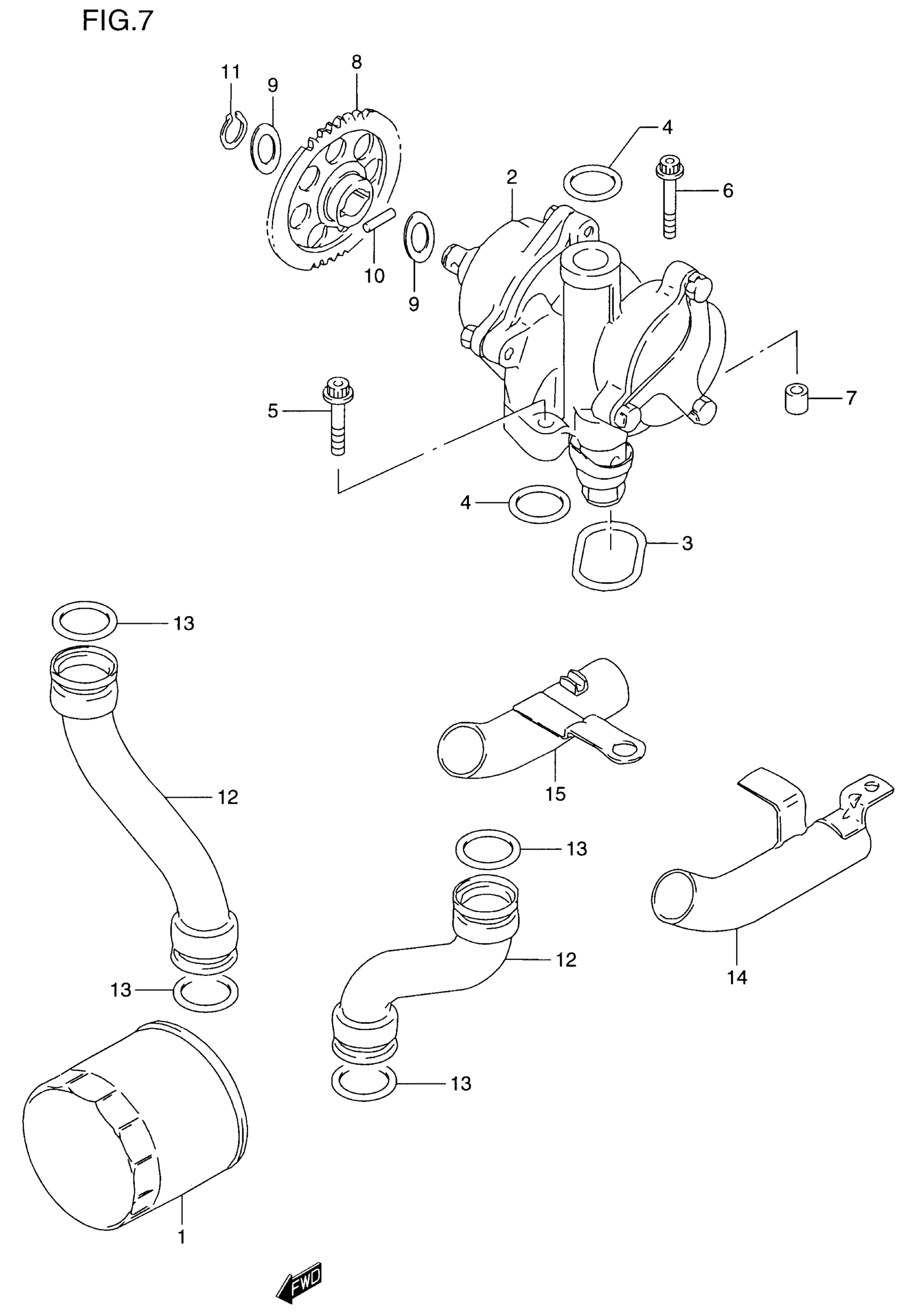

Suzuki GSF1200S (2000) OIL PUMP Diagram

#

Description
Price

1

FILTER, ENGINE OIL | MODEL V This part replaces 16510-06B01.

16510-07J00

$12.35

1

FILTER, ENGINE OIL | MODEL W/X/Y This part replaces 16510-34E00.

16510-07J00

$12.35

2

PUMP ASSY, OIL

16400-06B20

Unavailable

3

O RING, PUMP

16491-27A01

$10.51

4

O RING (D:3.2,ID:17.8)

09280-18009

$5.42

5

BOLT | MODEL V/W This part replaces 07130-06303.

07130-0630B

$3.13

5

BOLT (6X30) | MODEL X/Y

09106-06089

$4.35

6

BOLT | MODEL V/W This part replaces 07130-06353.

07130-0635B

$3.15

6

BOLT (6X35) | MODEL X/Y

09106-06088

$4.52

7

PIN

04211-09129

$1.70

8

GEAR, PUMP DRIVEN (NT:37)

16332-19C00

$83.30

9

SHIM

08221-12205

$2.50

10

PIN

09261-05006

$1.52

11

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.82

12

PIPE, OUTLET

16481-48B01

$56.53

13

O RING (D:3.7,ID:21.7)

09280-22016

$5.18

14

PIPE, OUTLET UNDER LH

16530-27A02

Unavailable

15

PIPE, OUTLET UNDER RH

16540-27A02

Unavailable
