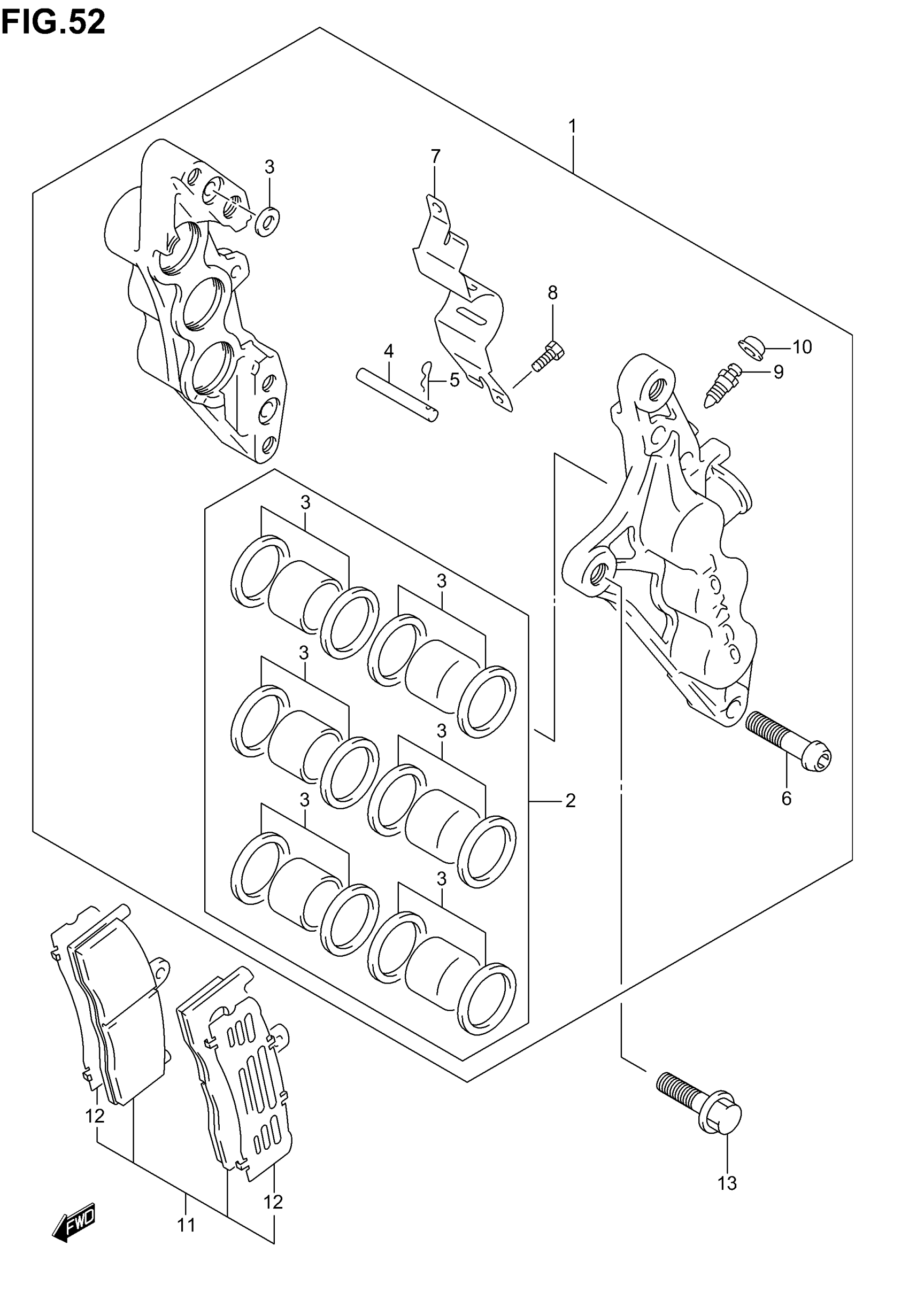

Suzuki GSF1200 (2005) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-33E30-999

Unavailable

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 10

59300-33E30-999

Unavailable

2

PISTON SET This part replaces 59300-33870.

59300-33871

$157.13

3

SEAL SET, PISTON This part replaces 59300-33880.

59300-33881

$49.54

4

PIN

69141-45000

$4.86

5

.CLIP, PAD PIN

69142-45000

$3.97

6

BOLT

59145-18G00

$11.20

7

COVER

59151-46E00

$33.92

8

.SCREW

59153-22D00

$7.12

9

BLEEDER

59121-18410

$7.99

10

CAP

55156-66310

$4.73

11

PAD & SHIM SET | Includes Item(s) 12

59302-33840

$91.43

12

SHIM

59171-33E00

Unavailable

13

BOLT | MODEL K1/K2/K3/K4 This part replaces 01550-10303.

01550-1030A

$3.25

13

BOLT | MODEL K5

09103-10379

$4.92
