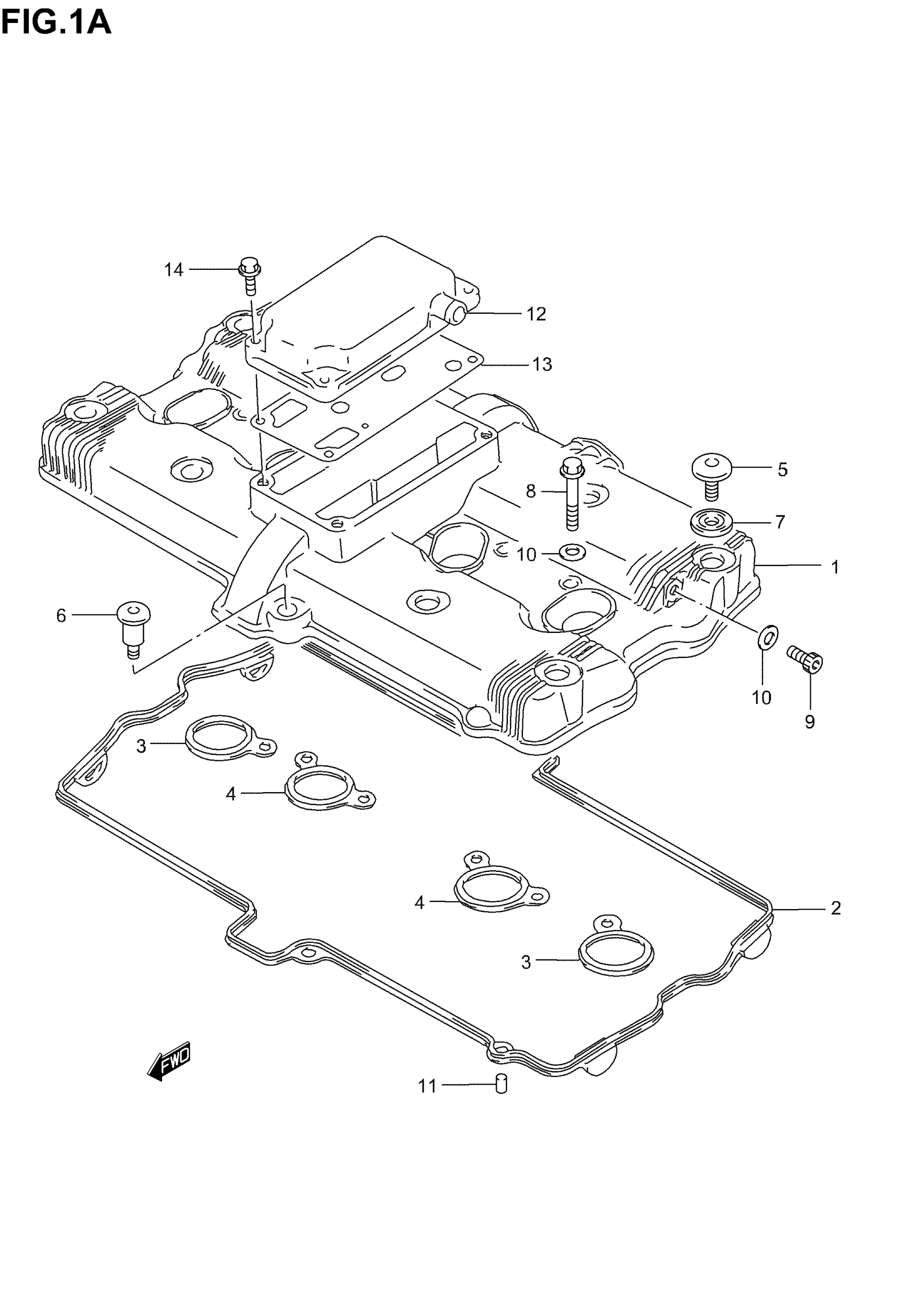

Suzuki GSF1200 (2005) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-27E00

Unavailable

2

GASKET,CYLINDER This part replaces 11173-06B02.

11173-06B03

$25.85

3

GASKET,HEAD COV This part replaces 11178-27A01.

11178-27A02

$6.50

4

GASKET,HEAD COV This part replaces 11179-27A02.

11179-27A03

$6.91

5

BOLT (7X17.5) | MODEL K1/K2/K3/K4 This part replaces 09106-07009.

09106-07021

$4.19

5

BOLT | MODEL K5

09106-07020

Unavailable

6

BOLT (L:19)

09106-07010

$4.38

7

WASHER

09161-11008

$4.17

8

BOLT, UNION

11181-27E00

$4.47

9

BOLT | MODEL K1/K2/K3/K4 This part replaces 07130-08123.

07130-0812A

$4.03

9

BOLT (8X12) | MODEL K5

09106-08171

Unavailable

10

GASKET (8.2X16X1)

09168-08029

$2.39

11

PIN

04221-08129

$2.07

12

COVER, BREATHER

11176-26D00

Unavailable

13

GASKET

11177-17E00

$10.09

14

BOLT This part replaces 01550-06253.

01550-0625A

$2.01
