1983 Suzuki GS850GL Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1983 Suzuki GS850GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

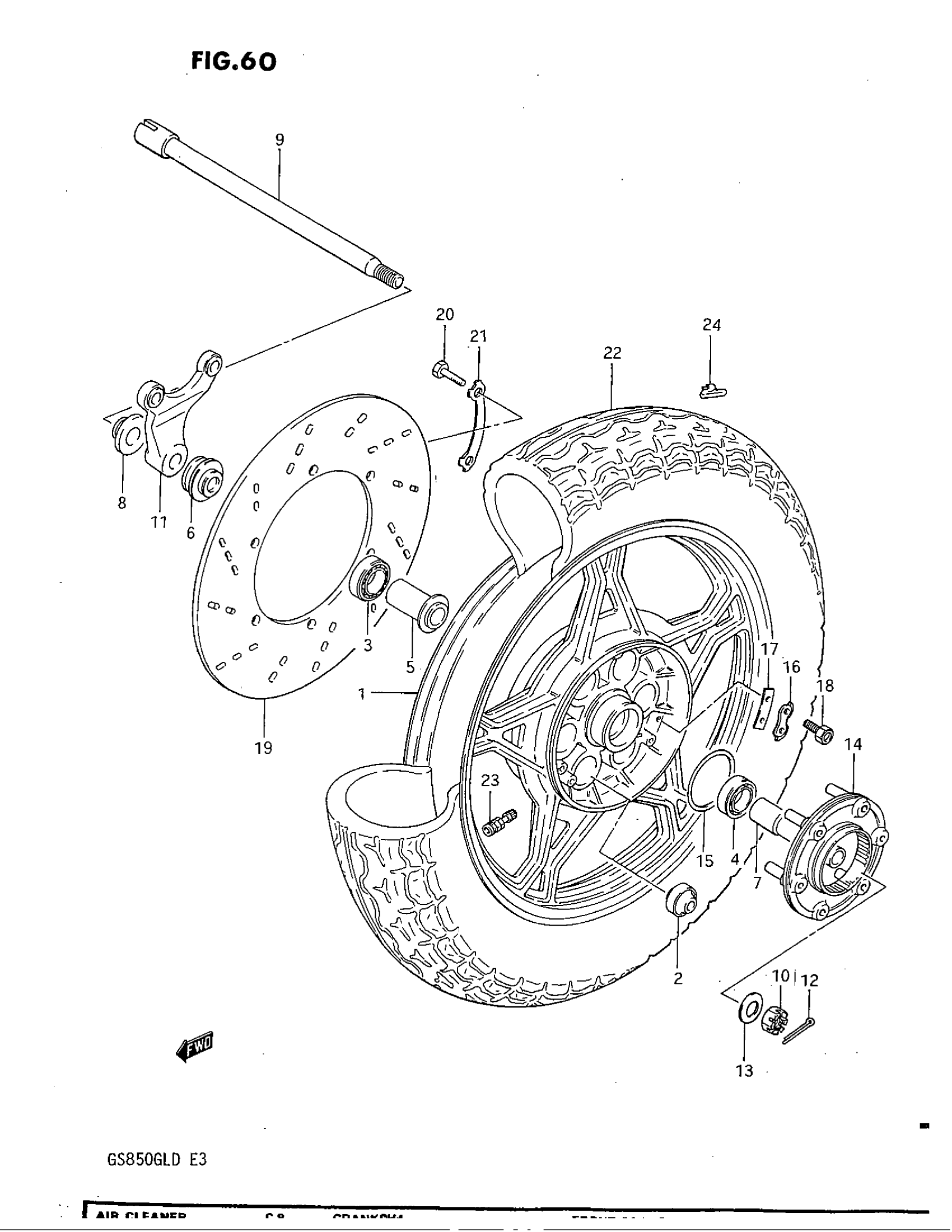

1983 Suzuki GS850GL Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (16XMT2.75) BLACK | Includes Item(s) 2

64100-45820-291

1
Out of stock

2

BUSHING

09319-12019

6
Out of stock

3

BEARING This part replaces 08123-63037.

08123-6303B

1
Out of stock

4

BEARING, LH

08143-63037

1
Out of stock

5

SPACER, BEARING

64730-34200

1
Out of stock

6

NO DESCRIPTION AVAILABLE This part replaces 64740-47010.

64740-47011

1
Out of stock

7

SPACER, LH (L:85)

64772-45101

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 64741-34300.

64741-34301

1
Out of stock

9

AXLE, REAR

64711-45300

1
Out of stock

10

NUT

09141-16001

1
Out of stock

11

BRACKET, REAR CALIPERS

69721-47001

1
Out of stock

12

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

13

WASHER (17.5x36x3.2)

09160-17018

1
Out of stock

14

JOINT, HUB DRIVEN This part replaces 64680-45112.

64680-45113

1
Out of stock

15

O RING

09280-65003

1
Out of stock

16

WASHER

09169-06030

3
Out of stock

17

THRUST WASHER (T:1.6)

64677-45110

3
Out of stock

18

BOLT

09119-06049

6
Out of stock

19

DISK, REAR BRAKE

69211-34250

1
Out of stock

20

BOLT

09100-08140

6
Out of stock

21

WASHER This part replaces 09169-08027.

09169-08030-XC0

3
Out of stock

22

TIRE, REAR (130/90-16 67H) | BS

65100-45330

1
Out of stock

22

TIRE, REAR (130/90-16 67H) | DUNLOP

65100-45350

1
Out of stock

23

VALVE, TUBLESS This part replaces 55220-45100.

43130-24A40

1
Out of stock

24

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

1
Out of stock

24

BALANCER (30G)

55412-45100

—
Out of stock

24

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

1
Out of stock
