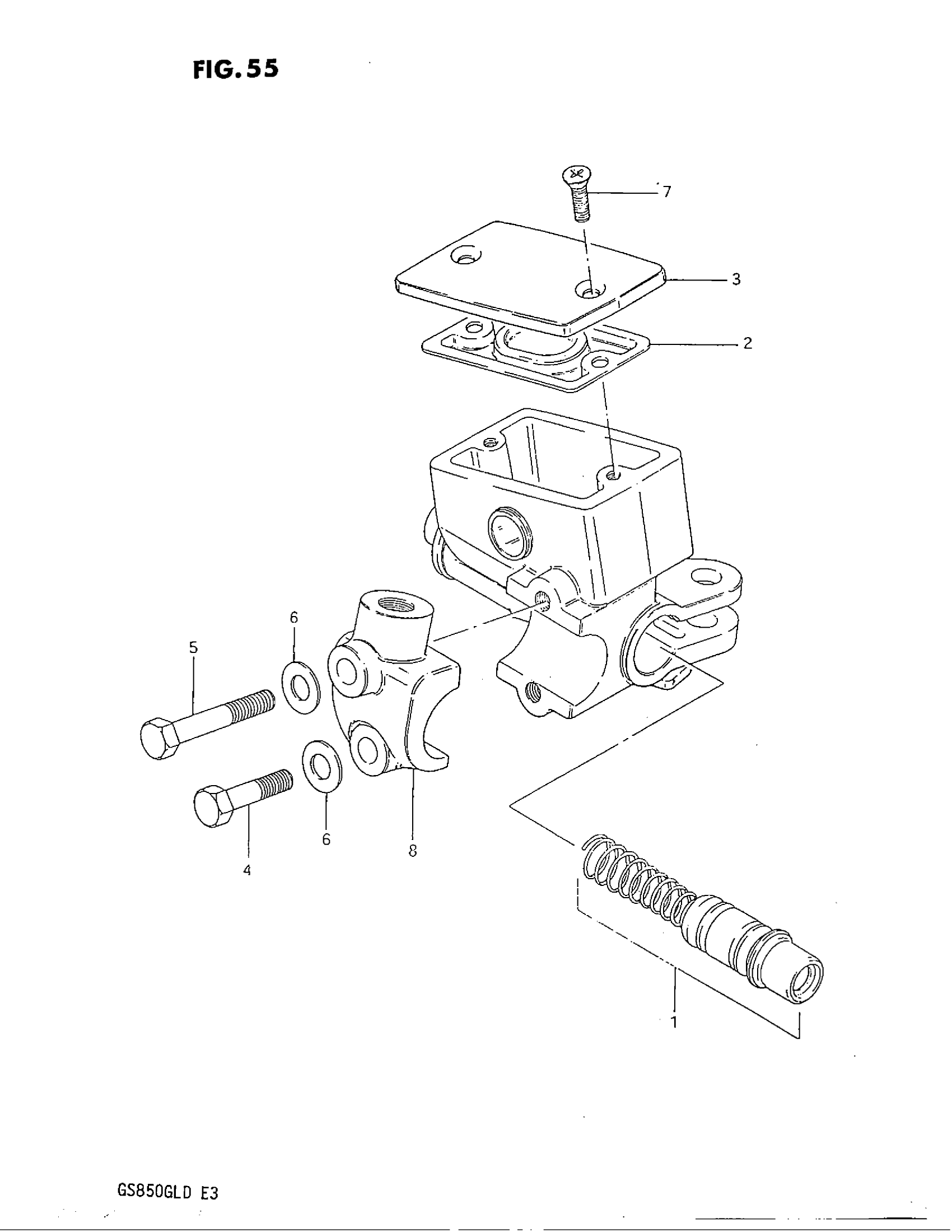

Suzuki GS850GL (1983) FRONT MASTER CYLINDER Diagram

#

Description

Price

CYLINDER ASSY, MASTER | Includes Item(s) 1 - 8

59600-45330

Unavailable

1

PISTON & CUP SET

59600-45831

Unavailable

2

DIAPHRAGM This part replaces 69667-49300.

59667-49460

$9.36

3

CAP This part replaces 69669-49330.

59669-41C00

$32.03

4

BOLT This part replaces 01107-06258.

01500-06257

$2.01

5

BOLT This part replaces 01107-06408.

01500-0640B

$2.74

6

WASHER This part replaces 08322-21068.

08322-01067

$1.93

7

SCREW

69689-49300

$1.81

8

HOLDER

59671-44300

$19.60
