1983 Suzuki GS850GL Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1983 Suzuki GS850GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

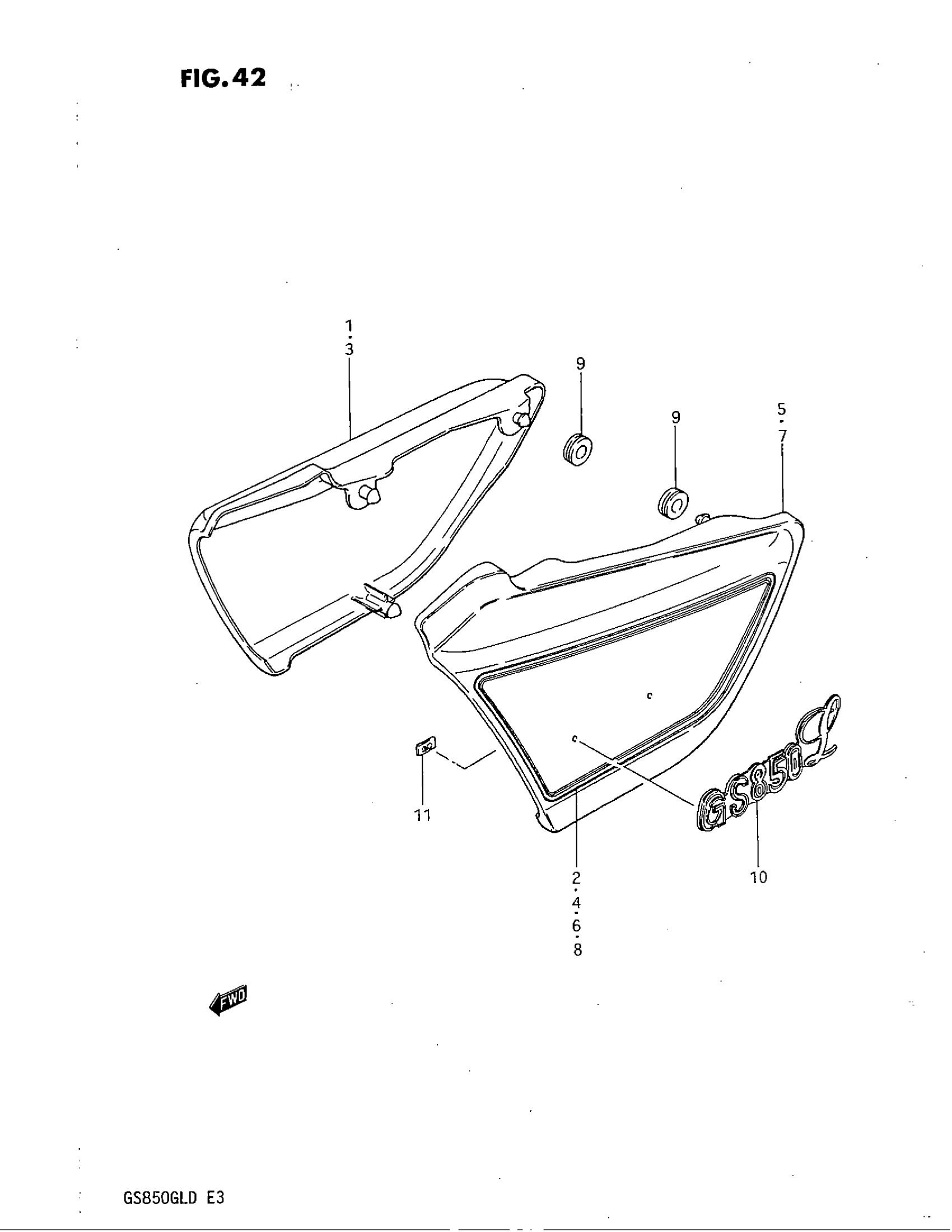

1983 Suzuki GS850GL Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH | Includes Item(s) 2 This part replaces 47101-45850-019.

47111-45310

1
Out of stock

2

TAPE SET

68136-45320-78U

1
Out of stock

3

COVER, FRAME RH | Includes Item(s) 4 This part replaces 47100-45870-12S.

47111-45310

1
Out of stock

4

TAPE SET, RH

68136-45320-78V

1
Out of stock

5

COVER,FRAME,LH | Includes Item(s) 6 This part replaces 47201-45850-019.

47211-45310

1
Out of stock

6

TAPE SET

68146-45320-78U

1
Out of stock

7

COVER,FRAME,LH | Includes Item(s) 8 This part replaces 47200-45870-12S.

47211-45310

1
Out of stock

8

TAPE SET, LH

68146-45320-78V

1
Out of stock

9

CUSHION

09320-08018

6
Out of stock

10

EMBLEM This part replaces 68131-45310.

68131-45330

2
Out of stock

11

NUT

09148-03002

4
Out of stock
