1981 Suzuki GS850GL Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1981 Suzuki GS850GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

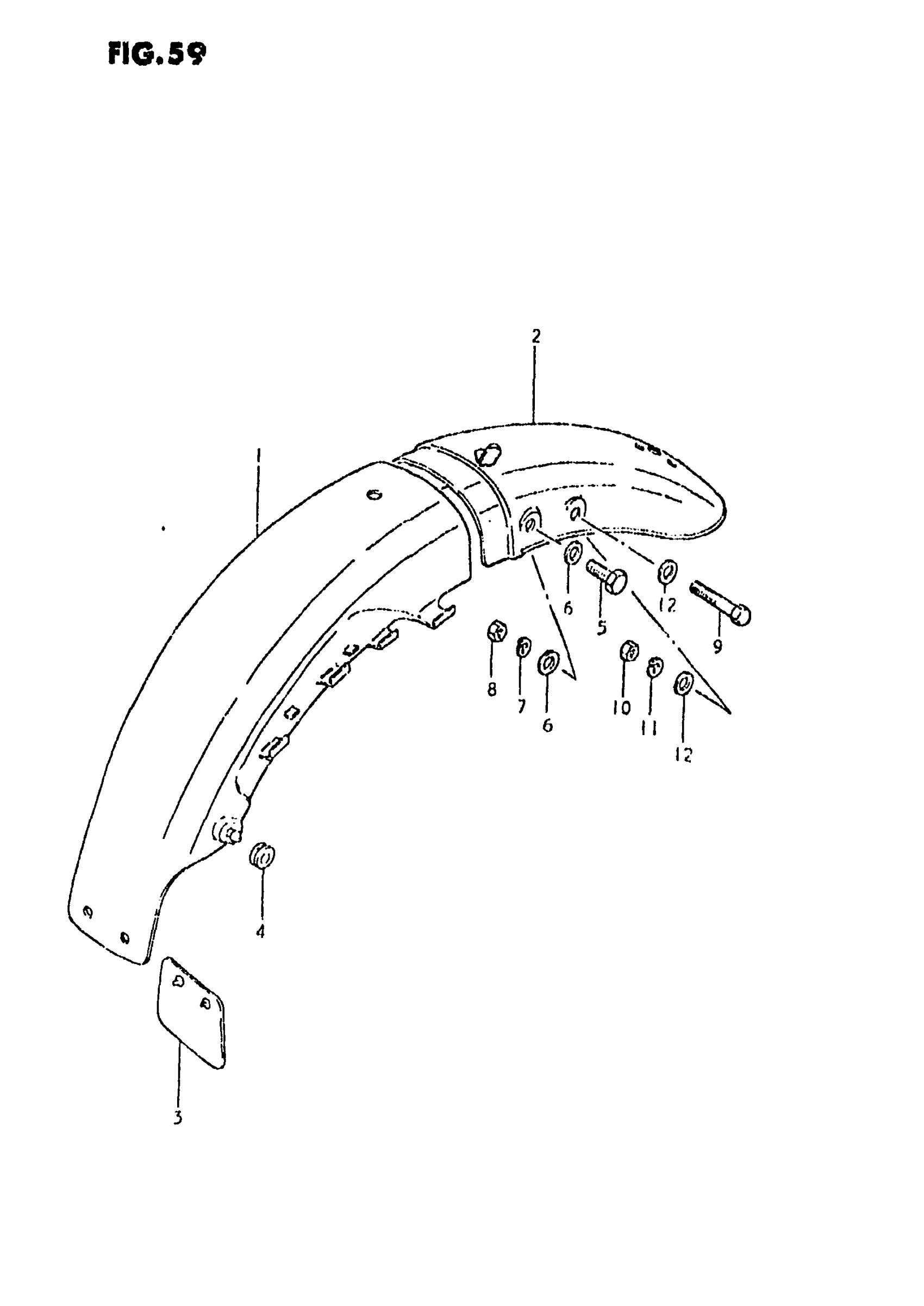

1981 Suzuki GS850GL Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 63112-49100.

63112-49101

1
Out of stock

1

BODY,RR FENDER | MODEL X This part replaces 63112-49110.

63112-49004

1
Out of stock

2

FENDER, REAR | MODEL T

63110-45301

1
Out of stock

2

FENDER, REAR | MODEL X

63110-45310

1
Out of stock

3

MUD GUARD, REAR FENDER

63411-31900

1
Out of stock

4

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

2
Out of stock

5

2

$2.68

In stock

6

WASHER This part replaces 08322-11088.

08322-01087

4
Out of stock

7

2

$2.28

In stock

8

2

$1.93

In stock

9

BOLT | MODEL T

01204-08407

2

$2.31

In stock

9

BOLT | MODEL X

01204-08257

2

$2.13

In stock

10

2

$1.93

In stock

11

2

$2.28

In stock

12

WASHER This part replaces 08322-21088.

08322-01087

4
Out of stock
