1981 Suzuki GS850GL Handlebar - Front Flnder Diagram

← All diagrams

Find the part on the Handlebar - Front Flnder diagram for your 1981 Suzuki GS850GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

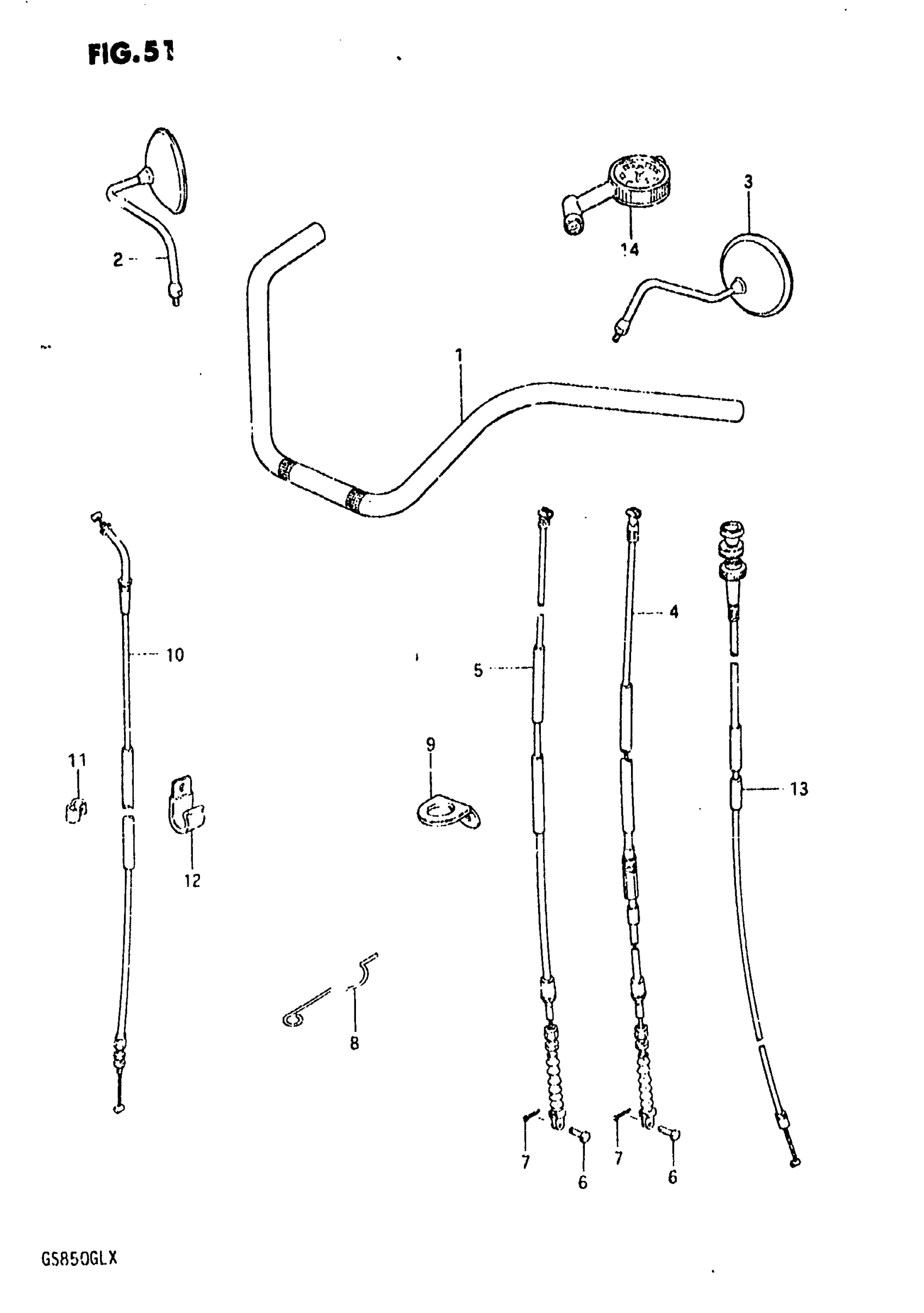

1981 Suzuki GS850GL Handlebar - Front Flnder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR | MODEL T This part replaces 56111-49100.

56111-45200

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 56110-45130.

56110-45131

1
Out of stock

2

1

$78.15

In stock

3

1

$110.17

In stock

4

CABLE, CLUTCH | MODEL T

58200-45300

1
Out of stock

5

CABLE, CLUTCH | MODEL X

58200-45140

1
Out of stock

6

PIN

09200-06011

1
Out of stock

7

1

$1.31

In stock

8

GUIDE

58621-45100

1
Out of stock

9

GUIDE

59243-45010

1
Out of stock

10

CABLE,THROTTLE | MODEL T This part replaces 58300-45210.

58300-47X02

1
Out of stock

10

CABLE, THROTTLE | MODEL X This part replaces 58300-45120.

58300-45221

1
Out of stock

11

CLIP

09408-00002

1

$2.64

In stock

12

CLAMP This part replaces 09403-00069.

09404-06037

1
Out of stock

13

CABLE, STARTER This part replaces 58400-47000.

58400-45110

1
Out of stock

14

GAUGE, FRONT FORK AIR

96200-41330

1
Out of stock
← Front Wheel Rear Swinging ARM →
