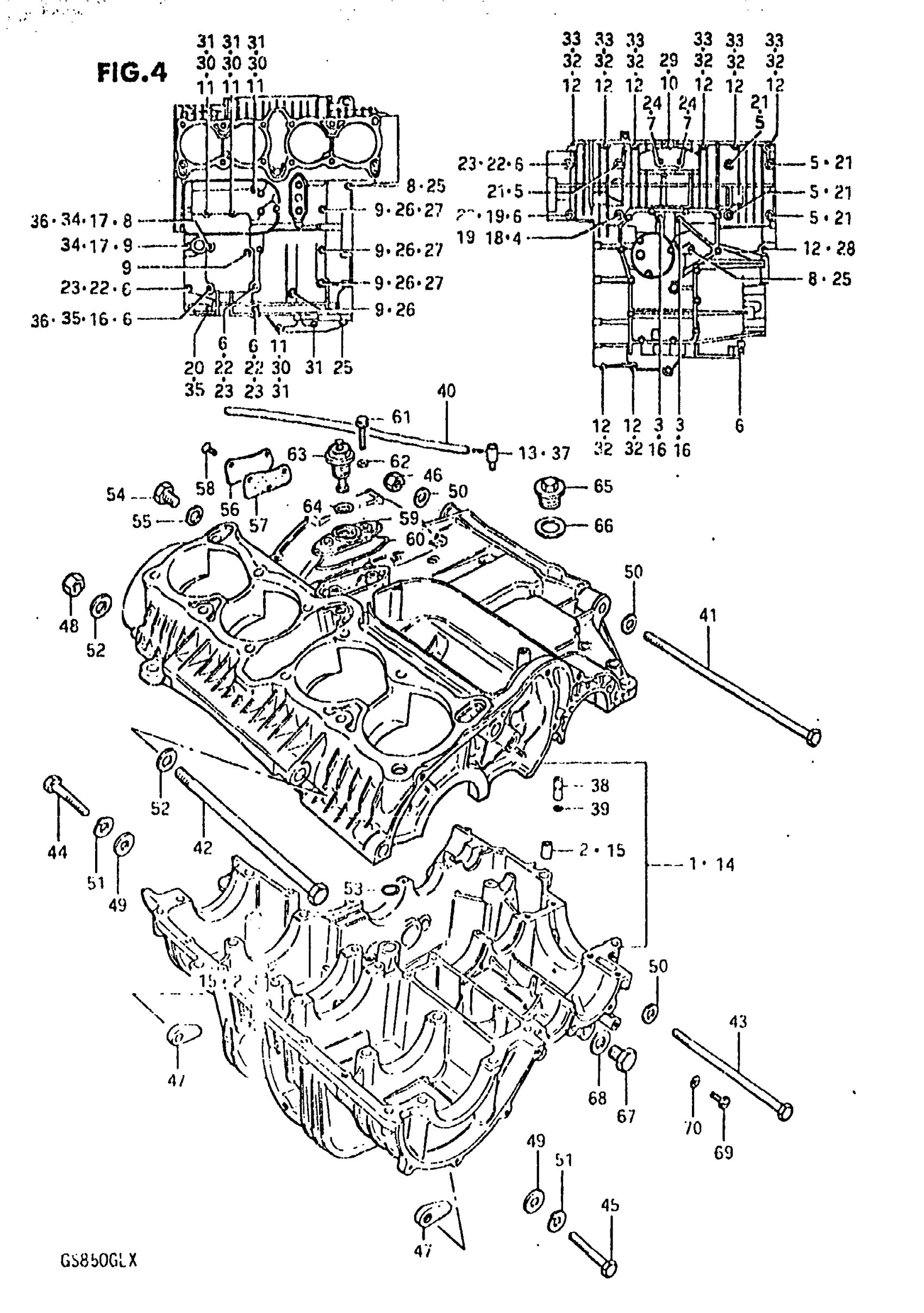

Suzuki GS850GL (1981) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | ~E.NO. 130760; Includes Item(s) 2 - 13 This part replaces 11300-45821.

11300-45822

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8X125) This part replaces 09103-08020.

09103-08106

Unavailable

4

BOLT (8X100) This part replaces 09103-08009.

09103-08070

$5.09

5

BOLT This part replaces 01517-08908.

01550-08907

$5.63

6

BOLT This part replaces 01517-08658.

01550-08657

$5.10

7

BOLT This part replaces 01517-08608.

01550-08607

$3.44

8

BOLT This part replaces 01517-06908.

01550-06907

$5.00

9

BOLT 6X75 This part replaces 01517-06758.

01550-06757

$3.36

10

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.70

11

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.73

12

BOLT This part replaces 01517-06358.

01550-06357

$2.80

13

PLUG, BREATHER

24821-45100

$10.17

14

CRANKCASE SET | E.NO. 130761~

11300-45822

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL X; Includes Item(s) 15 - 39 This part replaces 11300-49840.

11300-49843

Unavailable

15

PIN This part replaces 09206-13001.

04211-13189

$2.19

16

BOLT (8X125) This part replaces 09103-08020.

09103-08106

Unavailable

17

BOLT (8X110)

09103-08046

Unavailable

18

BOLT (8X100) | E.NO. 130761~ This part replaces 09103-08009.

09103-08070

$5.09

19

BOLT (8X100) | MODEL X This part replaces 09103-08009.

09103-08070

$5.09

20

BOLT (8X105) This part replaces 09103-08023.

09103-08097

$3.15

21

BOLT This part replaces 01517-08908.

01550-08907

$5.63

22

BOLT | E.NO. 130761~ This part replaces 01517-08658.

01550-08657

$5.10

23

BOLT | MODEL X This part replaces 01517-08658.

01550-08657

$5.10

24

BOLT This part replaces 01517-08608.

01550-08607

$3.44

25

BOLT This part replaces 01517-06908.

01550-06907

$5.00

26

BOLT 6X75 | E.NO. 130761~ This part replaces 01517-06758.

01550-06757

$3.36

27

BOLT 6X75 | MODEL X This part replaces 01517-06758.

01550-06757

$3.36

28

BOLT This part replaces 01517-06558.

01550-06557

$3.58

29

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.70

30

BOLT (CHROME) | E.NO. 130761~ This part replaces 01517-06458.

01550-06457

$2.73

31

BOLT (CHROME) | MODEL X This part replaces 01517-06458.

01550-06457

$2.73

32

BOLT | E.NO. 130761~ This part replaces 01517-06358.

01550-06357

$2.80

33

BOLT | MODEL X This part replaces 01517-06358.

01550-06357

$2.80

34

NUT This part replaces 08313-11088.

08313-10087

$2.29

35

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

36

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

37

PLUG, BEVEL GEAR BREATHER

24821-45100

$10.17

38

NOZZLE, OIL GALLERY | MODEL X

09364-05005

$4.07

39

O RING, NOZZLE | MODEL X

09280-03003

$1.73

40

HOSE(2X5X600) This part replaces 09343-02016.

09352-20504-600

$6.04

41

NO DESCRIPTION AVAILABLE This part replaces 09100-10074.

09100-10074-XC0

Unavailable

42

SHAFT,RR SWNG P This part replaces 61211-39000.

61211-39002

$28.80

43

BOLT (10x165)

09100-10078

$13.80

44

BOLT This part replaces 01107-10608.

01500-1060A

$4.04

45

BOLT This part replaces 01107-10508.

01500-1050A

$4.12

46

NUT

09159-10011

$2.95

47

NUT

09159-10020

$5.63

48

NUT This part replaces 08319-21128.

08319-2112A

$3.38

49

WASHER

09160-10005

$1.86

50

WASHER This part replaces 08322-11108.

08322-01107

$1.88

51

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

52

WASHER This part replaces 08322-11128.

08322-01127

$1.86

53

O RING

09280-13001

$2.51

54

PLUG This part replaces 09247-14012.

09247-14026

$3.38

55

GASKET

09168-14004

$1.69

56

CAP, OIL GALLERY

11394-45000

Unavailable

57

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

58

SCREW This part replaces 02122-06168.

02122-06167

$1.45

59

HOUSING, OIL PRESSURE SWITCH

16445-45000

Unavailable

60

O RING

16448-45000

$8.37

61

BOLT This part replaces 01517-06258.

01550-06257

$2.31

62

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.01

63

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

$35.73

64

O RING

09280-19001

$1.38

65

PLUG This part replaces 09247-20002.

09248-20003

$6.31

66

GASKET 20.1X27X | MODEL T This part replaces 09168-20001.

09168-20003

$3.22

66

GASKET 20.1X27X | MODEL X This part replaces 09168-20004.

09168-20003

$3.22

67

PLUG, OIL DRAIN This part replaces 09247-14014.

09247-14036

$5.58

68

GASKET

09168-14004

$1.69

69

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.38

70

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.01
