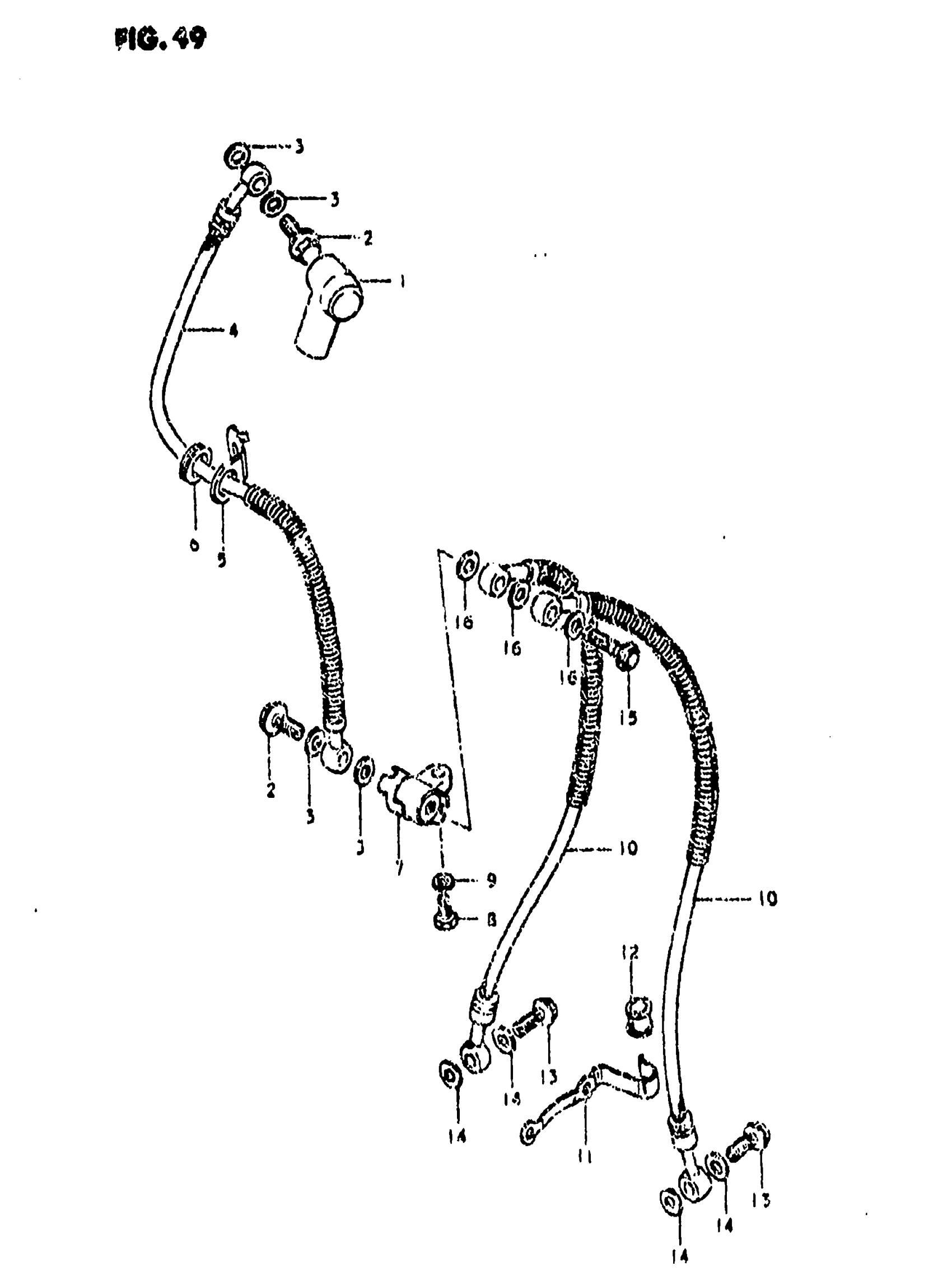

Find the part on the Front Brake Hose diagram for your 1981 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Suzuki GS850G Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT, MASTER CYLINDER

59711-49001

1

$7.70

In stock

2

UNION This part replaces 09360-10007.

09360-10017

2
Out of stock

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

4
Out of stock

4

HOSE, BRAKE NO.1 This part replaces 59480-49000.

59480-49400

1
Out of stock

5

GUIDE, HOSE

59243-31000

1
Out of stock

6

GROMMET This part replaces 09308-14007.

09308-14009

1
Out of stock

7

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

1
Out of stock

8

1

$2.48

In stock

9

1

$2.28

In stock

10

HOSE BRAKE This part replaces 59240-45000.

59240-49400

2
Out of stock

11

CLAMP | MODEL T This part replaces 59268-49000.

59268-49001

2
Out of stock

11

CLAMP, HOSE | MODEL X

59268-49001

2
Out of stock

12

BUSHING

59244-49000

2
Out of stock

13

UNION This part replaces 09360-10007.

09360-10017

2
Out of stock

14

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

4
Out of stock

15

1

$7.38

In stock

16

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

3
Out of stock
