1979 Suzuki GS850G Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1979 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

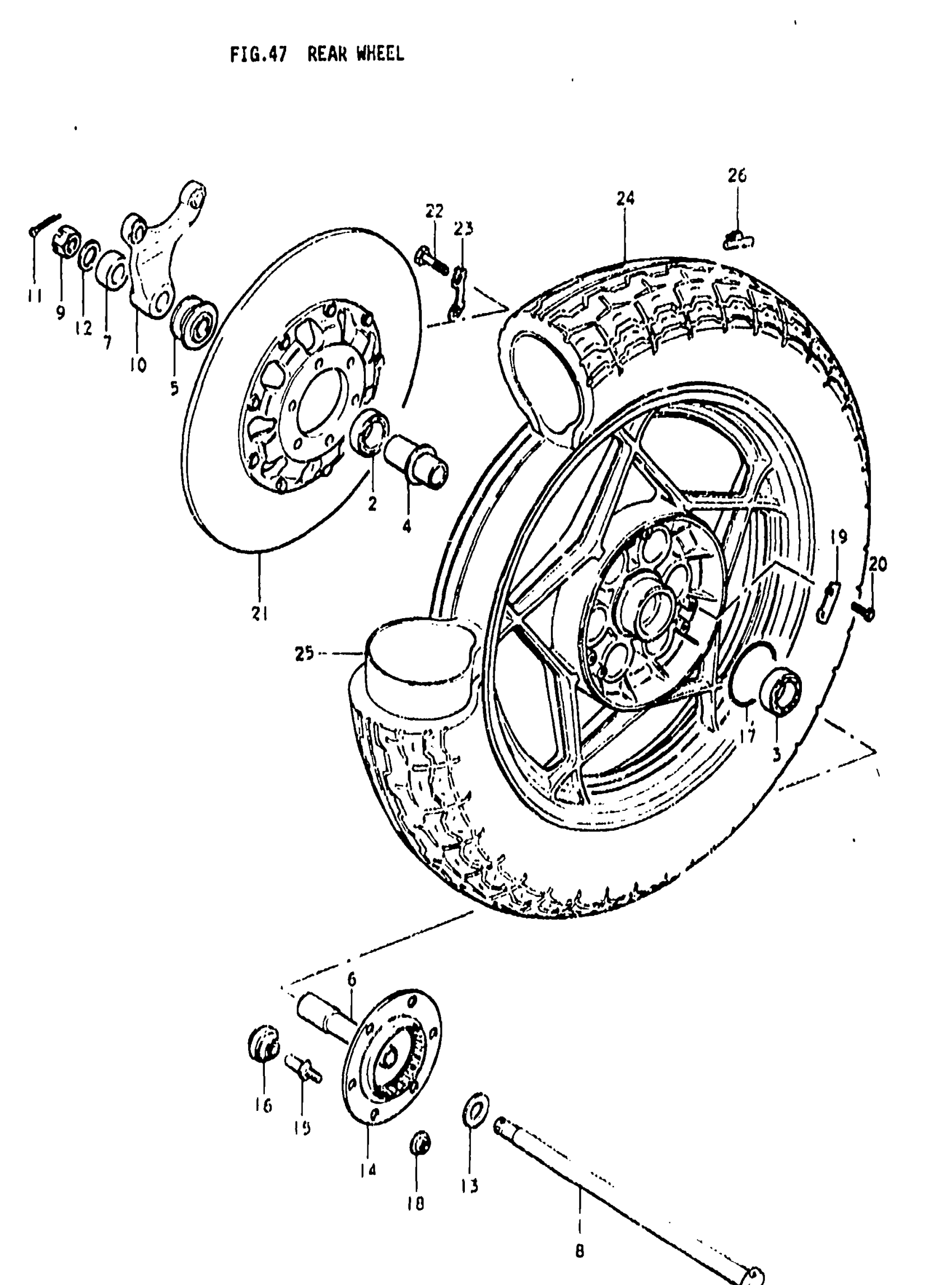

1979 Suzuki GS850G Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR This part replaces 64150-45101.

64100-45810-12U

1
Out of stock

2

BEARING This part replaces 08123-63037.

08123-6303B

1
Out of stock

3

BEARING, LH

08143-63037

1
Out of stock

4

SPACER, BEARING | L:73

64730-45100

1
Out of stock

5

NO DESCRIPTION AVAILABLE | L:23.5 This part replaces 64740-47001.

64740-47002

1
Out of stock

6

SPACER, LH (L:85) | L:85 This part replaces 64772-45100.

64772-45101

1
Out of stock

7

SPACER, RH | 17x33x15.2

09180-17053

1
Out of stock

8

AXLE, REAR

64711-45100

1
Out of stock

9

NUT

09141-16001

1
Out of stock

10

BRACKET, REAR CARIPORS

69721-47001

1
Out of stock

11

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

12

WASHER This part replaces 08322-11168.

08322-01167

1
Out of stock

13

WASHER, LH | 17.5x36x3.2

09160-17018

1
Out of stock

14

JOINT, HUB DRIVEN This part replaces 64681-45100.

64680-45113

1
Out of stock

15

BOLT

64661-45100

—
Out of stock

16

BUSHING

09319-12019

6
Out of stock

17

O RING

09280-65003

1
Out of stock

18

NUT, WHEEL SET This part replaces 09159-10022.

08316-10107

6
Out of stock

19

WASHER

09169-06023

—
Out of stock

20

6

$2.10

In stock

21

NO DESCRIPTION AVAILABLE This part replaces 59210-18401.

59210-18402

1
Out of stock

22

BOLT

09100-08094

6
Out of stock

23

WASHER

09169-08016

3
Out of stock

24

TIRE This part replaces 65100-45135.

65100-45115

—
Out of stock

25

TUBE, INNER

65200-49010

1
Out of stock

26

BALANCER, WHEEL NO.2 | 0~3)20G This part replaces 55411-45100.

55412-17G00

1
Out of stock

26

BLANCER | 0~3)30G

55412-45100

—
Out of stock
