1979 Suzuki GS850G Front Caripers Diagram

← All diagrams

Find the part on the Front Caripers diagram for your 1979 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

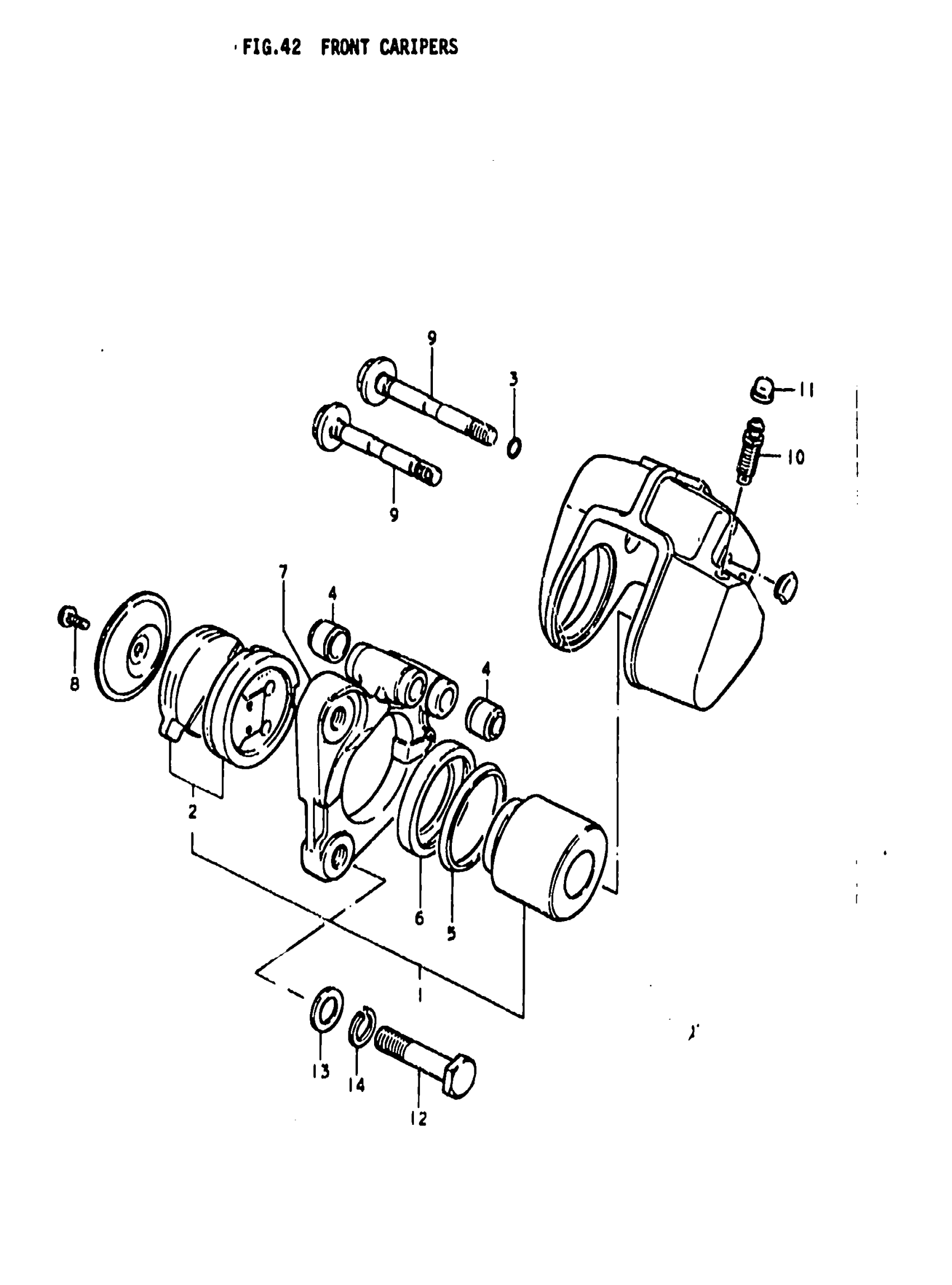

1979 Suzuki GS850G Front Caripers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CARIPERS ASSY, FRONT RH

59100-45100

1
Out of stock

0

CARIPERS ASSY, FRONT LH | Includes Item(s) 1 - 11

59300-45100

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 59100-45870.

59100-45871

2
Out of stock

2

PAD SET This part replaces 59300-45890.

59300-44861

2
Out of stock

3

O RING

59111-45001

2
Out of stock

4

DUST COVER, AXLE

59312-45000

8
Out of stock

5

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

2
Out of stock

6

BOOT, PISTON

59308-45000

2
Out of stock

7

HOLDER, CARLPERS RH

59150-44003

1
Out of stock

7

HOLDER, CARLPERS LH

59350-44003

1
Out of stock

8

SCREW This part replaces 02112-06128.

02112-06127

2
Out of stock

9

AXLE, CARLPERS

59305-45002

4
Out of stock

10

BLEEDER

59121-18410

2
Out of stock

11

CAP, BLEEDER This part replaces 52474-60020.

55156-66310

2
Out of stock

12

BOLT (10X38) This part replaces 09104-10007.

09104-10029

4
Out of stock

13

WASHER This part replaces 08322-21108.

08322-01107

4
Out of stock

14

LOCK WASHER This part replaces 08321-21108.

08321-01107

4
Out of stock
