1979 Suzuki GS850G Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1979 Suzuki GS850G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

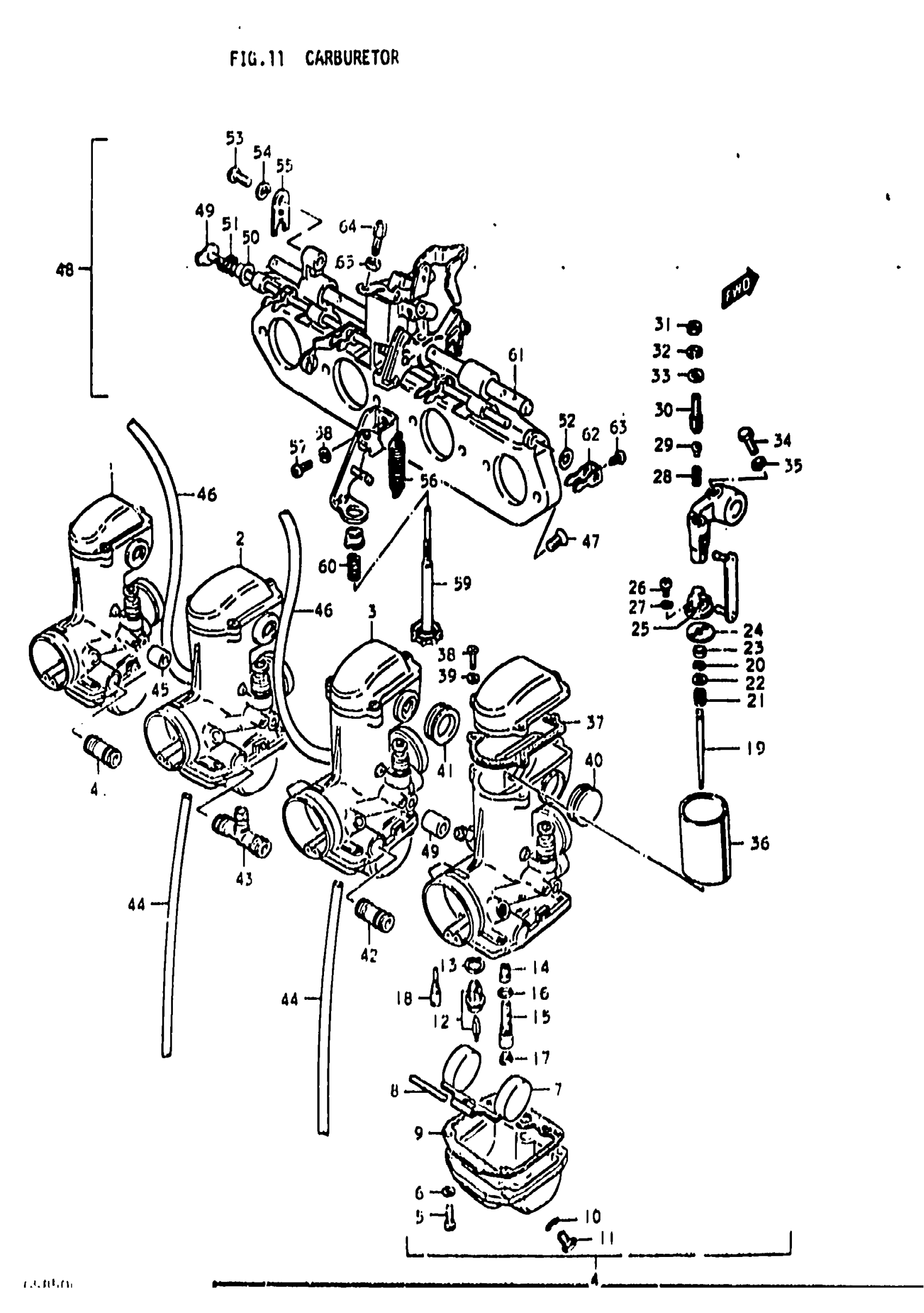

1979 Suzuki GS850G Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CARBURETOR ASSY | Includes Item(s) 1 - 65

13200-45100

1
Out of stock

1

CARBURETOR ASSY, NO.1 | LH

13201-45100

1
Out of stock

2

CARBURETOR ASSY, NO.2 | CENTER LH

13202-45100

1
Out of stock

3

CARBURETOR ASSY, NO.3 | CENTER RH

13203-45100

1
Out of stock

4

CARBURETOR ASSY, NO.4 | RH

13204-45100

1
Out of stock

5

16

$1.34

In stock

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

16
Out of stock

7

FLOAT

13252-43010

4
Out of stock

8

.PIN, FLOAT

13254-01010

4

$4.80

In stock

9

GASKET This part replaces 13251-43011.

13251-43010

4
Out of stock

10

4

$4.33

In stock

11

SCREW

13247-45010

4
Out of stock

12

VALVE, NEEDLE This part replaces 13370-45010.

13370-18111

4
Out of stock

13

GASKET

13392-58600

4
Out of stock

14

JET, NEEDLE | 0-4

09494-00208

4
Out of stock

15

PIPE, BREADER

13385-45010

4
Out of stock

16

4

$4.33

In stock

17

.JET (#102.5) | #102.5

09491-20012

4
Out of stock

18

JET, PILOT | #15

09492-15005

4
Out of stock

19

NEEDLE, JET | 5DL36-3

13383-45030

4
Out of stock

20

CLIP, NEEDLE

13394-10010

4

$4.76

In stock

21

SPRING

13388-47010

4

$9.17

In stock

22

PLATE

13382-47010

4

$3.65

In stock

23

RING

13387-47010

4

$7.41

In stock

24

PLATE

13581-47010

4
Out of stock

25

BRACKET

13398-45010

—
Out of stock

26

SCREW This part replaces 02111-03148.

02112-0316B

8
Out of stock

27

WASHER,LOCK This part replaces 08321-21038.

09162-03001

8
Out of stock

28

SPRING

13543-45010

4
Out of stock

29

PIN

13544-43010

4
Out of stock

30

ADJUSTER

13548-45010

4
Out of stock

31

NUT This part replaces 08310-11058.

08310-00057

4
Out of stock

32

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

33

WASHER This part replaces 08322-21058.

08322-01057

4
Out of stock

34

BOLT This part replaces 01104-05168.

01500-0516B

4
Out of stock

35

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

36

VALVE, THROTTLE | CA:1.5

13551-45030

4
Out of stock

37

GASKET

13266-43010

4
Out of stock

38

12

$1.34

In stock

39

LOCK WASHER This part replaces 08321-21048.

08321-0104A

12
Out of stock

40

CAP

13678-43010

2
Out of stock

41

SEAL

13556-45010

6
Out of stock

42

NIPPLE

13685-45030

2
Out of stock

43

NIPPLE

13685-45040

1
Out of stock

44

HOSE

13683-45070

4
Out of stock

45

HOSE(6X10X600) | 6x10x16 This part replaces 13683-33110.

09352-60104-600

2
Out of stock

46

HOSE(4.5X8.5X60 | 5x8x450 This part replaces 13683-45050.

09355-45001-600

3
Out of stock

47

SCREW (6X14) This part replaces 02122-06148.

09126-06007

8
Out of stock

48

CONTROL ASSY

13210-45050

—
Out of stock

49

SHAFT, STARTER

13410-49020

1
Out of stock

50

WASHER

13432-49020

1
Out of stock

51

SPRING

13437-49020

1
Out of stock

52

WASHER

13615-45010

1

$3.67

In stock

53

SCREW This part replaces 02112-05168.

02112-05167

1
Out of stock

54

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

55

PLATE

13557-33110

1
Out of stock

56

SPRING, THROTTLE RETURN

13573-45010

1
Out of stock

57

SCREW This part replaces 02112-05168.

02112-05167

2
Out of stock

58

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

59

ADJUSTER,THROTTLE STOP This part replaces 13267-45010.

13267-47030

1
Out of stock

60

SPRING

13268-33110

1
Out of stock

61

SHAFT, THROTTLE

13550-43010

1
Out of stock

62

LEVER, STARTER

13422-45030

3
Out of stock

63

SCREW

13605-31210

4
Out of stock

64

ADJUSTER

13577-48110

1
Out of stock

65

NUT

13661-16600

1
Out of stock
