1983 Suzuki GS750T Rear Wheel Diagram

← All diagrams

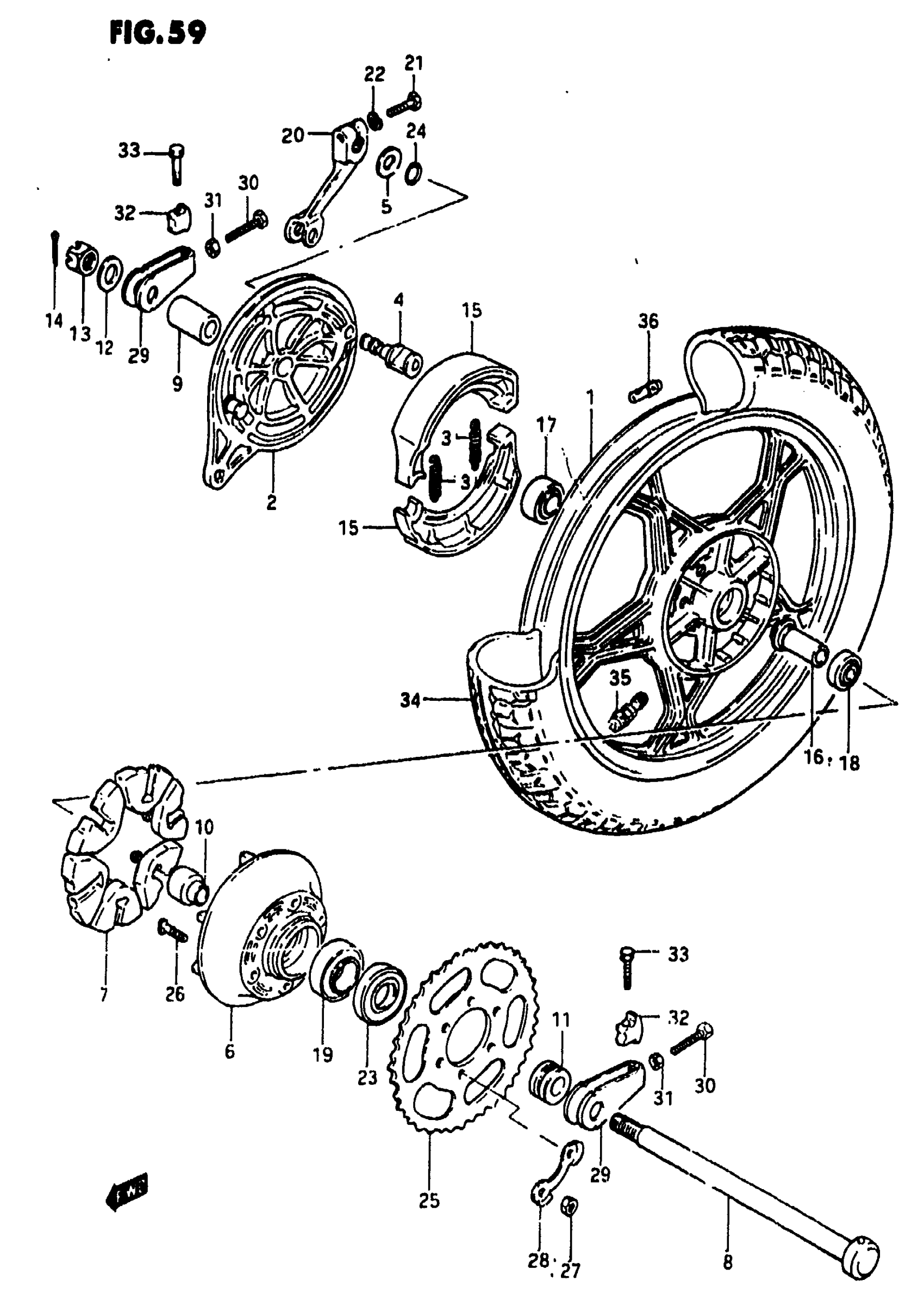

Find the part on the Rear Wheel diagram for your 1983 Suzuki GS750T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS750T Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (MT2.50x17)

64150-47401-291

1
Out of stock

2

PANEL

64210-45900

1
Out of stock

3

SPRING

55420-30000

2
Out of stock

4

CAM, BRAKE

54440-45900

1
Out of stock

5

1

$2.30

In stock

6

DRUM, SPROCKET This part replaces 64611-31001.

64611-31003

6
Out of stock

7

1

$11.15

In stock

8

AXLE,REAR This part replaces 64711-49000.

64711-4900V

1
Out of stock

9

SPACER, RH

09180-20084

1
Out of stock

10

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

1
Out of stock

11

SPACEWR, LH

09180-20054

1
Out of stock

12

WASHER (17x30x3.2)

09160-19008

1
Out of stock

13

NUT This part replaces 08314-31188.

08314-3118A

1
Out of stock

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

15

SHOE SET, BRAKE This part replaces 64410-31000.

64400-31830

2
Out of stock

16

SPACER, BEARING

64730-45900

1
Out of stock

17

BEARING This part replaces 08123-62047.

08123-6204B

1
Out of stock

18

1

$22.99

In stock

19

1

$25.11

In stock

20

LEVER, BRAKE CAM

64451-45900

1
Out of stock

21

1

$3.17

In stock

22

1

$2.28

In stock

23

OIL SEAL

09285-33001

1
Out of stock

24

O RING

09280-16005

1

$2.36

In stock

25

SPROCKET, REAWR (NT:41)

64511-45001

1
Out of stock

26

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

27

NUT This part replaces 09140-10026.

09140-10026-XC0

6
Out of stock

28

WASHER

09169-10007

3
Out of stock

29

ADJUSTER, CHAIN This part replaces 61410-45201.

61410-31001

2
Out of stock

30

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

31

2

$1.93

In stock

32

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

2
Out of stock

33

2

$4.35

In stock

34

TIRE (4.50H17WLR) | IRC

65100-45915

1
Out of stock

34

TIRE (4.50H17WLR) | DUNLOP

65100-45955

1
Out of stock

35

1

$24.92

In stock

36

BALANCER (2) (30G)

55412-45100

—
Out of stock

36

1

$1.35

In stock
