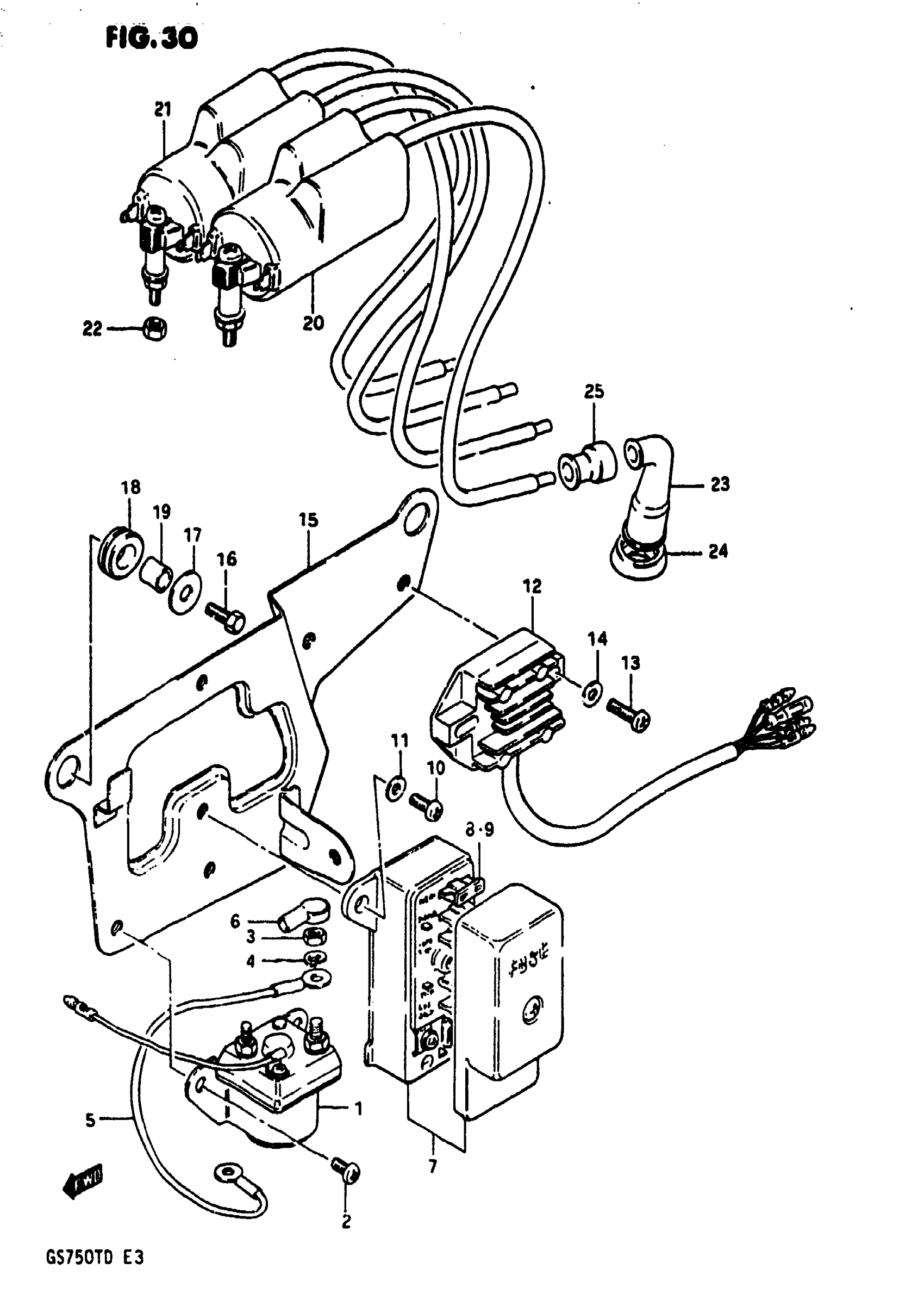

Suzuki GS750T (1983) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$67.24

2

SCREW This part replaces 02112-06108.

02112-06107

$1.45

3

.NUT This part replaces 08310-22068.

08310-00067

$1.83

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

5

LEAD WIRE, (-) | MODEL Z This part replaces 33850-44110.

33850-03201

$13.20

5

LEAD WIRE, (-) | MODEL D This part replaces 33850-49002.

33850-03201

$13.20

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$7.40

7

BOX ASSY,FUSE | Includes Item(s) 8 - 9 This part replaces 36740-49400.

36740-45D00

Unavailable

8

FUSE (10A)

09481-10101

$0.68

9

FUSE (15A)

09481-15101

$2.77

10

SCREW This part replaces 02112-06128.

02112-06127

$1.83

11

WASHER This part replaces 08322-21068.

08322-01067

$1.86

12

RECTIFIER ASSY This part replaces 32800-47120.

32800-47121

Unavailable

13

SCREW This part replaces 02112-06208.

02112-06207

$1.77

14

WASHER This part replaces 08322-21068.

08322-01067

$1.86

15

PLATE, PARTS HOLDER

47410-45900

Unavailable

16

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

17

WASHER This part replaces 09160-06063.

09160-06054

$1.62

18

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

19

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.46

20

COIL ASSY, IGNI This part replaces 33410-49210.

33410-31311

$210.93

21

COIL ASSY, IGNI This part replaces 33420-49210.

33410-31311

$210.93

22

.NUT This part replaces 08310-11068.

08310-00067

$1.83

23

CAP, SPARK PLUG

33510-45010

$23.52

24

SEAL, SPARK PLUG This part replaces 33541-32410.

33541-38210

$4.40

25

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$3.97
