1983 Suzuki GS750T Crankcase Diagram

← All diagrams

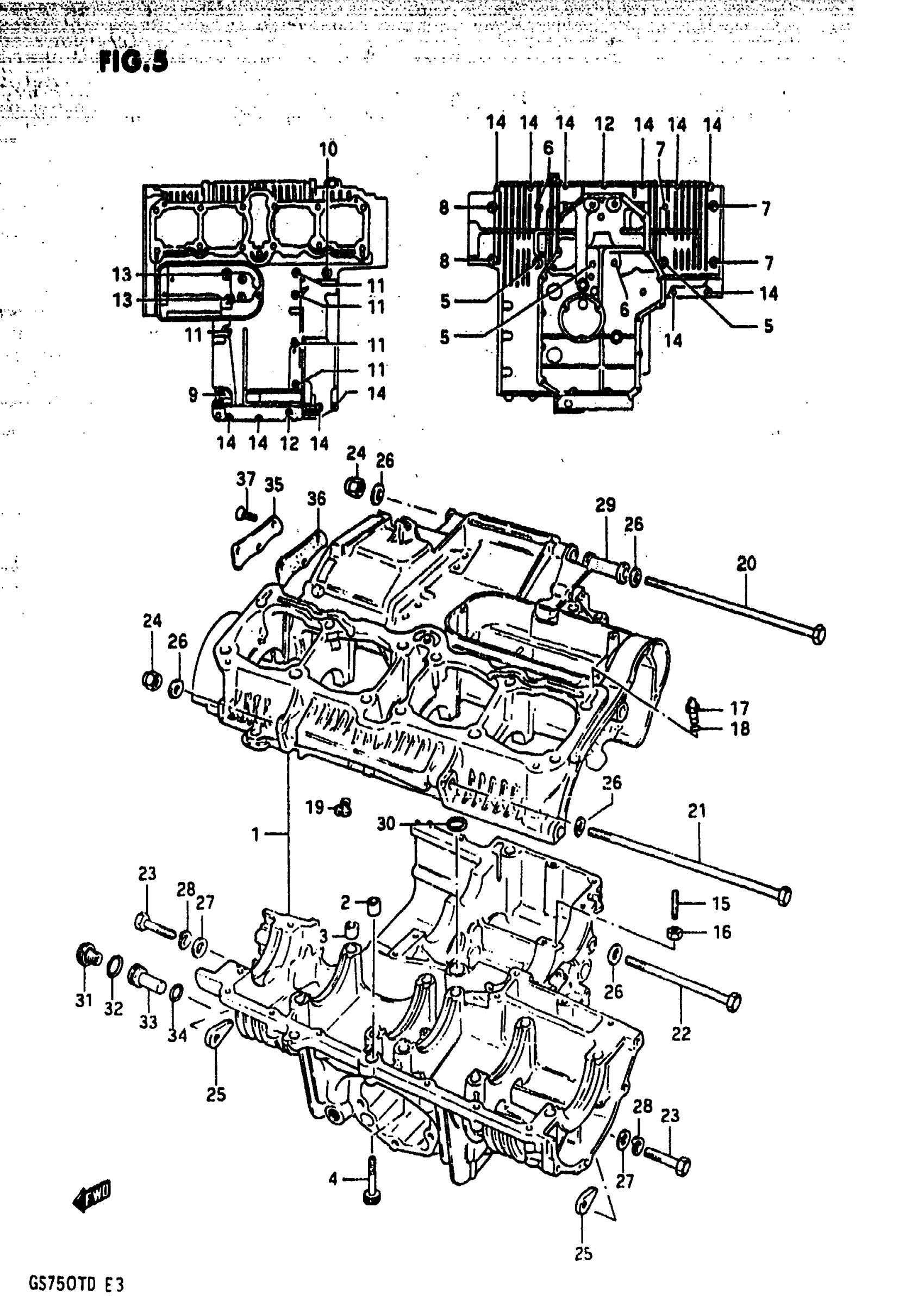

Find the part on the Crankcase diagram for your 1983 Suzuki GS750T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS750T Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET | Includes Item(s) 2 - 19

11300-45832

1
Out of stock

2

PIN

09206-13004

2
Out of stock

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

2
Out of stock

4

BOLT This part replaces 09106-08015.

07130-0860B

2
Out of stock

5

BOLT(8x140)

09103-08040

3
Out of stock

6

BOLT (8X110) This part replaces 09103-08024.

09103-08134

2
Out of stock

7

BOLT This part replaces 01517-08958.

01550-08957

3
Out of stock

8

BOLT This part replaces 01517-08708.

01550-08707

2
Out of stock

9

BOLT This part replaces 01517-08658.

01550-08657

1
Out of stock

10

BOLT (6x95)

01517-06958

1
Out of stock

11

BOLT This part replaces 01517-06808.

01550-06807

3
Out of stock

12

BOLT This part replaces 01517-06608.

01550-06607

2
Out of stock

13

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

2
Out of stock

14

BOLT This part replaces 01517-06408.

01550-06407

12
Out of stock

15

12

$2.58

In stock

16

NUT This part replaces 08316-16068.

08319-31067

1
Out of stock

17

JET, OIL GALL CYLINDER

09493-24008

2
Out of stock

18

O RING

09280-03003

2
Out of stock

19

JET, OIL GALL MISSION

09493-24005

1
Out of stock

20

BOLT (10x230)

09100-10140

1
Out of stock

21

ENGINE MOUNT BO This part replaces 09101-10010.

09101-10010-XC0

1
Out of stock

22

BOLT (10x165)

09100-10078

1
Out of stock

23

BOLT This part replaces 01107-10608.

01500-1060A

2
Out of stock

24

NUT

09159-10011

3
Out of stock

25

NUT

09159-10020

2
Out of stock

26

WASHER This part replaces 08322-11108.

08322-01107

6
Out of stock

27

WASHER

09160-10005

2
Out of stock

28

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

29

SPACER (L:65) This part replaces 11610-49000.

11610-49300

1
Out of stock

30

O RING, OIL GALLERY

09280-13001

1
Out of stock

31

PLUG, OIL GALLERY

09247-18001

1

$9.60

In stock

32

O RING

09280-18004

1

$5.01

In stock

33

PIN

11329-45400

1
Out of stock

34

O RING (D:1.9,ID:9.8) This part replaces 09280-10005.

09280-10016

1
Out of stock

35

CAP, OIL GALLERY

11394-45000

1
Out of stock

36

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

1
Out of stock

37

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock
