1983 Suzuki GS750S Wiring Harness Diagram

← All diagrams

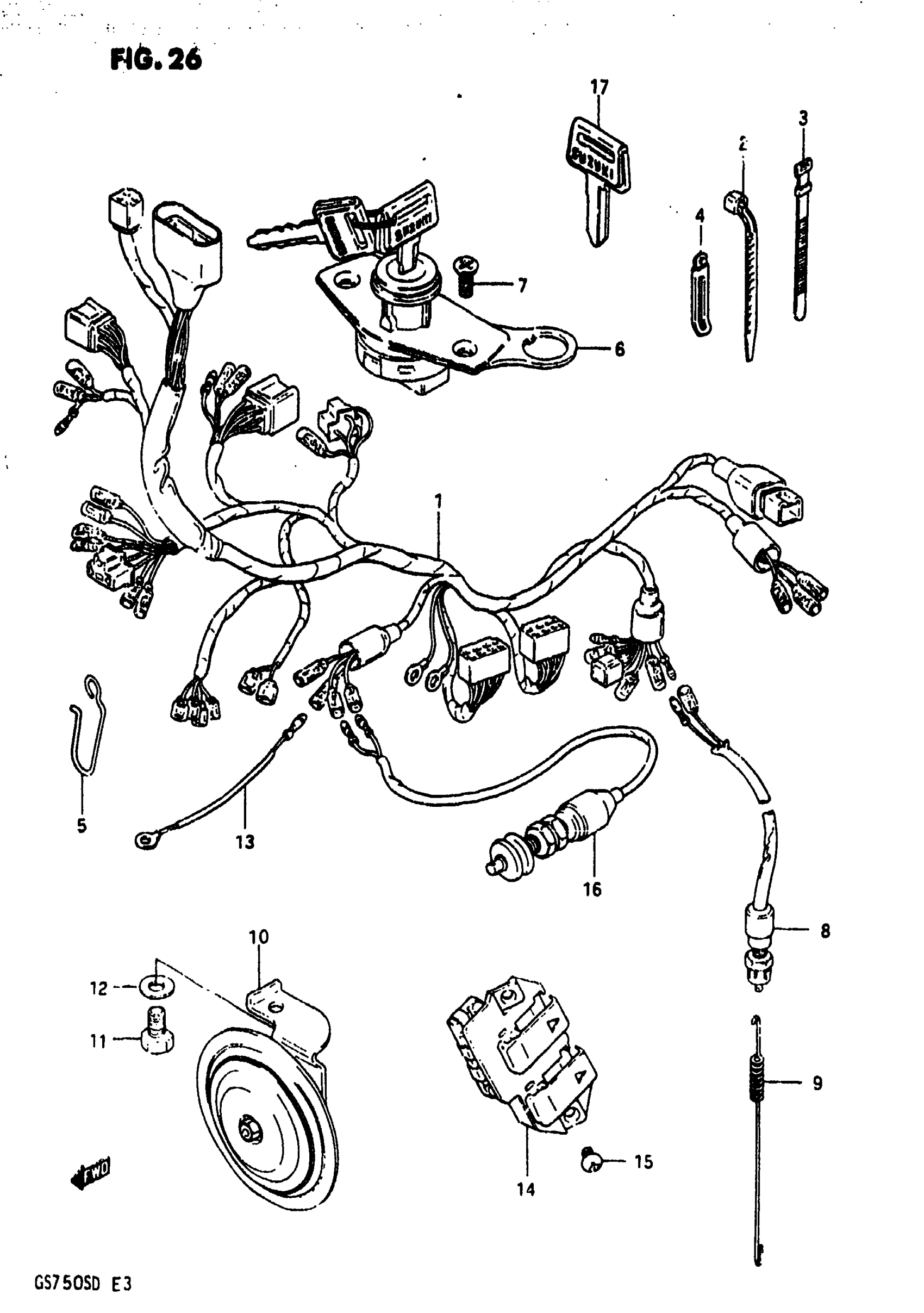

Find the part on the Wiring Harness diagram for your 1983 Suzuki GS750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS750S Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS

36610-49350

1
Out of stock

2

CLAMP (L:95)

09407-11401

4
Out of stock

2

CLAMP (L:125)

09407-14403

2
Out of stock

2

CLAMP (L:165)

09407-18402

3
Out of stock

3

CLAMP (L:125) This part replaces 09407-08401.

09407-14403

2
Out of stock

4

CLAMP This part replaces 09404-08401.

09404-08420

1
Out of stock

4

CLAMP This part replaces 09404-06401.

09404-06039

1
Out of stock

4

CLAMP This part replaces 09404-06412.

09404-06039

2
Out of stock

4

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

3
Out of stock

4

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

1
Out of stock

5

GUIDE, HARNESS This part replaces 36618-49300.

36618-49302

1
Out of stock

6

SWITCH ASSY, IGNITION

37110-49310

1
Out of stock

7

SCREW This part replaces 02122-05108.

02122-05107

2
Out of stock

8

SWITCH, REAR BRAKE LAMP This part replaces 37740-04572.

37740-48071

1
Out of stock

9

SPRING

09443-06027

1
Out of stock

10

HORN

38500-49320

1
Out of stock

11

BOLT This part replaces 01107-08128.

01500-08127

2
Out of stock

12

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

13

LEAD WIRE, PRESSURE SWITCH

36851-45410

1
Out of stock

14

SWITCH, SIDE COVER LEFT

37850-49300

1
Out of stock

15

NO DESCRIPTION AVAILABLE This part replaces 03241-04088.

03241-0408A

2
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 37840-49300.

37840-49301

1
Out of stock

17

KEY, BLANK | OPT

37146-49300

1
Out of stock
