1979 Suzuki GS750L Clutch Release Diagram

← All diagrams

Find the part on the Clutch Release diagram for your 1979 Suzuki GS750L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

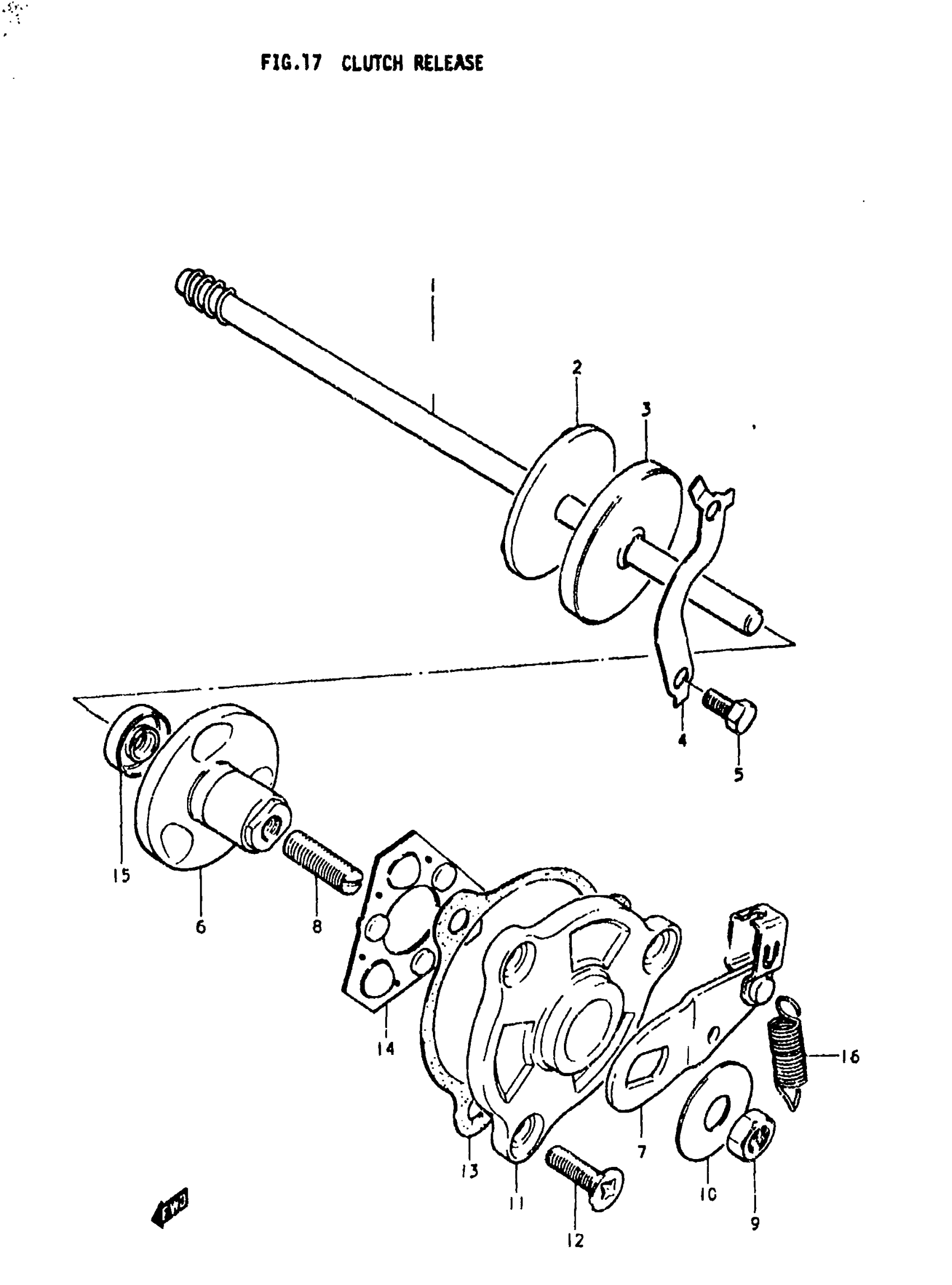

1979 Suzuki GS750L Clutch Release Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD, PUSH

23110-45001

1
Out of stock

2

HOLDER, PUSH ROD

23115-45000

1
Out of stock

3

OIL SEAL

09283-08001

1
Out of stock

4

HOLDER, OIL SEAL

23117-45000

1
Out of stock

5

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

6

BALL GUIDE, RELEASE OUT@@

23211-34001

1
Out of stock

7

ARM, RELEASE

23220-45000

1
Out of stock

8

SCREW, RELEASE ADJUSTING

09134-08006

1
Out of stock

9

1

$1.93

In stock

10

WASHER | 8.5x26x1.2

09160-08032

1
Out of stock

11

BALL GUIDE, RELEASE INNER

23231-34001

1
Out of stock

12

SCREW This part replaces 02122-06208.

02122-0620A

3
Out of stock

13

GASKET,BALL GUI This part replaces 23291-34000.

23291-34010

1
Out of stock

14

BALL, RELEASE This part replaces 23250-31001.

23250-31003

1
Out of stock

15

DUST SEAL

09285-08006

1
Out of stock

16

SPRING

09443-08001

1
Out of stock
