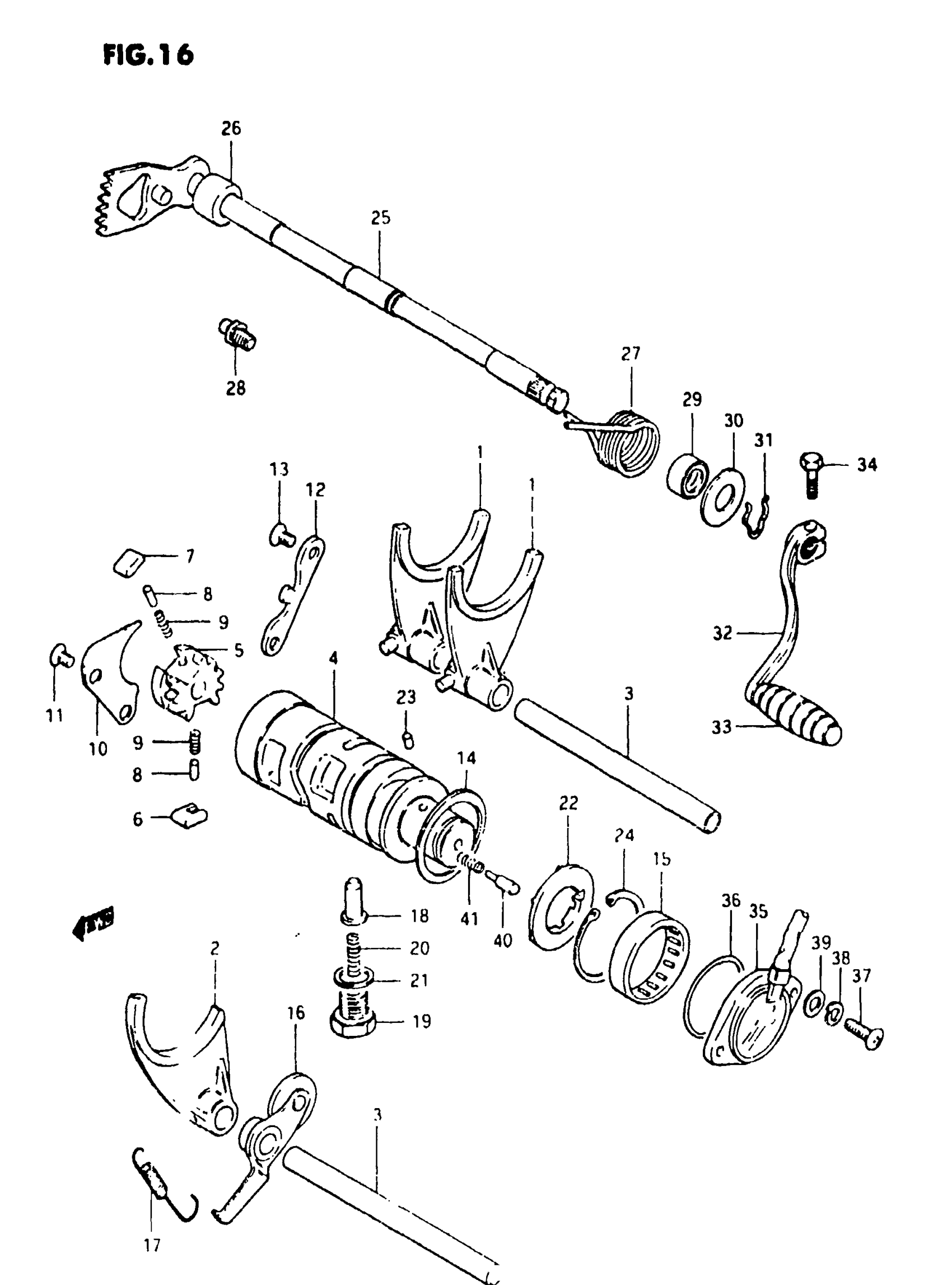

Suzuki GS750E (1982) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, SHIFTING

25211-34000

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 25231-34000.

25231-34X00

Unavailable

3

SHAFT, SHIFT CA This part replaces 25411-49200.

25411-33301

$21.17

4

CAM, GEAR SHIFTING

25310-45400

Unavailable

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$30.40

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$6.61

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$6.80

8

PIN

09261-05003

$1.69

9

SPRING

09440-04003

$1.48

10

LIFTER, PAWL This part replaces 25331-49200.

25331-49201

Unavailable

11

SCREW This part replaces 02122-06128.

02122-06127

$1.83

12

GUIDE, CAM

25341-18000

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.83

14

WASHER

09160-40001

Unavailable

15

BEARING

09263-25018

$19.30

16

STOPPER, CAM

25350-45400

Unavailable

17

SPRING

09443-08019

Unavailable

18

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$13.50

19

HOLDER, STOPPER

25354-30000

$10.35

20

SPRING

09440-06020

$1.79

21

GASKET

09168-14004

$1.69

22

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

$23.08

23

PIN This part replaces 06211-04063.

04221-04069

$2.30

24

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

$1.09

25

SHAFT, GEAR SHIFTING

25510-45400

Unavailable

26

SPACER

09180-12068

$2.63

27

SPRING

09444-26017

$5.00

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

30

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.99

31

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.77

32

LEVER ASSY, SHIFTING | Includes Item(s) 33

25600-49000

Unavailable

33

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.42

34

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.55

35

BODY, GEAR SHIFTING SWITCH

37720-45100

$113.83

36

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.31

37

SCREW This part replaces 02112-05208.

02112-05207

$1.97

38

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

39

WASHER This part replaces 08322-21058.

08322-01057

$1.86

40

CONTACT

09209-05011

$2.02

41

SPRING

09440-04010

$1.52
