1982 Suzuki GS750E Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1982 Suzuki GS750E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

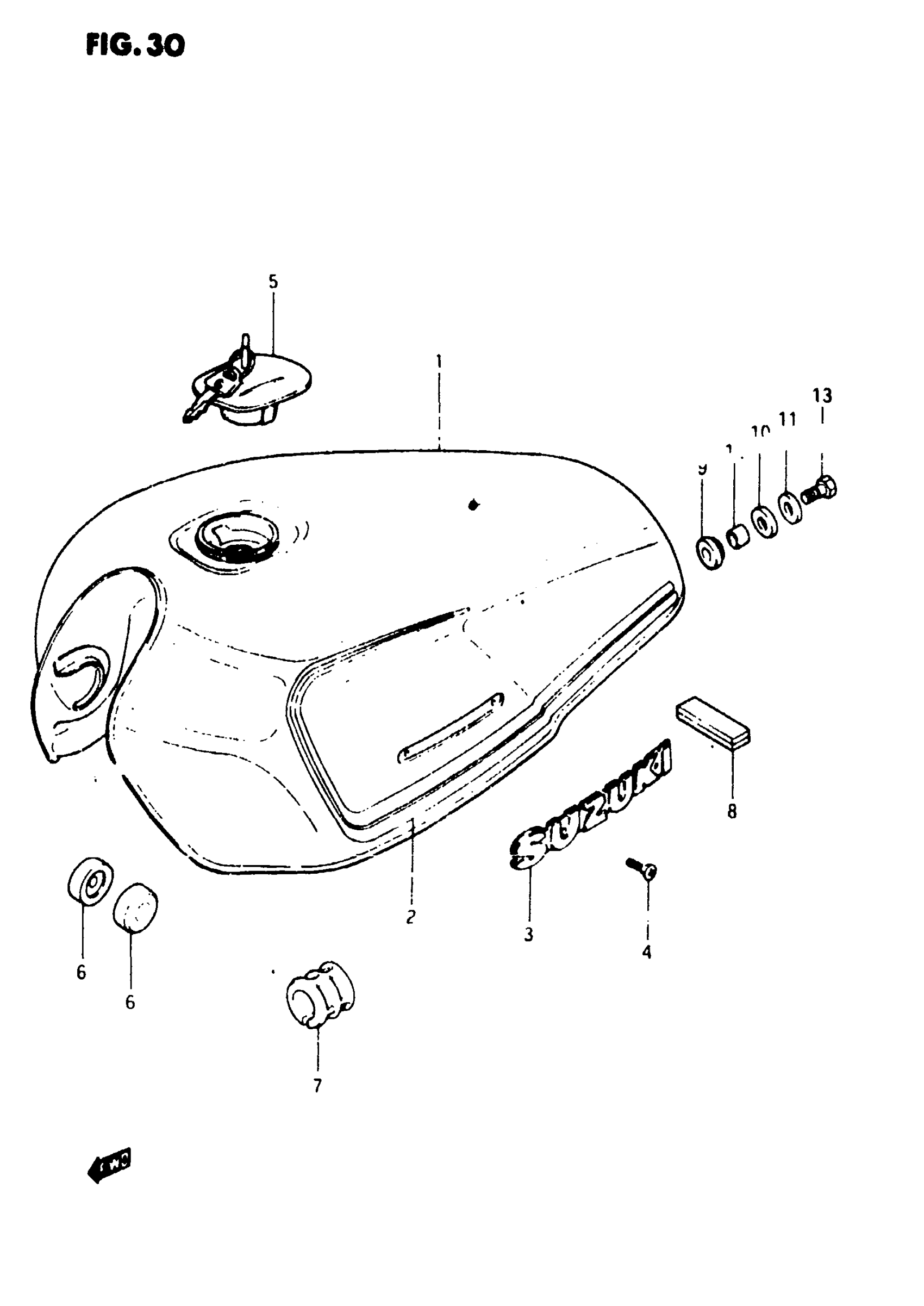

1982 Suzuki GS750E Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 44100-45480-13Z.

44110-49223-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-45480-10S.

44110-49223-13L

1
Out of stock

2

TAPE SET

68110-45470-81P

1
Out of stock

3

EMBLEM

68111-11400

2
Out of stock

4

SCREW This part replaces 02132-03065.

02122-0306B

4
Out of stock

5

CAP SET,FUEL TA This part replaces 44200-49703.

44200-49811

1
Out of stock

6

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

7

CUSHION, FRONT

44542-49200

2
Out of stock

8

CUSHION FUEL TA This part replaces 09329-01005.

09329-01008

1
Out of stock

9

CUSHION, REAR NO.1 This part replaces 09320-12010.

09320-12013

1
Out of stock

10

CUSHION, REAR NO.2 This part replaces 09320-12023.

09320-12017

1
Out of stock

11

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

1
Out of stock

12

SPACER

09180-08067

1
Out of stock

13

BOLT This part replaces 01107-08308.

01500-08307

1
Out of stock
